Section 3: Scale Installation
11/10 13 51233 Rev. 4
Calibration Steps
Adjust the analog interface instrument to the platform.
 Adjust all the corners to within one (1) division of each other at 25% of
rated capacity.
 Follow the appropriate instrument service manual to ensure a proper calibration.
STEPS

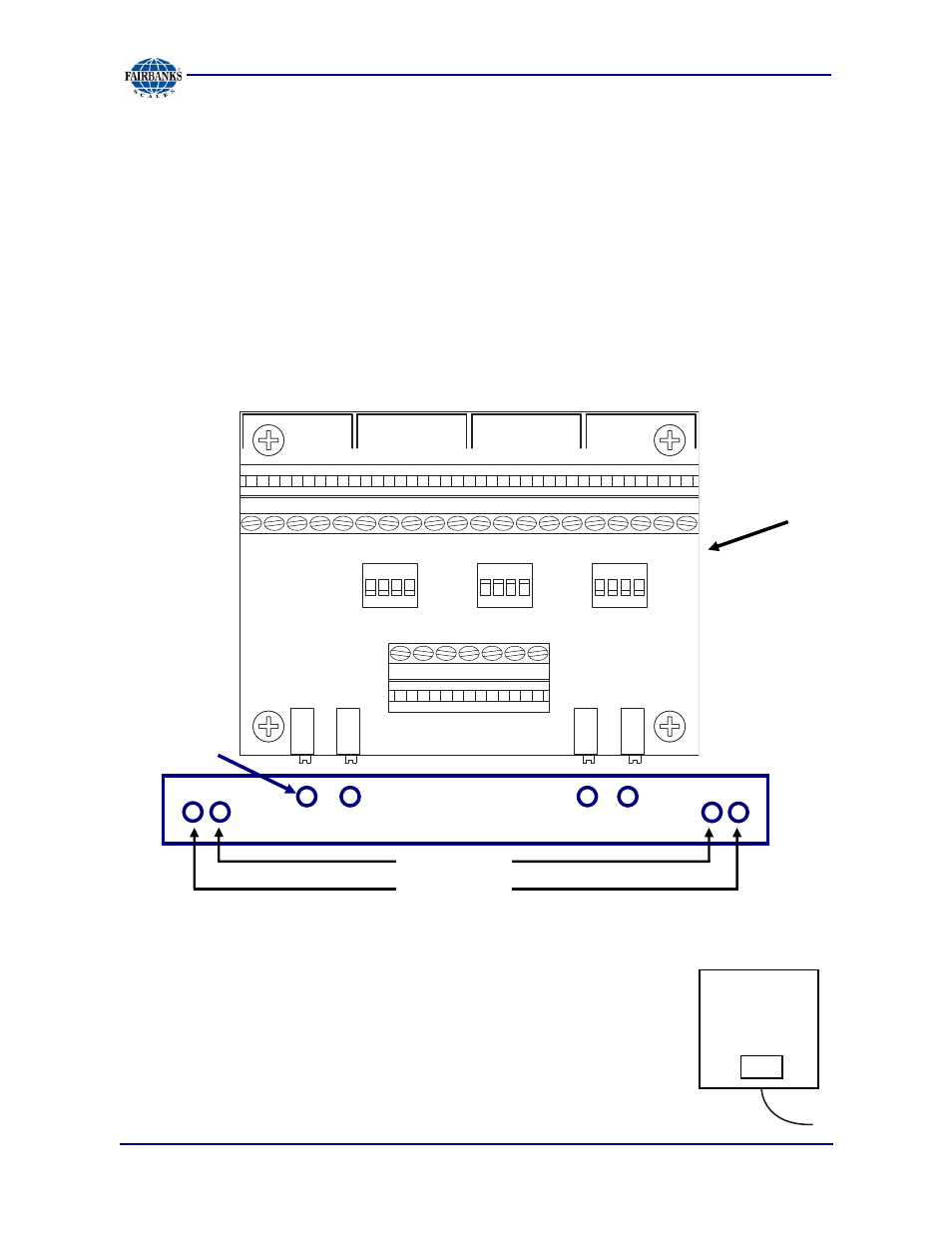

1. Remove the two inside bolts on the side of the scale and remove access panel,
exposing the quick-access potentiometers.
─ Total number of turns is twenty.
2. Identify the platform corner numbers.
3. Place a concentrated weight ( 25% of platform capacity) on
corner #1, then move it to #2, #3 and #4, noting the displayed
reading on each corner.
