AT-9748TS/XP | Managed L3 Stackable Gigabit Ethernet Switch w/10GbE Uplinks
Management
The AT-9748TS/XP have an integrated manage-
ment agent, which provides an embedded web
server, SNMP, RMON, console telnet capabilities.
Availability
The AT-9748TS/XP supports stacking of up
to8 units in a highly resilient ring-architecture
via integrated rear 10-Gbps stacking ports.
Additional protection from down-time comes
in the form of an optional redundant power
supply, 802.3ad Link Aggregation, 802.1d
Spanning Tree, 802.1w Rapid Spanning Tree
and 802.1s Multiple Spanning Tree.
Features
QoS
Eight priority queues per port
Classification based on
- IEEE 802.1p
- MAC SA/DA
- TOS
- IP Destination address
- TCP/UDP Destination port
- DSCP
Full QoS for multimedia applications
Wirespeed Layer 2 to 3 filtering
Wirespeed Layer 2 switching
Wirespeed Layer 3 IP routing
VLANs
VLANs 4,000 VLANs (256 Dynamic)
802.1Q
GARP Support
GVRP Support
Ports
10/100/1000T Shielded RJ45
SFP bays for Fiber connections
Routing
IP RIP v1/v2
OSPF
VRRP
IP Fragmentation support
IP multi-netting
Floating static route
IP Multicast
IGMP v1/v2
IGMP Snooping
DVMRP
PIM DM
Broadcast Storm Control
Spanning Tree Support
IEEE 802.1D
IEEE 802.1W Rapid Spanning Tree
IEEE 802.1S per VLAN Multiple spanning tree
Trunking
IEEE 802.3ad link aggregation (LACP)
Static Mode Trunking
Trunk groups up to 32 groups, up to 8 ports each
group
Features
Performance
176Gbps switching fabric, 131Mpps forwarding rate
MAC addresses 16,000
VLANs 4,000
VLANs (256 Dynamic)
Auto-negotiation speed and duplex
Auto-MDI/MDI-X
Trunk groups up to 32 groups, up to 8 ports each group
L3 Host IP Table up to 3,000 entries
IP Multicast Table support 256 IP multicast table
SDRAM Memory 256MB
Buffer Memory 4MB
Flash Memory 16MB
Reliability
AT-9748TS/XP MTBF: 94,000 hours
Interface Connections
48 port 10/100/1000T Shielded RJ45
SFP COMBO bays for Fiber connections
10GbE Uplink
Modular uplink bay for optional 2 x 10GbE uplink on
rear panel
802.3ae Compliant
Full-duplex operation
Network Management
Web-based management
SNMP v1
SNMP v2c
SNMP v3
RMON support 4 Groups (Statistics, History,Alarms,
Events)
RS232 DB9 (Fimale) console access for local or remote
out of band management
Telnet
TFTP upgrade
Command Line Interface (CLI)
Traffic Segmentation
Bandwidth control (1Mbps increments)
Support SYSLOG
Support Port Security
Web GUI Traffic Monitoring
Web MAC address Browsing
SNTP support
Single IP Management v1.0
Port Description
CPU Utilization Monitoring
Dual Images support
SNMP Trap on MAC address Notification
Port mirroring
Configuration
Telnet Server
TFTP Client
BootP Client
DHCP Client
DHCP Relay agent
BootP Relay
DNS Relay

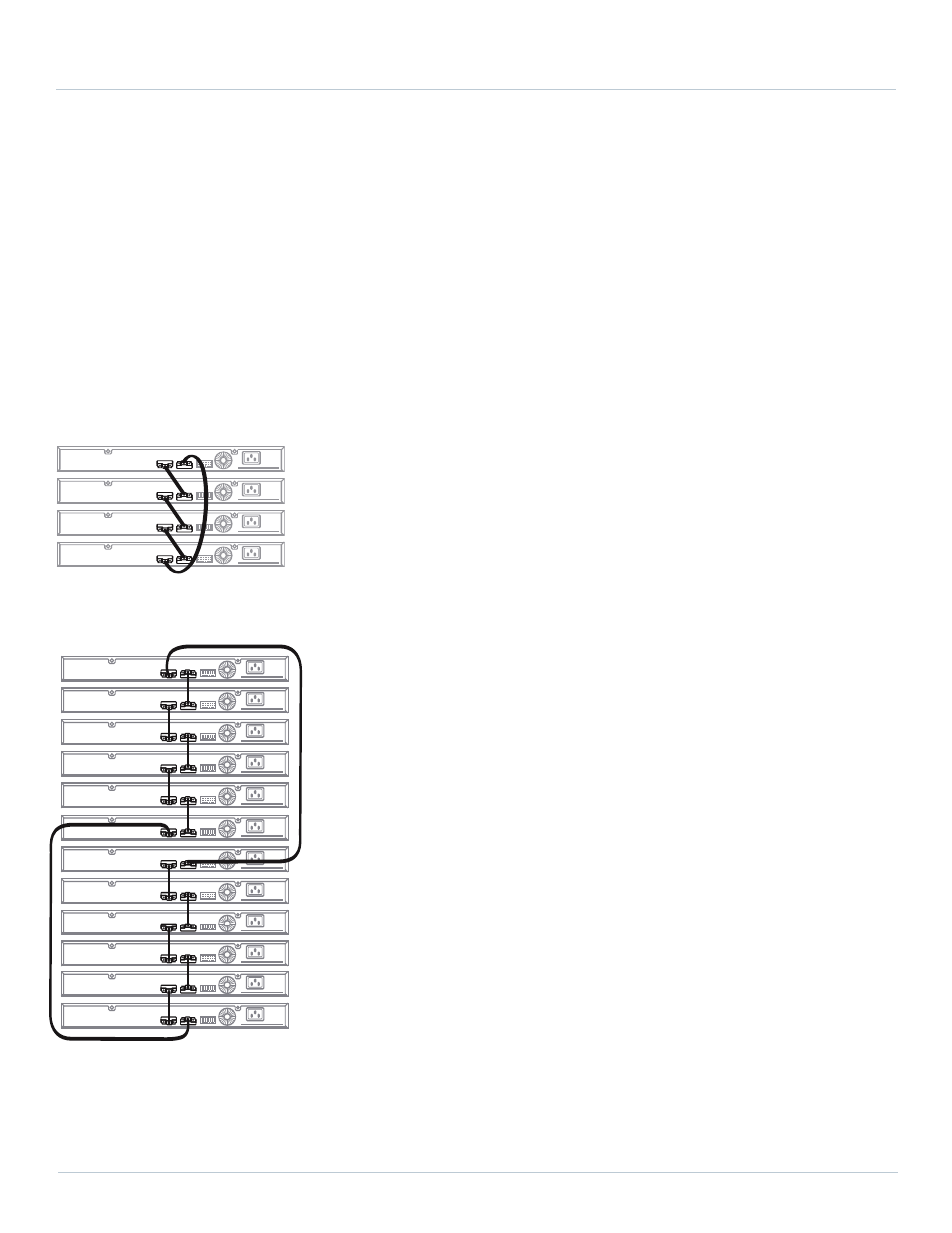

Small Stack Cable Configuration
Large Stack Cable Configuration
