SECTION 2: SETUP
2.1. INSTALLING:
1. Remove the scale from the packing box and place on a flat surface where it
will be used.
2. Using the level bubble, adjust one or two feet minimally to level the platform. Do
NOT adjust all four (4) feet.
3. For counter installation, install kit 21100 using the drawing. The suggested cut-out
size is 15 ¼" x 15 ¼".
2.2. CONNECTIONS:

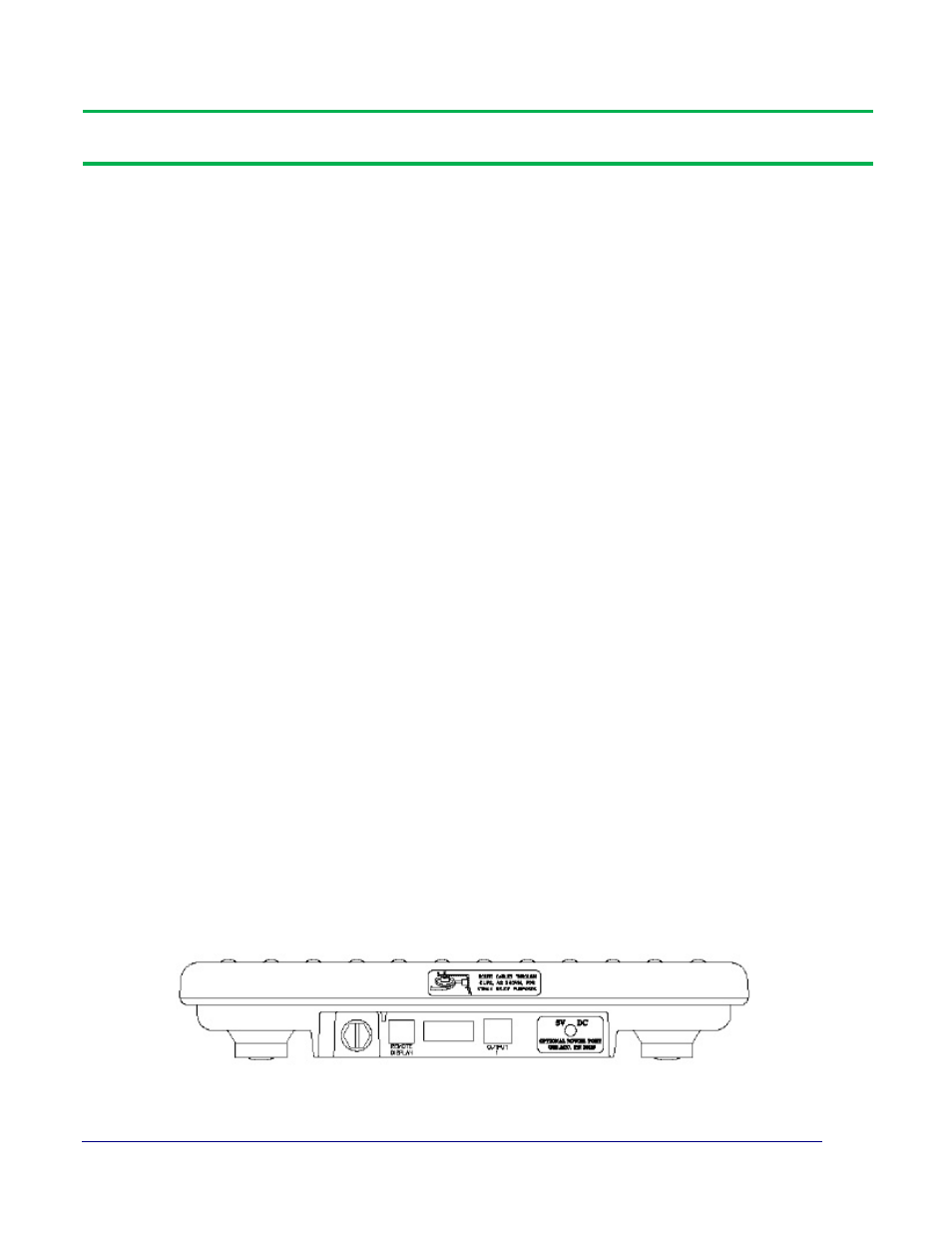

1. USB - To use the USB interface, plug the included six foot (6') USB cable into the
scale base where marked output 1. Connect the other end into a USB port on your
computer or USB hub. See figure below.
2. REMOTE DISPLAY - To use a remote display, plug the remote display into the
connector on the scale base where marked remote display. Mount the remote
using 2 screws or use a velcro strip (not included). A stand PN 20301, can also be
used.
3. AC ADAPTER - To use an AC adapter, plug the barrel plug into the back of the
scale where marked optional power, and the AC adapter unit into a proper outlet.
Check the AC receptacle for proper voltages prior to plugging in the adapter.
4. Check with your freight provider for compatible computer software.
