Agri-Fab 45-02882 - Manual (Page 7)

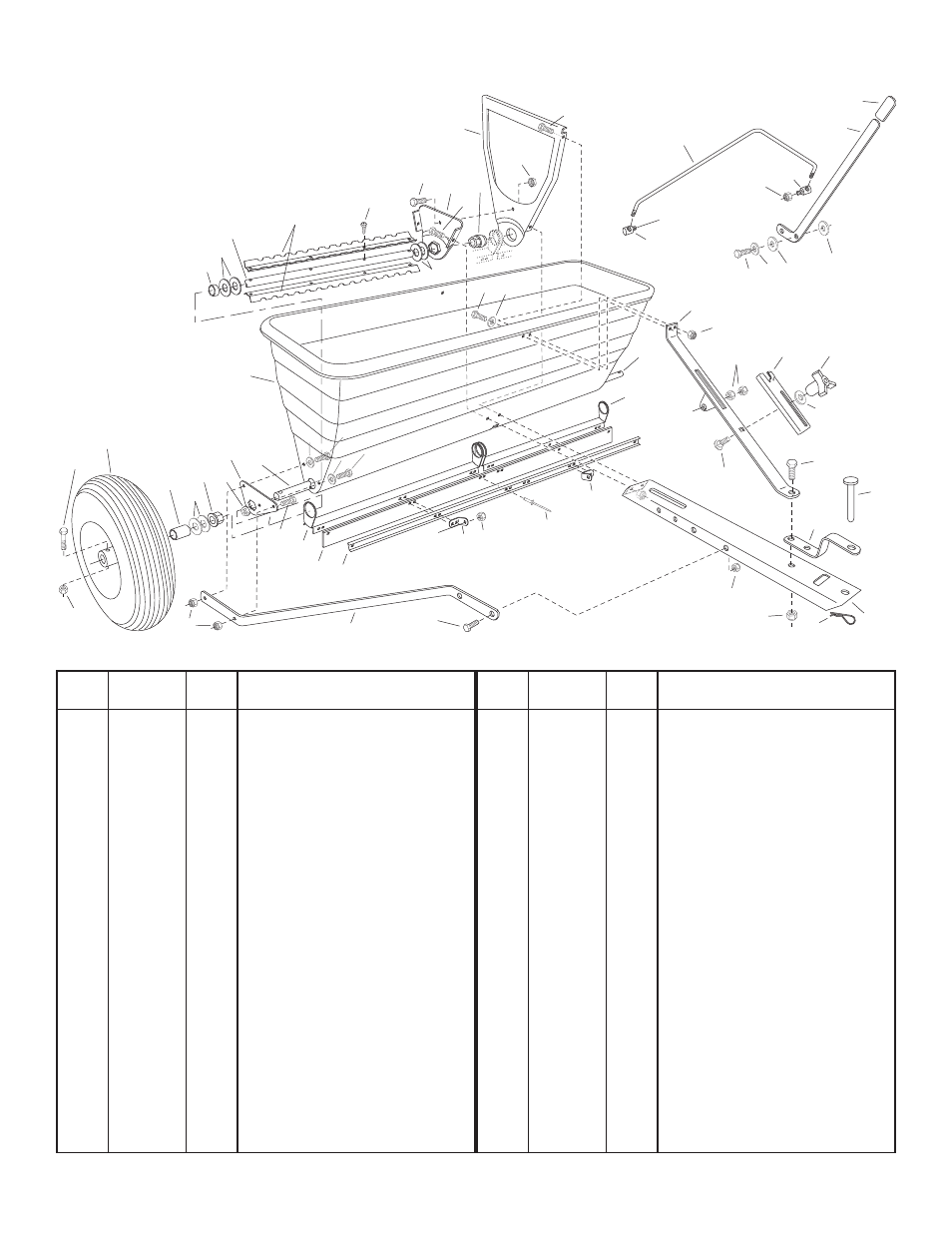

REPAIR PARTS FOR 175 LB. DROP SPREADER mODEL 45-02882
4
5
9
10
1
2
3
4
4
5
5
5
5
33
6
25
7
8
14
15
16
16
16
17
18
19
19
19
20
21
22
23
24
A
25
25
28
29
34
35
36
38
15
13
25
25
30
31
32
39 5
25
11
A
27
35
35 4
37
40
B
11
26
12
B 25 5
6
41
42
REF.
nO.
PART
nO.
QTY. DESCRIPTIOn
1 47451 1 Hopper
2 24536 1 Hopper Center Plate (Small)
3 24535 1 Hopper Center Plate (Large)
4 43088 9 Washer, 1/4"
5 43866 16 Bolt, Hex 1/4-20 x 5/8"
6 46978 6 Nut, Hex (SIMS) 1/4-20 Thd.
7 47615 2 Bearing, Flange
8 47484 1 Bearing, Hex Flange
9 24538 1 Bracket, Feed Plate (RH)
10 24539 1 Bracket, Feed Plate (LH)
11 47711 2 Ferrule
12 728-3001 10 Pop Rivet
13 47459 1 Skirt, 48"
14 47508 1 Retainer, Skirt
15 24537 2 Flow Plate
16 43009 12 Washer
17 47259 4 Agitator Blade
18 47476 16 Screw, #8-32 x 3/8" Lg.
19 24540 2 Axle
20 48665 2 Spacer, Tube 1" OD x 1.65" Lg.
21 47458 2 Spacer, 1.25" OD x .330" Lg.
22 24534 2 Plate, Bearing
REF.
nO.
PART
nO.
QTY. DESCRIPTIOn
23 40939 2 Wheel
24 1509-69 2 Bolt, Hex 1/4-20 x 1-3/4" Lg.
25 47189 18 Nylock Nut, 1/4-20 Thd.
26 47712 1 Rod, Flow Control
27 24660 1 Arm, Flow Control
28 24542 1 Gauge, Flow Control
29 63850 1 Brace Assembly, Hopper
30 24532 2 Brace, Tongue
31 23014 1 Hitch Bracket
32 24531 1 Tongue
33 43012 2 Bolt, Hex 1/4-20 x 3/4"
34 44950 1 Bolt, Carriage 1/4-20 x 3/4" Lg.
35 1543-69 3 Washer, Nylon
36 43849 1 Knob, Plastic 1/4-20 Thd.
37 43848 1 Grip, Plastic
38 43001 1 Bolt, Hex 3/8-16 x 1" Lg.
39 HA21362 1 Nut, Hex Lock 3/8-16 Thd.
40 1509-90 1 Bolt, Hex 1/4-20 x 1-1/4" Lg.
41 47623 1 Hitch Pin, 3/8"
42 43343 1 Hair Cotter Pin, 1/8"
40944 1 Owners Manual
