TOOLS REQuIRED FOR ASSEmBLY
(2) 7/16" Wrenches
(2) 9/16" Wrenches
FIGuRE 3
ASSEmBLY
NYLON
WASHER
1/4" NYLOCK
NUTS
1/4" FLAT
WASHER
1/4" x 1-1/4"
HEX BOLT PLASTIC
GRIP
FERRULE
FLOW
CONTROL
ROD
FLOW
CONTROL
ARM
HOPPER
BRACE
1/2"
FIGuRE 2
3. Assemble the plastic grip onto the end of the flow control
arm as shown in figure 2.
4. Insert the flow control arm through the slot in the hopper
brace. Place a nylon washer on each side of the arm
and attach it to the brace's welded bracket using a 1/4"
x 1-1/4" hex bolt, a 1/4" flat washer and two 1/4" nylock
nuts as shown in figure 2.
Tighten the first nylock nut
until there is noticeable resistance when moving the flow
control arm, then
tighten the second nylock nut.
5. Place the flow control rod through the hole at the end
of the flow control arm. Assemble the two ferrules onto
the threaded ends of the rod so that approximately 10
threads (1/2") of the rod extends through the ferrules.
See figure 2.
1/4" HEX NUT
1/4" x 5/8"
HEX BOLT
TONGUE

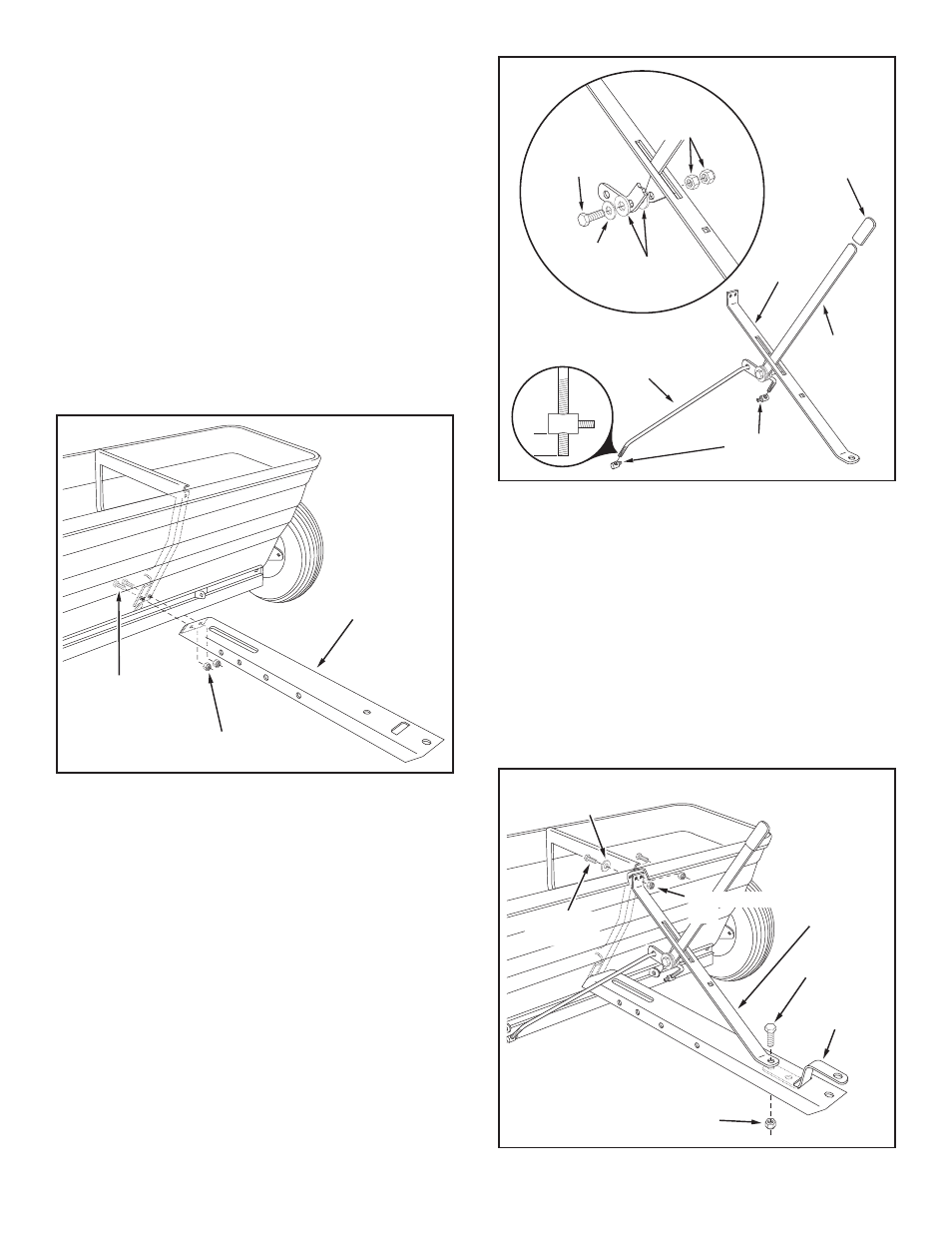

FIGuRE 1
1. Remove the hardware pack and all individual parts from
the carton and lay out as shown on page 2 and 3.
2. Assemble the tongue to the hopper as shown in figure
1 using two 1/4" x 5/8" hex bolts and 1/4" nylock nuts.
Do not tighten yet.
3/8" NYLOCK NUT
1/4" x 5/8"
HEX BOLT
3/8" x 1"
HEX BOLT
1/4" FLAT WASHER
(ONE ONLY)
HOPPER
BRACE
HITCH
BRACKET
1/4" NYLOCK
NUT
6. Attach the hopper brace to the hopper using two 1/4" x
5/8" hex bolts, one 1/4" flat washer and two 1/4" nylock
nuts.
Do not tighten yet. See figure 3.
7. Place the end of the hitch bracket (two holes) down
through the slot in the tongue. Attach the hopper brace
to the top of the tongue and the hitch bracket to the
bottom using one 3/8" x 1" hex bolt and 3/8" nylock nut.
Tighten all bolts assembled so far. See figure 3.
