TWO COLUMN 8K FLOOR PLATE LIFT
CO7589
IN50014 Rev. D 03/2/2010
6

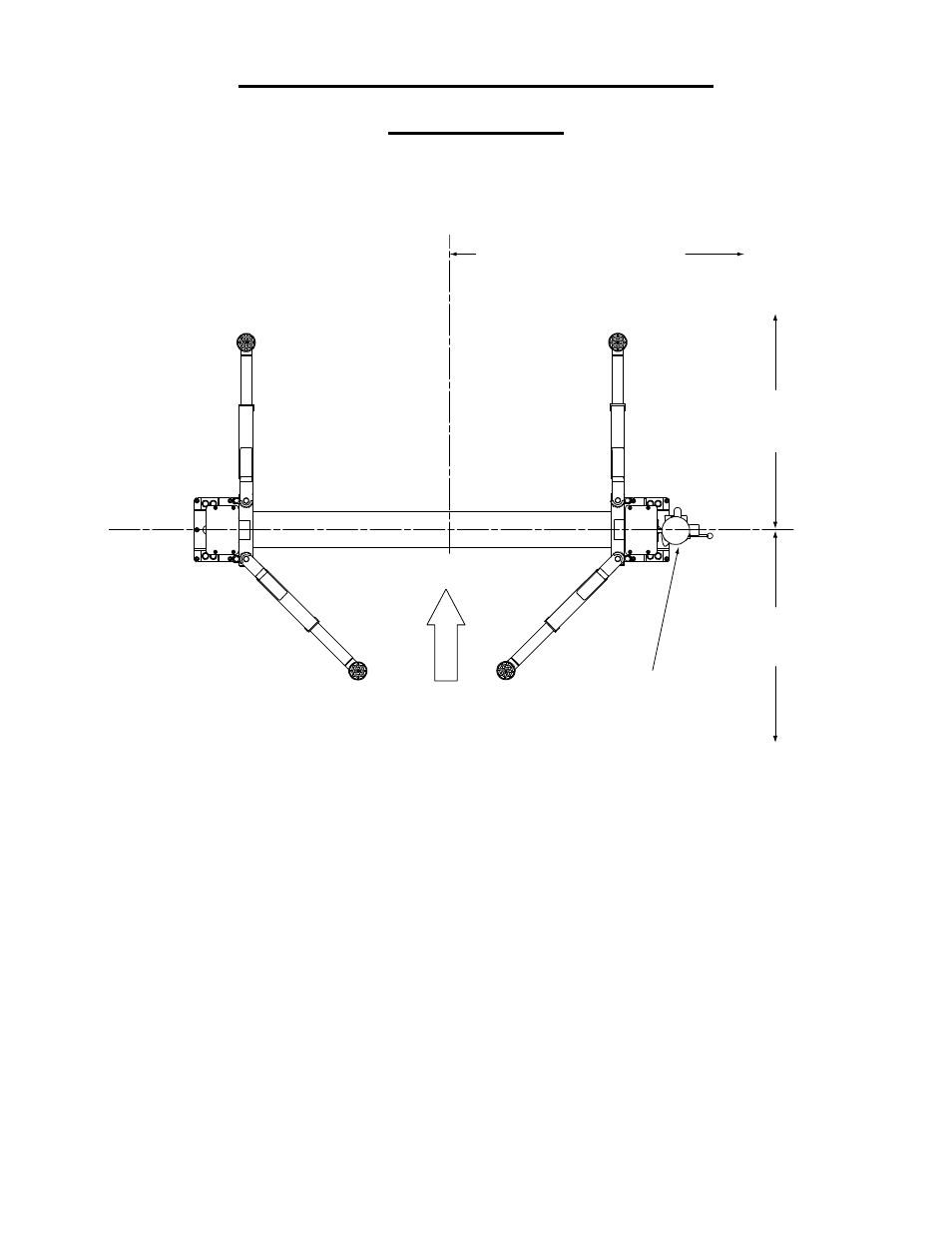

LIFT AREA LAYOUT INFORMATION
FLOOR PLATE
MODEL
(Symmetrical Arm configuration)
6' 0" (1829mm) minimum to
nearest obstruction or bay.
7' 0" (2134mm) minimum to
nearest wall.
11' 0" (3353mm)
minimum to nearest
obstruction
APPROACH
13' 0" (3963mm)
minimum to nearest
obstruction
Power Unit
NOTE: Lift can be installed so power unit can column can be located on
either side. However to save operation steps it is recommended that it is
placed on passenger side of lift.
