Direct Lift HR8000 User Manual
Page 13
TWO COLUMN 8K FLOOR PLATE LIFT
CO7589
IN50014 Rev. D 03/2/2010
13
STEP 13

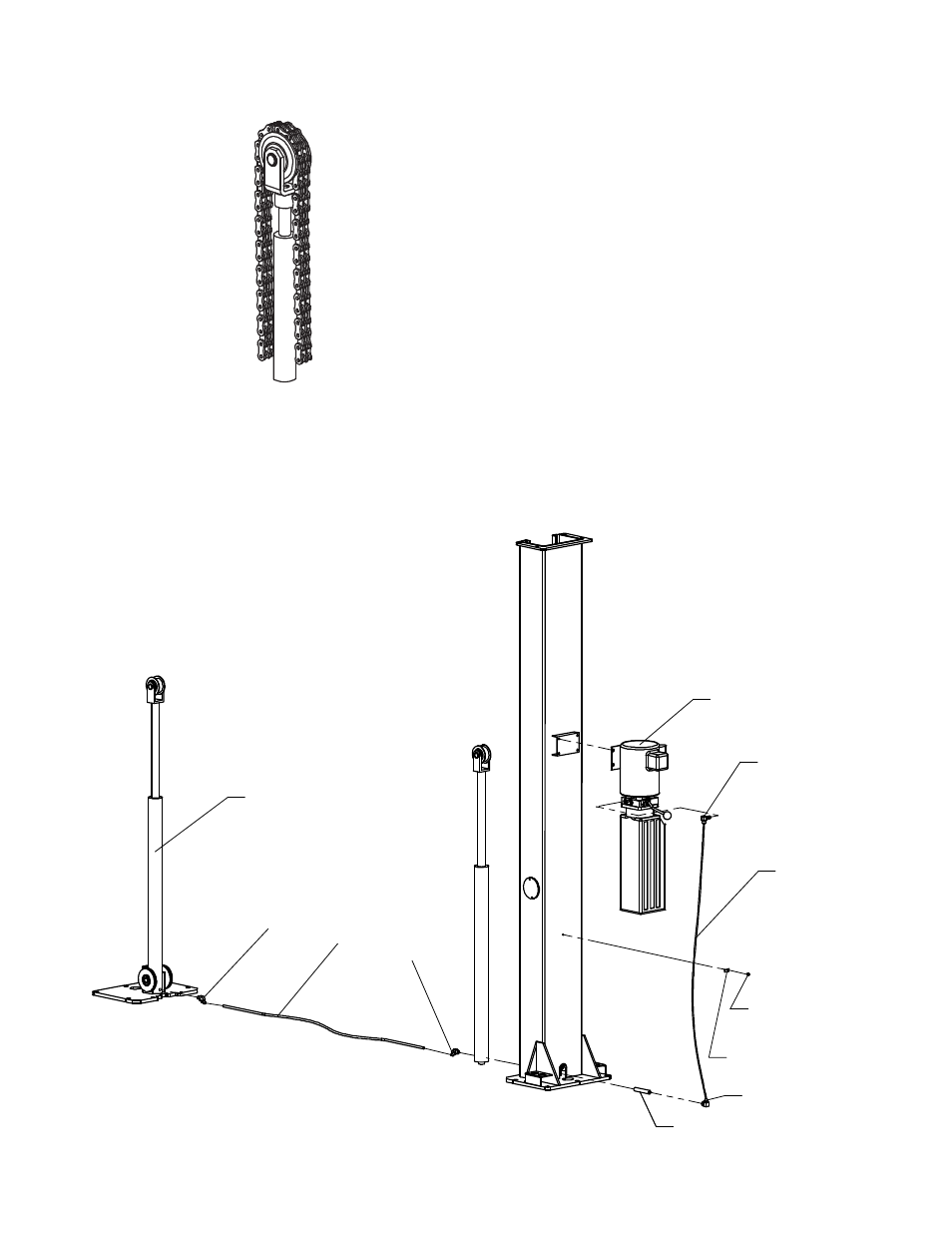

: Cylinder centering and chain installation: Make sure the “Tip” on the bottom of the
cylinder is properly located into the center hole on top of the cylinder mount in base. Pull the
pre-attached leaf chain in both sides up and over the chain sheave on top of the cylinders.
STEP 14
: Connect the Hydraulic Hoses and Fittings, as shown.
Hydraulic
Nipple
Hydraulic Cylinder
Hydraulic
Nipple
Hose
Power Unit
Hydraulic Hose
90º Fitting
M6 x 8
Screw
Hydraulic Extension
90º Fitting
Hose Clip
