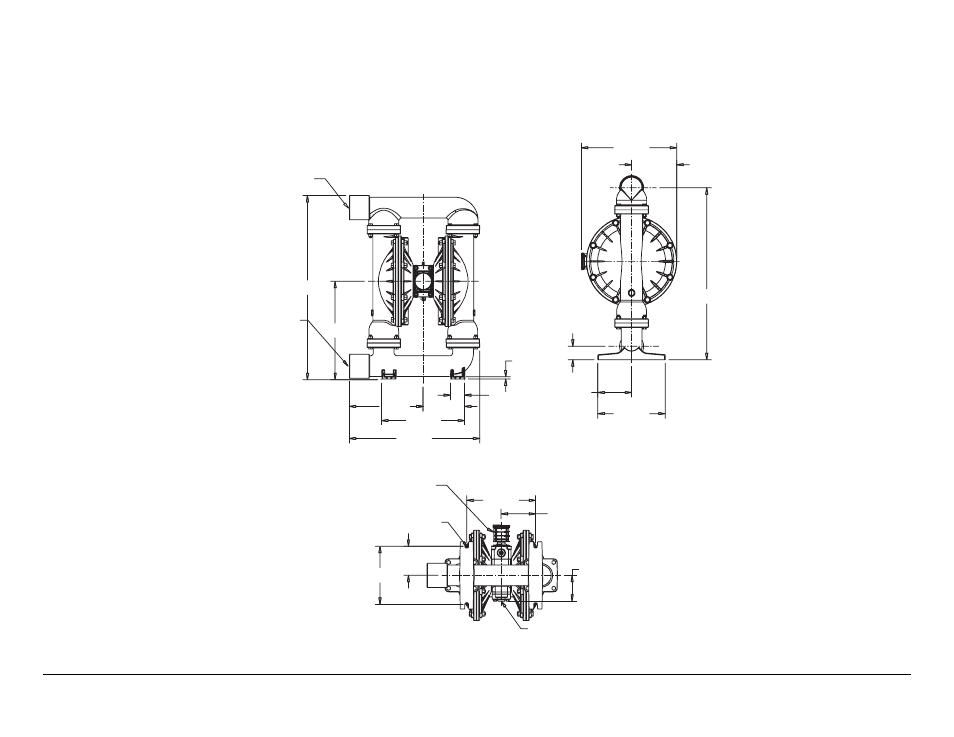

Dimensions (Side Porting):

DISCHARGE PORT

3" BSP (PARALLEL)

INTERNAL THREADS

SUCTION PORT

3" BSP

(PARALLEL)

INTERNAL THREADS

1" NPT EXHAUST PORT

FOR PIPING EXHAUST

AIR IN SUBMERGED APPLICATIONS.

AIR INLET
3/4" BSP (PARALLEL)
INTERNAL THREADS

410mm

200mm

761mm

298mm

149mm

60mm

10mm

62mm

577mm

367mm

184mm

327mm

435mm

815mm

152mm

114mm

305mm

257mm

129mm

R8mm
4 Places

Dimensions in Millimeters

Dimensional Tolerance:± 3mm
