Air Operated Double Diaphragm Pump 6/05 Page 12

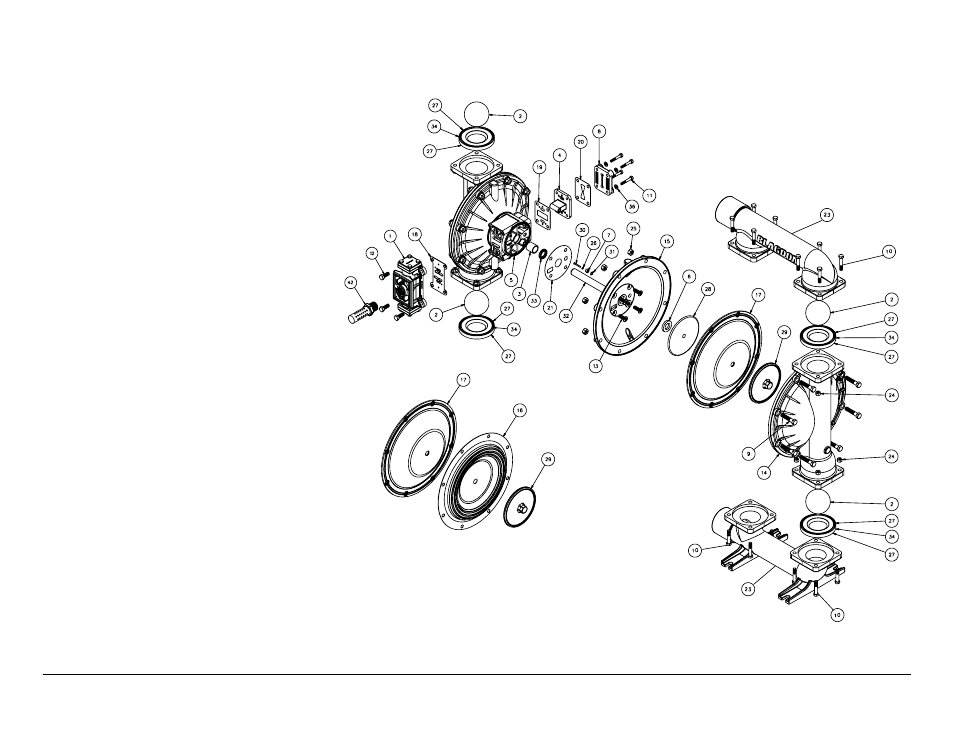

Composite Repair Parts Drawing
B476-227-000 AIR END KIT (Aluminum)
Seals, O-ring, Gaskets, Retaining Rings, Air Valve
Sleeve and Spool Set, and Pilot Valve Assembly
B476-185-360 WET END KIT
Buna Diaphragms, Balls, and Seats.
B476-185-656 WET END KIT
Santoprene Diaphragms, Balls and EPDM Seats.
B476-185-364 WET END KIT
EPDM Diaphragms, Balls and Seats.
B476-185-365 WET END KIT
Neoprene Diaphragms, Balls, and Seats.
B476-185-633 WET END KIT
Viton Diaphragms, PTFE Balls and PTFE Seats.
476-185-635 WET END KIT
Neoprene Diaphragms, PTFE Overlay,
PTFE Balls and PTFE Seats.
HARDWARE KITS
475-197-330
Zinc Plated Capscrews, Washers, and Hex Nuts
AVAILABLE SERVICE AND CONVERSION KITS
Nitrile
FKM
B476-185-635
B476-197-330
