Composite repair parts drawing: wetted side, Probe – Blagdon Pump AVX75 Metallic User Manual
Page 15
avx75mdl1sm_haz duty-rev0112
Model AVX75 Hazardous Duty Metallic Page 13

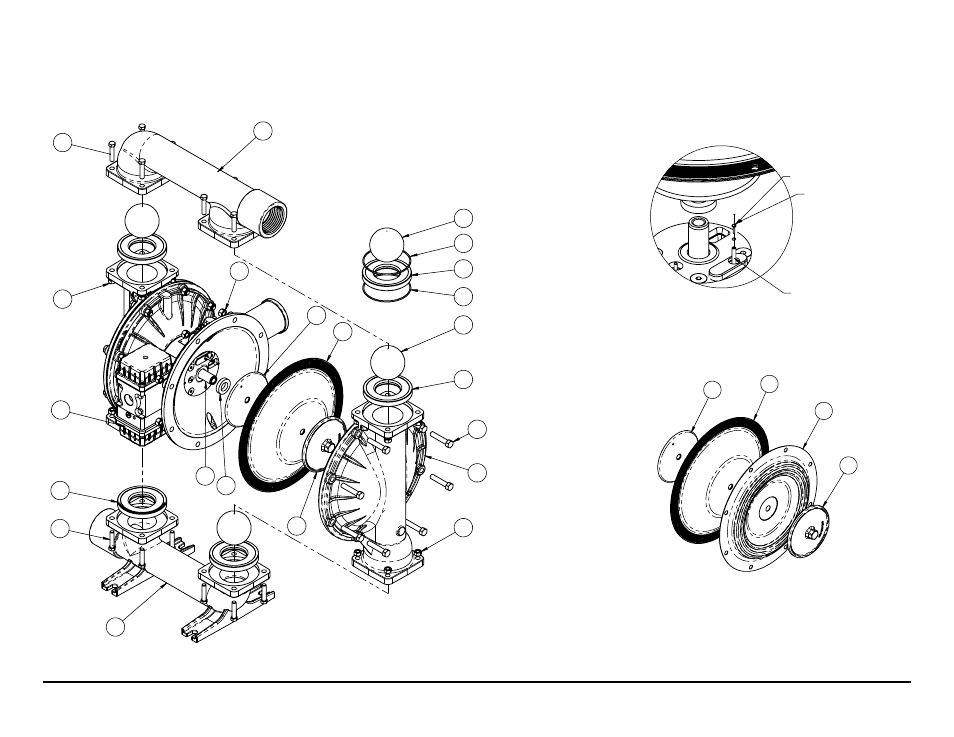

Composite Repair Parts Drawing: Wetted Side
26
3
42
11
16
28
12
42
3
25
28
36
19
35
7
40
29
12
3
43
42
43
METALLIC SEAT OPTION
35
19
20
36
PTFE OVERLAY OPTION
PROBE
45
PROBE TIP
O-RING
SENSOR ROD
PROBE TIP DETAIL
NOTE: PART NUMBERS DESIGNATED "XXX" REFER TO BILLS OF MATERIAL FOR SPECIFIC PART NUMBERS
