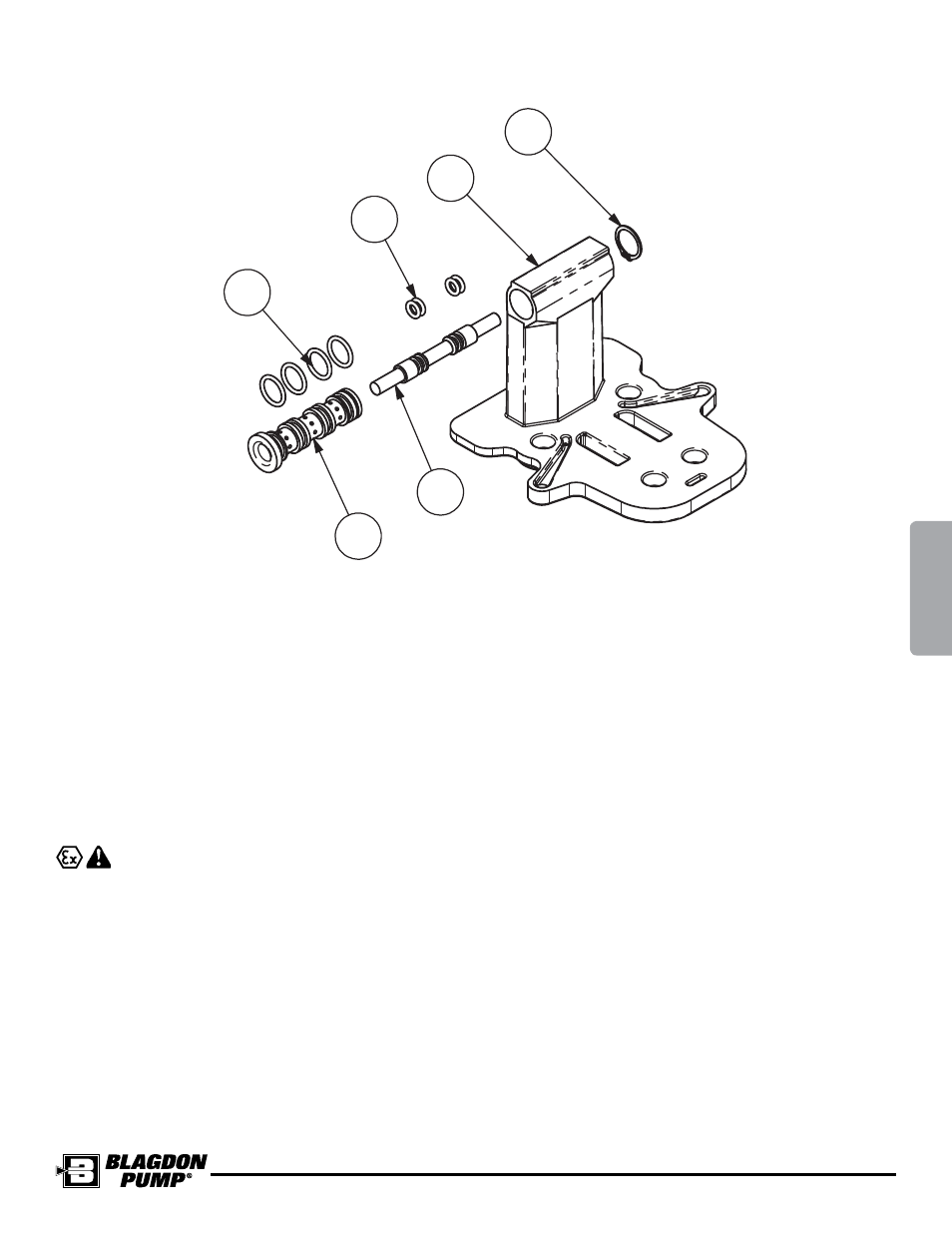

Pilot Valve assembly

ATEX Compliant

PILOT VALVE ASSEMBLY PARTS LIST

Item

Part Number

Description

Qty

4

B095.074.001

Pilot Valve Assembly

1

4A

B095.071.557

Pilot Valve Body

1

4B

B755.025.162

Pilot Valve sleeve

1

4C

B560.033.360

O-Ring

4

4D

B775.014.115

Pilot Valve Spool

1

4E

B560.023.360

O-Ring

4

4F

B675.037.050

Retaining Ring

1

Pilot Valve Servicing

With Pilot Valve removed from pump.
Step 1: Remove snap ring (4F).
Step 2: Remove sleeve (4B), inspect O-Rings (4C),

replace if required.

Step 3: Remove spool (4D) from sleeve (4B),

inspect O-Rings (4E), replace if required.

Step 4: Lightly lubricate O-Rings (4C) and (4E).
Reassemble in reverse order.

4F

4A

4D

4B

4C

4E

x25fvdl2sm-rev0213

Model X25 Metallic •

12

www

.

blagdonpump

.

com

MODEL SPECIFIC

4: AIR
