Blagdon Pump X25 High Pressure - Manual (Page 11)

HG-CF-1194-A - 12.02.10 Page 11

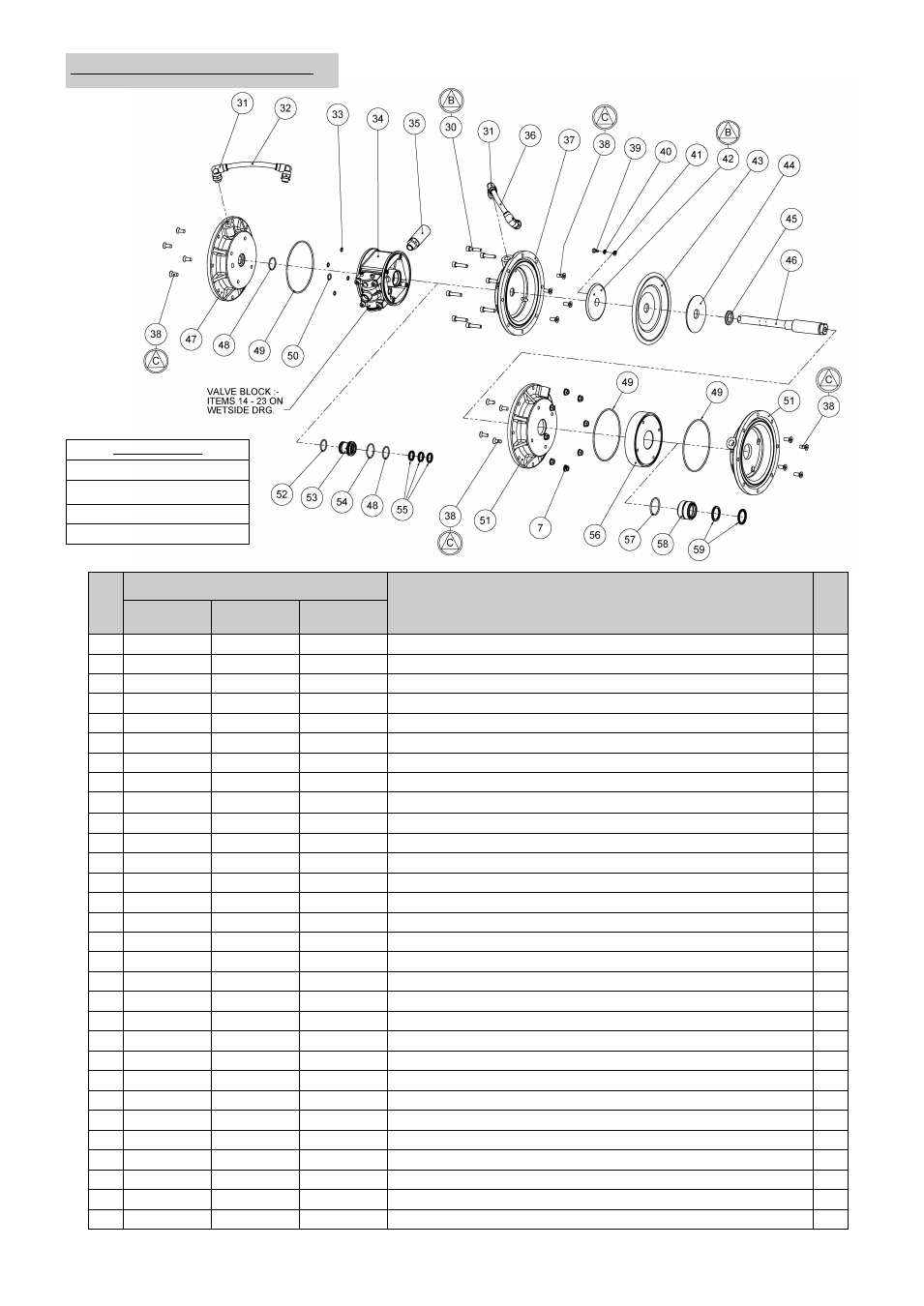

AIRSIDE EXPLODED ASSEMBLY
PART NUMBER DESCRIPTION QTY REF
No.
ALUMINIUM /
COMMON
ST. STEEL ATEX
Cat. 2
31 25-103 SP507 SP507 SWIVEL ELBOW ADAPTOR 4
32 25-105 SP506 SP506 AIR HOSE  (25-105) 1
33 G339 O-RING  8
34 40-259 40-249 VALVE CHEST 1
35 40-047 SILENCER 1
36 25-104 SP505 SP505 AIR HOSE 1  (25-104)
37 25-085 25-207 INNER COVER - VALVE CHEST RH 1
38 D216 C‟SUNK SKT CAP SCREW M8 x 20 16
39 25-231 LOCKING SCREW  1
40 C263 SPRING WASHER  1
41 C048 FLAT WASHER  1
42 25-082 LOCKING PLATE  1
43 25-092 DIAPHRAGM - AIR CHAMBER  1
44 25-102 BACKPLATE - AIR CHAMBER 1
45 25-083 THRUST WASHER 1
46 25-081 DIAPHRAGM SHAFT 1
47 25-111 25-208 INNER COVER - VALVE CHEST LH 1
48 G367 O-RING  2
49 G242 O-RING  4
50 G243 O-RING  2
51 25-110 25-209 INNER COVER - SPACER 2
52 G189 O-RING 2 
53 25-089 SHAFT BUSH 2
54 G245 O-RING  2
55 25-091 SHAFT SEAL 6 
56 25-080 25-210 SPACER 1
57 G373 O-RING  1
58 25-090 SPACER BUSH 1
59 50-206 SHAFT SEAL  2
60
TORQUE SETTINGS
A - 42 - 47 Nm (30 - 35 lbs/ft)
B - 27 Nm (20 lbs/ft)
C - 20 Nm (14.6 lbs/ft)
D - 14 - 15 Nm (10 - 11 lbs/ft)
