Blagdon Pump X25 High Pressure - Manual (Page 10)

HG-CF-1194-A - 12.02.10 Page 10
REF
No.
PART NUMBER DESCRIPTION QTY
ALUMINIUM /
COMMON
ST. STEEL ATEX
Cat. 2
1 D222 SKT CAP SCREW M8 x 30 8
2 C013 WASHER M8 8
3 25-088 25-078 DISCHARGE MANIFOLD 1
4 SEE TABLE ON PAGE 12 VALVE BALL  4
5 SEE TABLE ON PAGE 12 VALVE SEAT (Note! Rubber seats only included in kits)  4
6 SEE TABLE ON PAGE 12 O-RING  4
7 B003 FLANGED NUT M8 24
8 1A009 BUMPSTOP 1
9 1A007 BACKPLATE 2
10 SEE TABLE ON PAGE 12 DIAPHRAGM - SUPPORT  2
11 DIAPHRAGM - FLUID  2 SEE TABLE ON PAGE 12
12 SA10502 SA10104 FRONTPLATE ASSY. 2
13 25-084 25-073 OUTER COVER 2
14 40-264 VALVE BLOCK  1
15 C165 SPRING WASHER M8 4
16 D337 SKT CAP SCREW M8 x 40 4
17 40-192 VALVE CARRIER  1
18 D391 SOCKET CAP SCREW M5 x 14  4
19 40-266 VALVE BLOCK PLUG  2
20 G512 O-RING  2
21 40-004 SLIDE VALVE 1
22 40-005 VALVE PLATE 1
23 40-204 GASKET  1
24 25-094 BUMPSTOP 1
25
26 25-087 25-079 SUCTION MANIFOLD 1
27 40-225 BASE LEG 2
28 D490 SKT CAP SCREW M8 x 16 4
29 1B034 CAP - BASE LEG 4
30 D114 SKT CAP SCREW M8 x 35 24

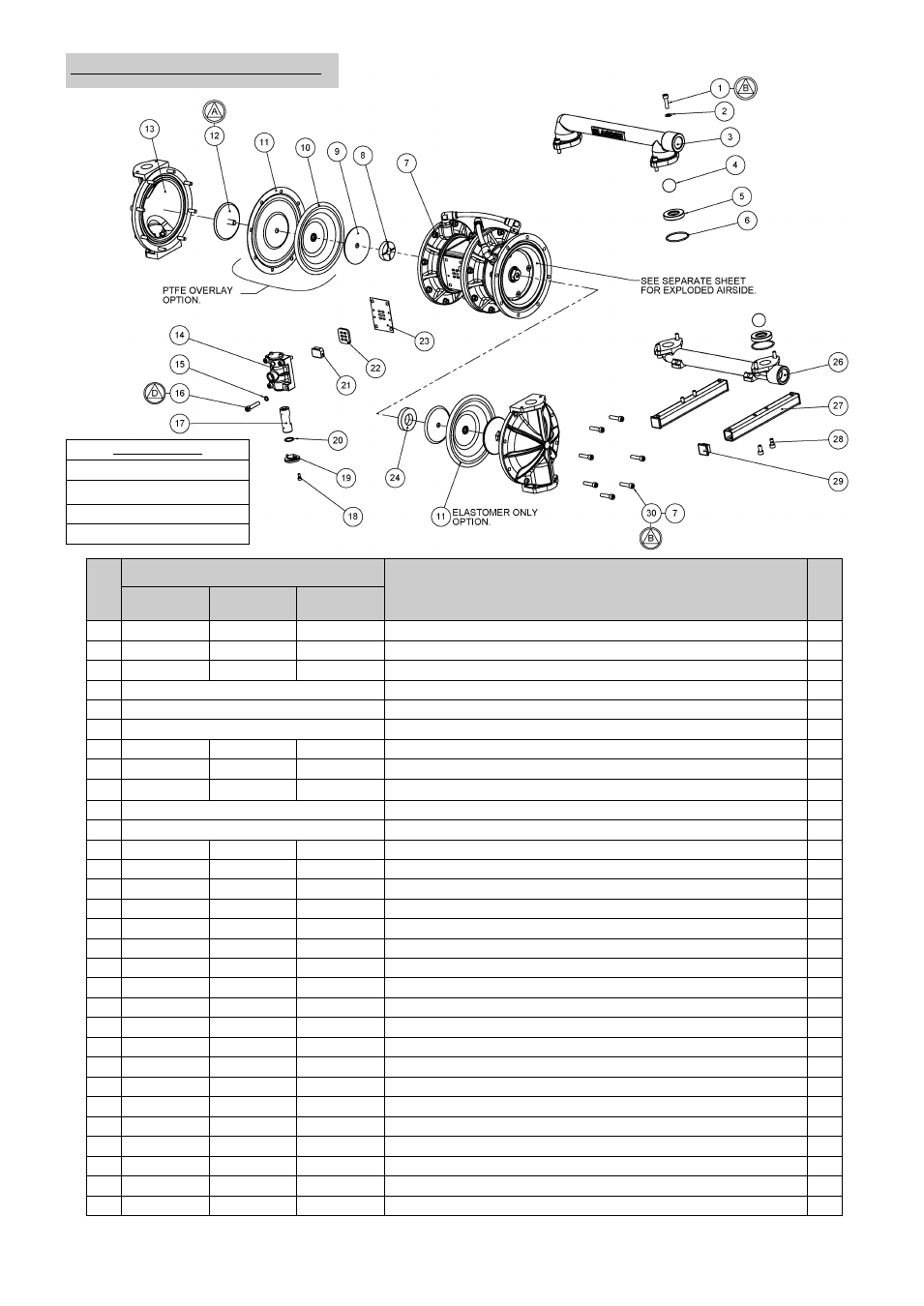

WETSIDE EXPLODED ASSEMBLY
TORQUE SETTINGS
A - 42 - 47 Nm (30 - 35 lbs/ft)
B - 27 Nm (20 lbs/ft)
C - 20 Nm (14.6 lbs/ft)
D - 14 - 15 Nm (10 - 11 lbs/ft)
