Exploded assembl y – Blagdon Pump X15 PTFE Non-Metallic User Manual

Page 9

background image

H

G

-C

F-
1119 R

e

v

. F –

10.1

2

.0

9

Pag

e

9

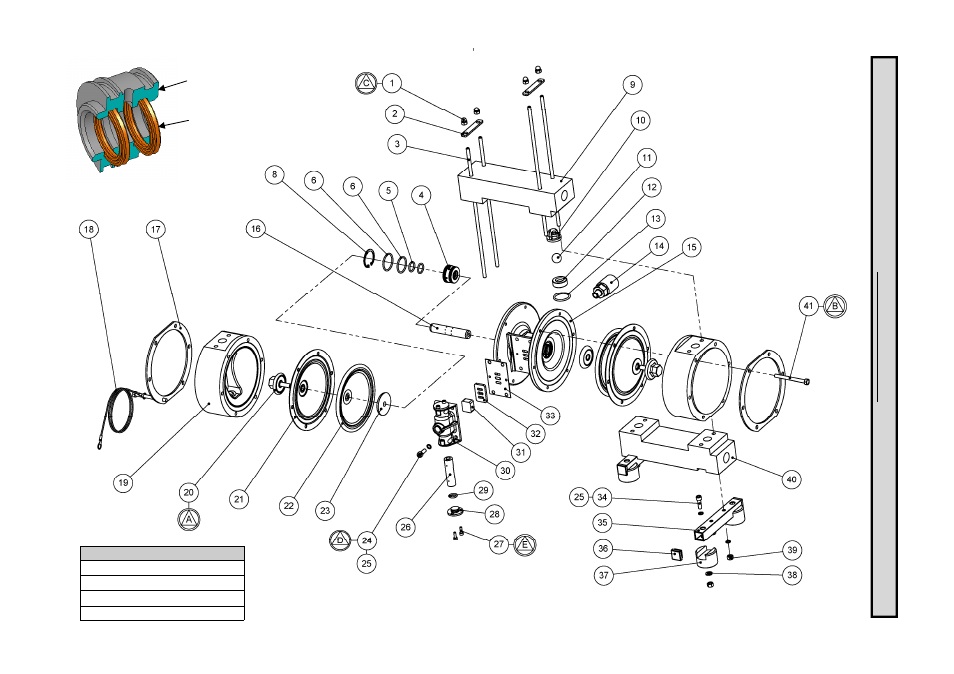

Exploded Assembl

y

TORQUE SETTINGS

A

-

27 - 34 Nm (20 - 25 lbs/ft

B

-

6.2 - 6.7 Nm (55 - 60 lbs/in)

C

-

10 - 11 Nm (90 - 100 lbs/in)

D

-

3.4 - 4.5 Nm (30 - 40 lbs/in)

Exploded General Assembly :- B15 PTFE Pump, refer to page 8, Parts List table for Item Ref. Nos.

Bi-directional Lip Seals, item 5,
can be fitted either way round in grooves.

Shaft Bush, item 4.
