Apple Macintosh Performa 577 User Manual
Page 44
Take Apart
Analog Board - 9

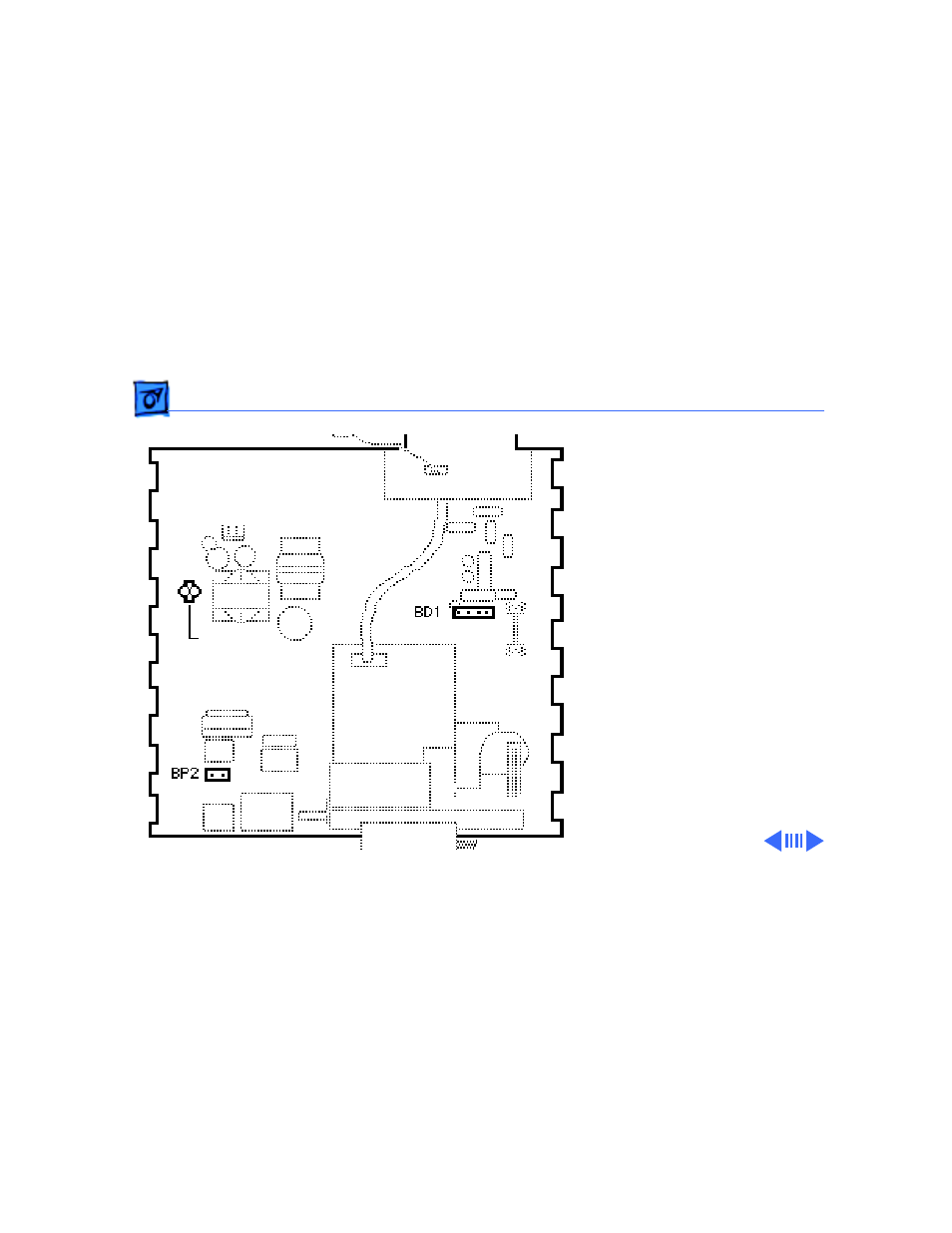

3 Disconnect the following
cables from the analog
board:
• Degauss cable from
BP2 (use a small
screwdriver to
release the latch)
• CRT cable from BD1
4 Remove the wires from
the cable retainer.
Replacement Note:
If you
are replacing the analog
board, remove the cable
retainer and reinstall it on
the new board.
Cable
Retainer
