2 - 3 0

C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n

8 .

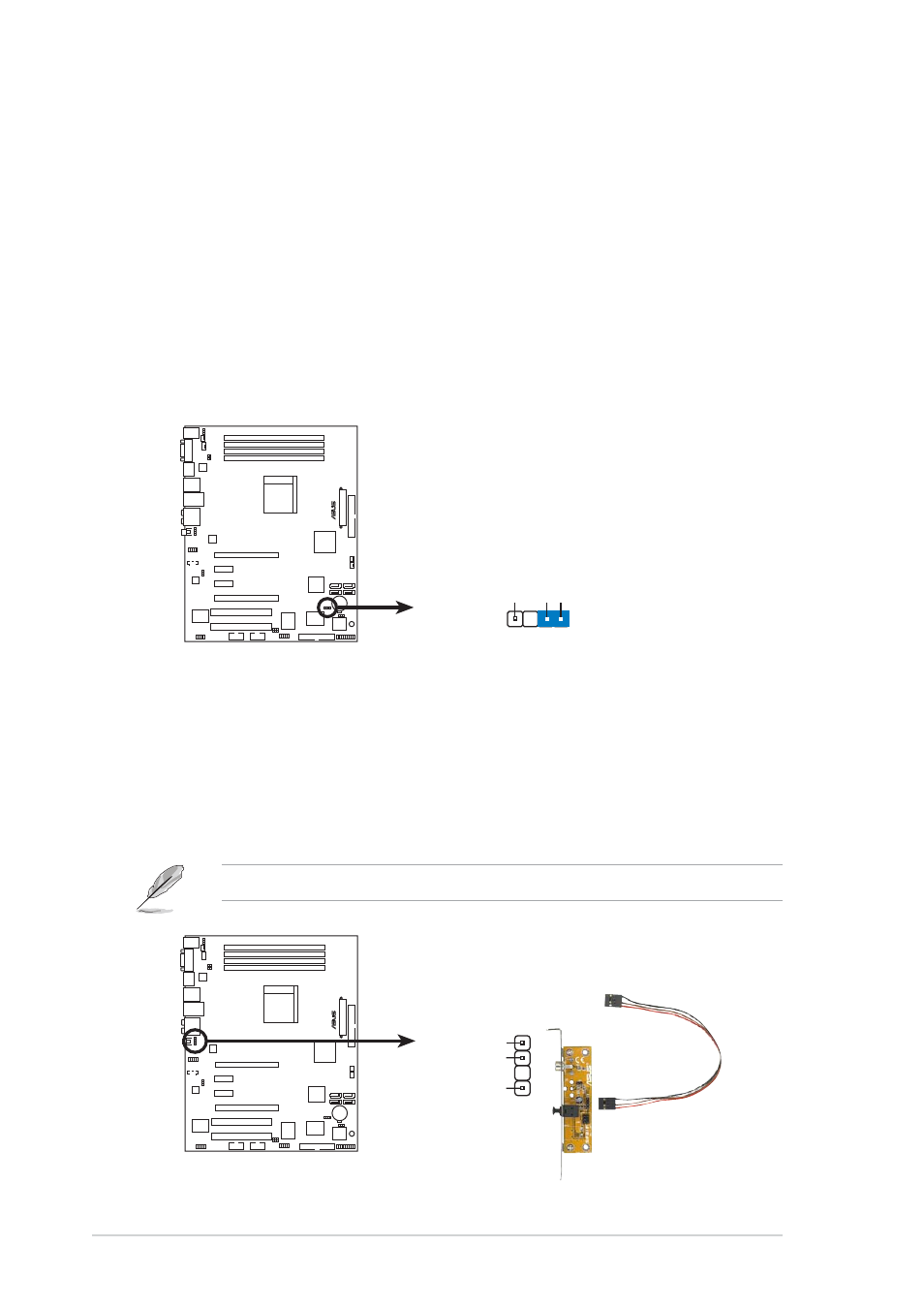

C h a s s i s i n t r u s i o n c o n n e c t o r ( 4 - 1 p i n C H A S S I S )

This connector is for a chassis-mounted intrusion detection sensor or
switch. Connect one end of the chassis intrusion sensor or switch
cable to this connector. The chassis intrusion sensor or switch sends a
high-level signal to this connector when a chassis component is
removed or replaced. The signal is then generated as a chassis
intrusion event.

By default, the pins labeled “Chassis Signal” and “Ground” are shorted
with a jumper cap. Remove the jumper caps only when you intend to
use the chassis intrusion detection feature.

M2R32-MVP

M2R32-MVP Chassis intrusion connector

CHASSIS

+5VSB_MB

Chassis Signal

GND

(Default)

9 .

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )

D i g i t a l a u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T )
This connector is for an additional Sony/Philips Digital Interface
(S/PDIF) port(s). Connect the S/PDIF module cable to this connector,
then install the module to a slot opening at the back of the system
chassis.

The S/PDIF module is purchased separately.

M2R32-MVP

M2R32-MVP COM port connector

+5V

SPDIFOUT

GND

SPDIF_OUT
