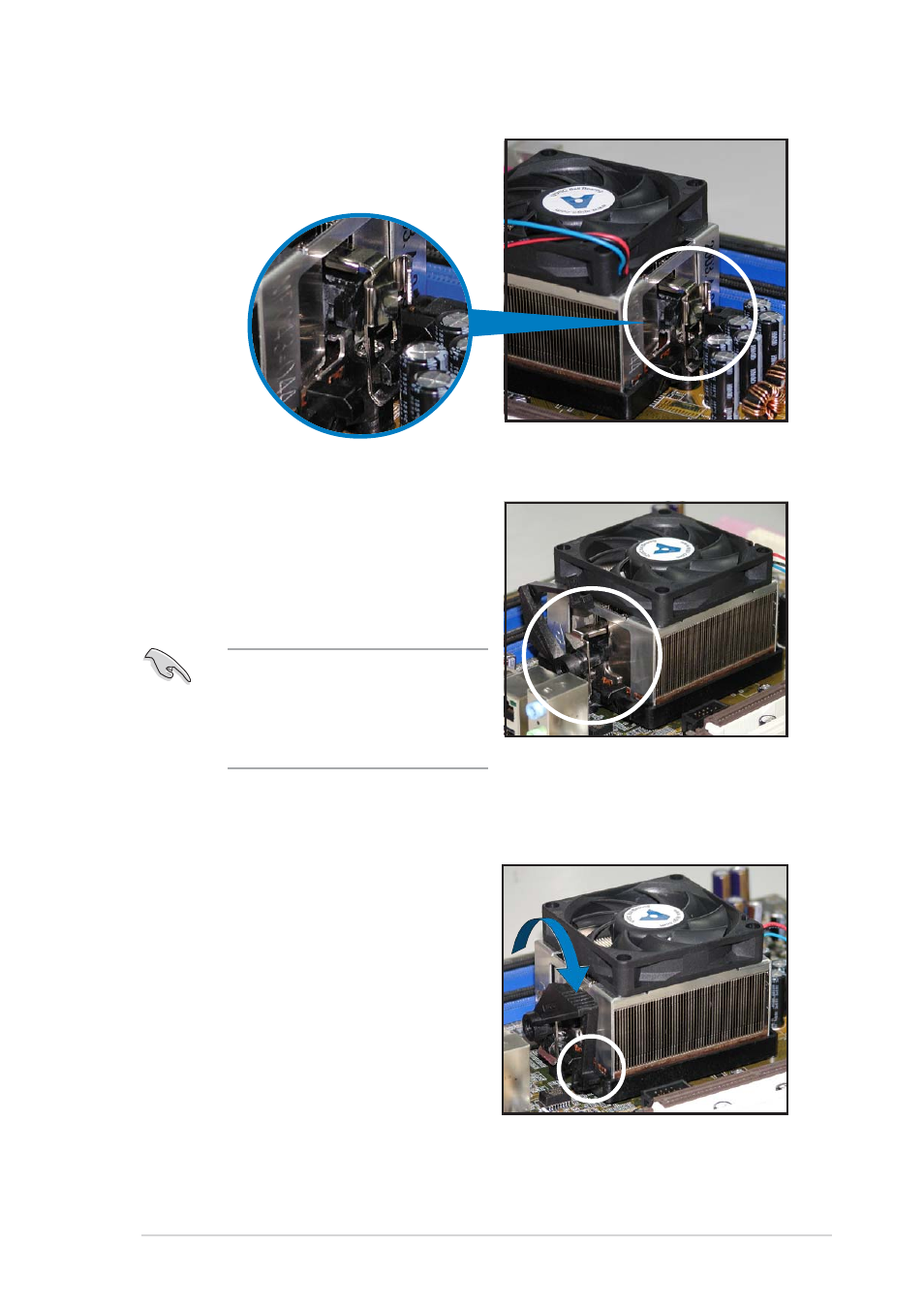

2. Attach one end of the retention
bracket to the retention module
base.
3. Align the other end of the
retention bracket (near the
retention bracket lock) to the
retention module base. A clicking
sound denotes that the retention
bracket is in place.
Make sure that the fan and
heatsink assembly perfectly fits
the retention mechanism module
base, otherwise you cannot snap
the retention bracket in place.
4. Push down the retention bracket
lock on the retention mechanism
to secure the heatsink and fan to
the module base.
