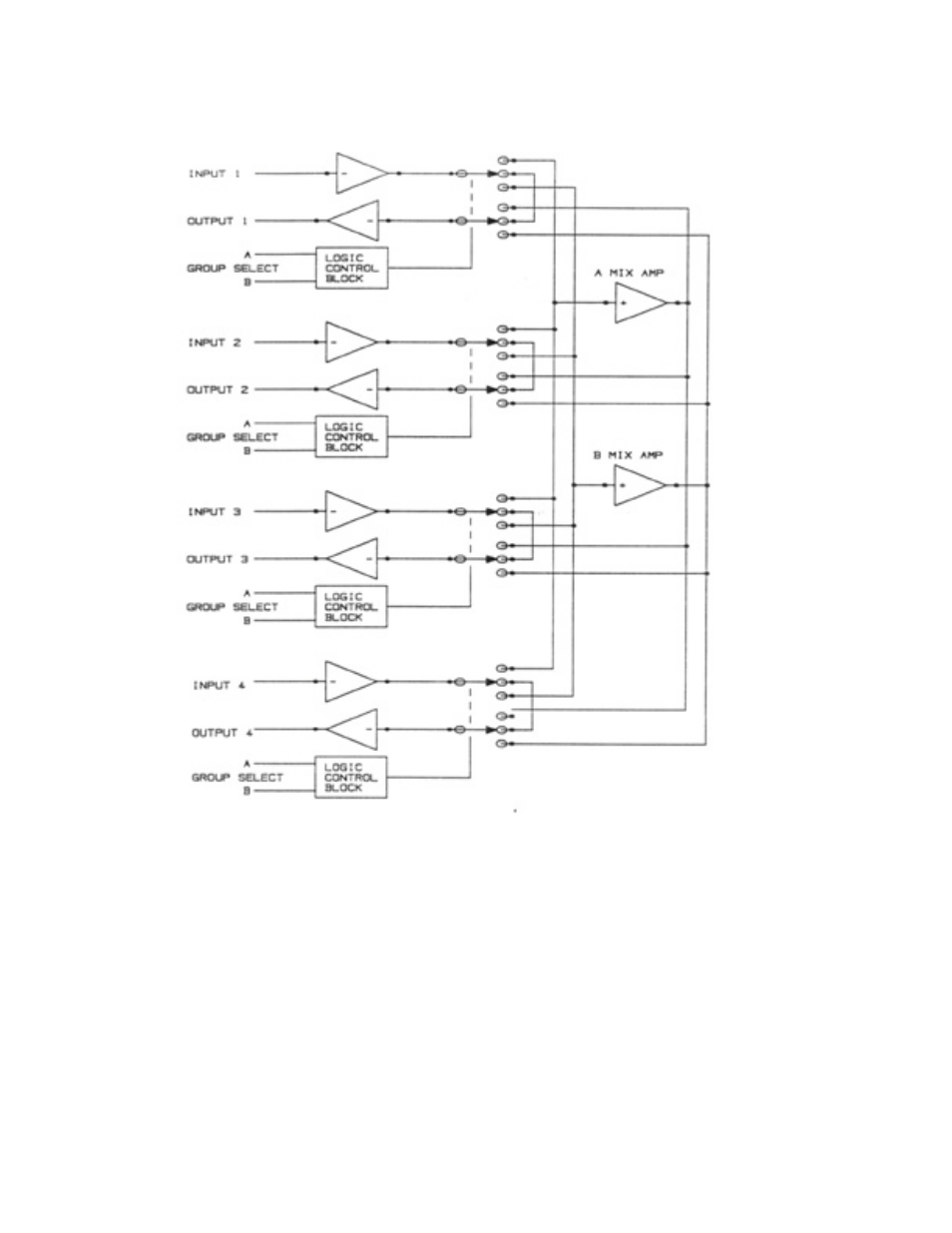

Block Diagram of the RCM-42B
RCM-42B ROOM COMBINING MATRIX FEATURES
•
Allows up to four IA-204’s to share program material.
•
Provides two combining busses for your IA-204 system.
•
Digitally controlled switching for ease of operation.
•
Uses screw terminal connectors for fast and reliable installation.
•
Silk screened label for error free installation.
•
When in use, allows the power amplifier section of grouped IA-204’s to work as “slave” amplifiers, and
allows all mic/line inputs to act as “masters”.
