Note: To complete the BLU-SV8 set-up, a change needs to be made inside
the BSS London Architect software. Be aware that applications may vary in
each installation based on the template being used. If the audio side defines
the source, then navigate to the audio tab and select the DSP being used.
Right click on the desired SV to be converted to an SV8. Select properties,
then change the number of channels to 8 with “allows none” enabled. If the
logic tab defines the source, then change the logic value source from 5 to 9.
Contact BSS Audio if additional support is needed.

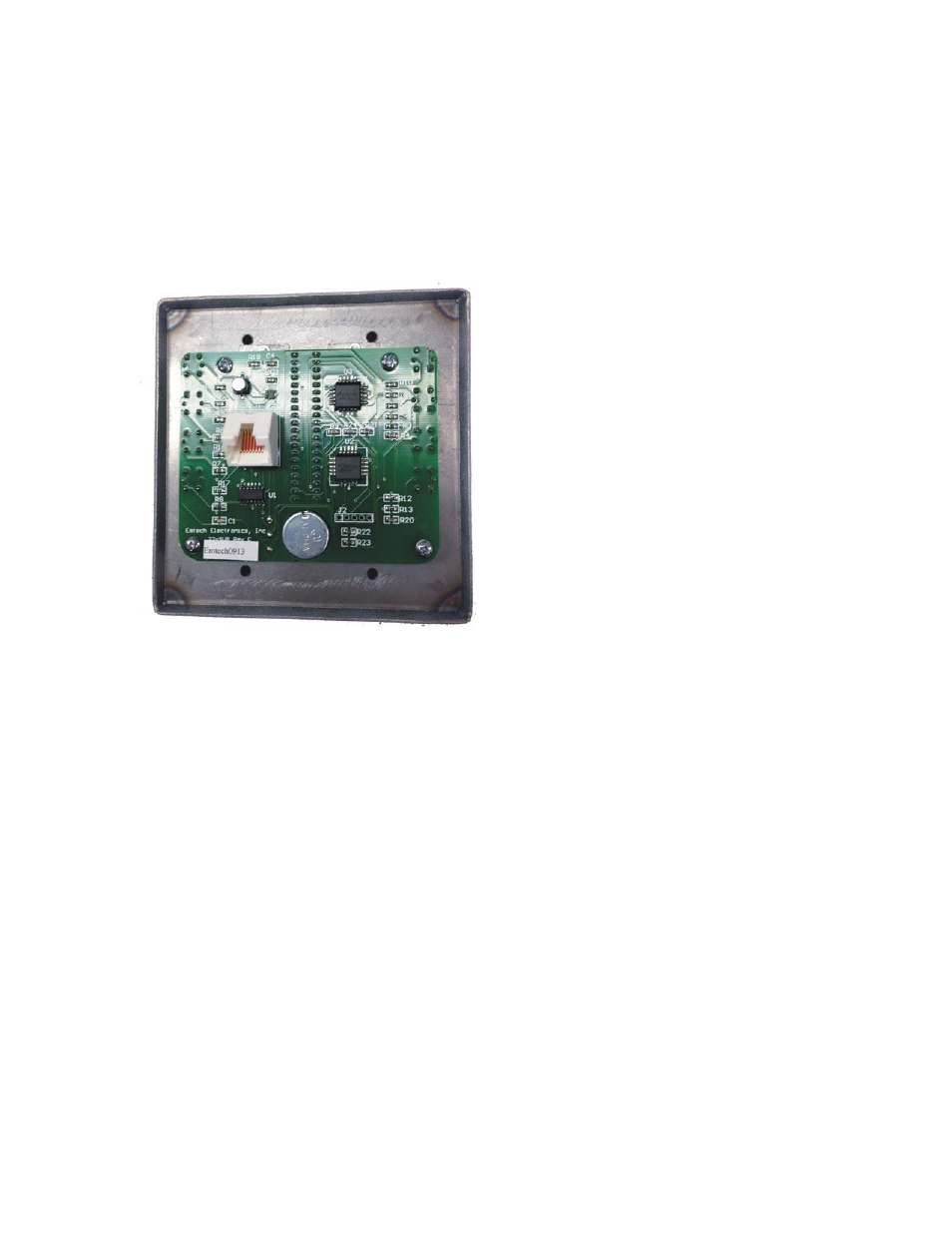

BLU-SV8T RJ-45 Pinouts
1. Source (Logic Input)
2. Volume (Logic Input)
3. VRef
4. Not Used
5. VCC (+5V)
6. Not Used
7. GND (C)
8. GND (C)
