11.0 READING THE CLASS 3400 METER
DISPLAY
The Class 3400 meter features seven different displays showing information in 5
second scrolling intervals. Explanations of these displays are as follows:

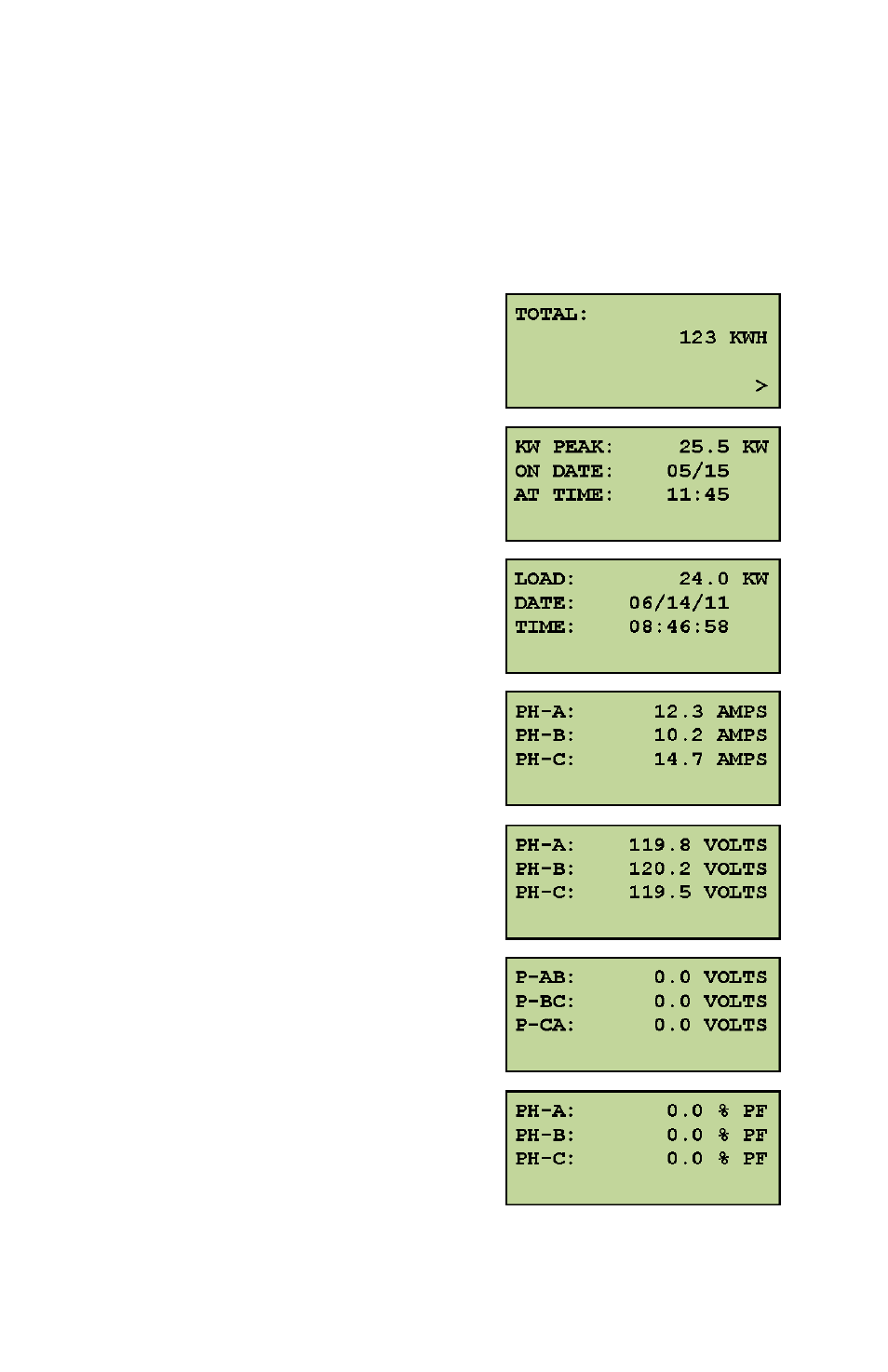

Fig. 21. Class 3400 Meter Display Screens.
Screen 1: Total Kilowatt-Hours (kWh)
Delivered
Screen 2: Peak Demand (kW)
with Date & Time Stamp
Screen 3: Actual Load (kW)
with Present Time
Screen 4: Average Current (amps)
Per Phase
Screen 5: Average Voltage (volts)
Per Phase
Screen 6: Average Voltage (volts)
Phase to Phase
Screen 7: Power Factor (pf)
Per Phase
