Installation Model

3300ZB

Teledyne Analytical Instruments

14

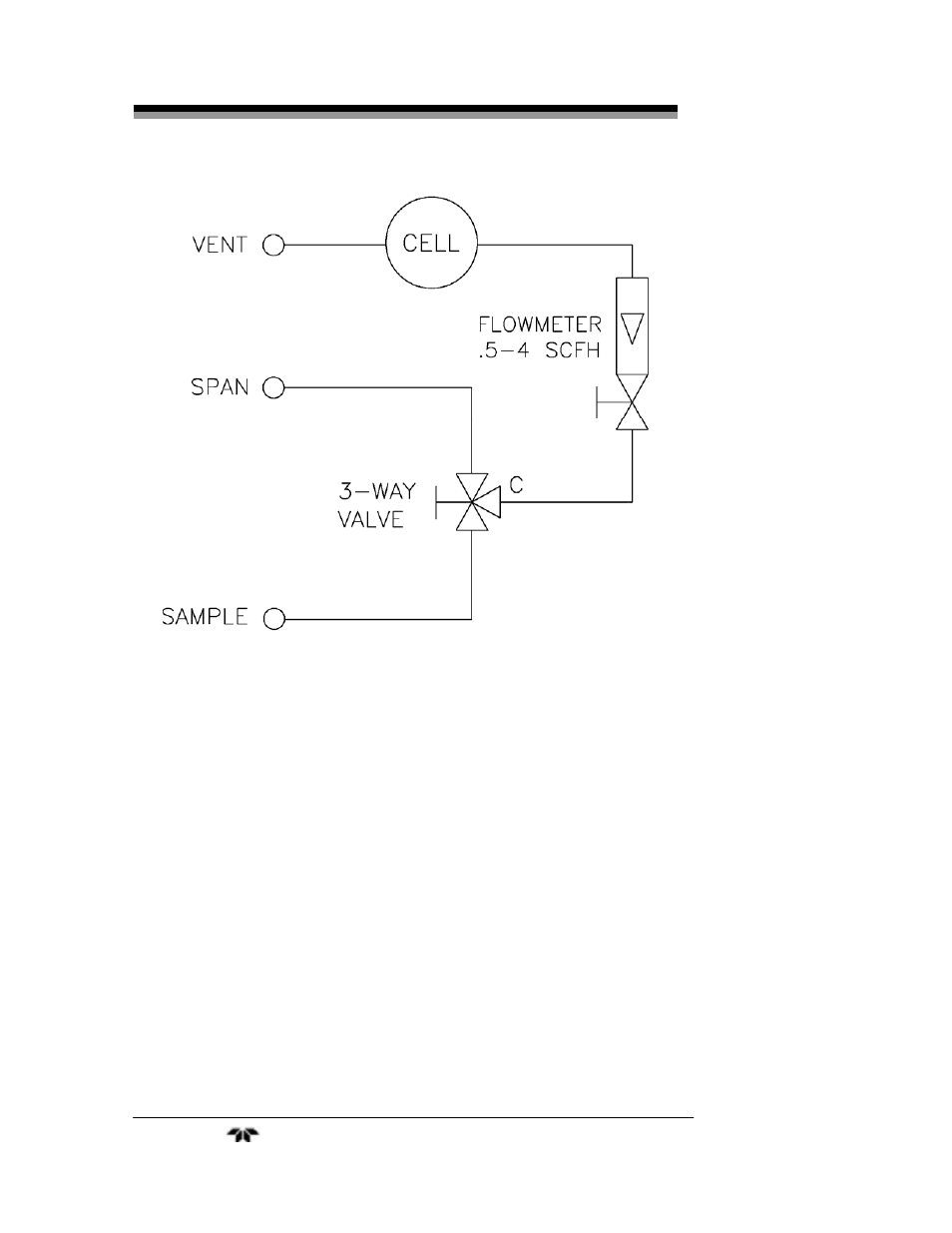

Figure 3-3: Piping Diagram

3.5 Installation Checklist

Before connecting the instrument to a power source and applying

power, make sure you have:

 Correctly installed the sample and exhaust gas lines
 Checked for leaks
 Set the sample pressure to 5-10 psig nominal

Once the above checks have been made, you can apply power. The

instrument is now ready for operation.
