Manual No/Rev
W72-019E / 4
Operators Instructions for
ACE80/100 Diesel Driven Centrifugal Pumps
Our policy is one of continuous improvement and we reserve the right to alter specifications at any time
Page 4 of 12
LIFTING
EYE
KEY
START
TOW
HITCH
LIGHTING BOARD
MOUNTING
JACK
STAND
DELIVERY
BAUER
SUCTION
BAUER
PRIMING
TANK
ENGINE
FUEL
TANK
1. INTRODUCTION
The purpose of this handbook is to provide
operating guidelines and routine maintenance
instructions for the SPP AUTOPRIME ACE
Range of mobile diesel engine driven pumps.
Instructions and statements contained within
this handbook are given with our best
intentions and are correct at the time of
compilation. They are subject to alteration at
any time.
These pumps are most commonly supplied
mounted on 2 wheel road trailers but can also
be supplied skid mounted, or as a pump unit
for customer’s to mount on a suitable chassis
or foundations.
ACE pumps are primed by a 25cfm vacuum
pump and are driven by a close coupled, air-
cooled diesel engine.
This Handbook covers the following pumps:
ACE80 – An automatic priming mobile pump
driven by a Hatz 1D90 diesel engine mounted
on a fuel tank and road trailer or skid. This
unit is fitted with 3” Bauer hose connections.
ACE100 – An automatic priming mobile
pump driven by a Hatz 1D90 diesel engine
mounted on a fuel tank and road trailer or
skid. This unit is fitted with 4” Bauer hose
connections.
2. SERIAL NUMBER
The serial number plate is attached to the
unit on the side of the priming tank.
This serial number must be quoted in any
enquiry for spares or service.
Where required, a trailer registration plate is
fitted to the front of the unit as required by
local regulations and the VIN number is
stamped on the fuel tank.

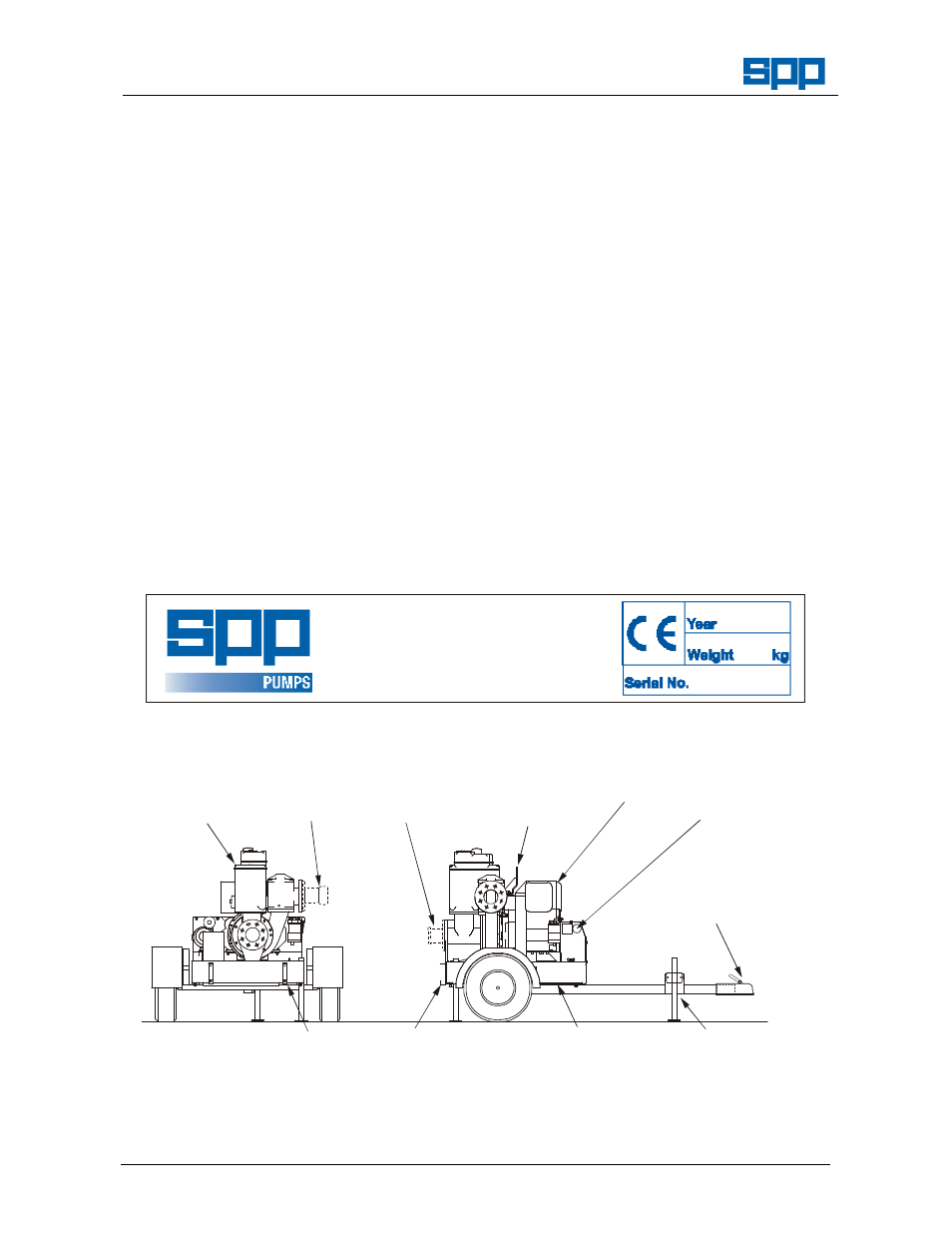

ACE Range Pump Components
