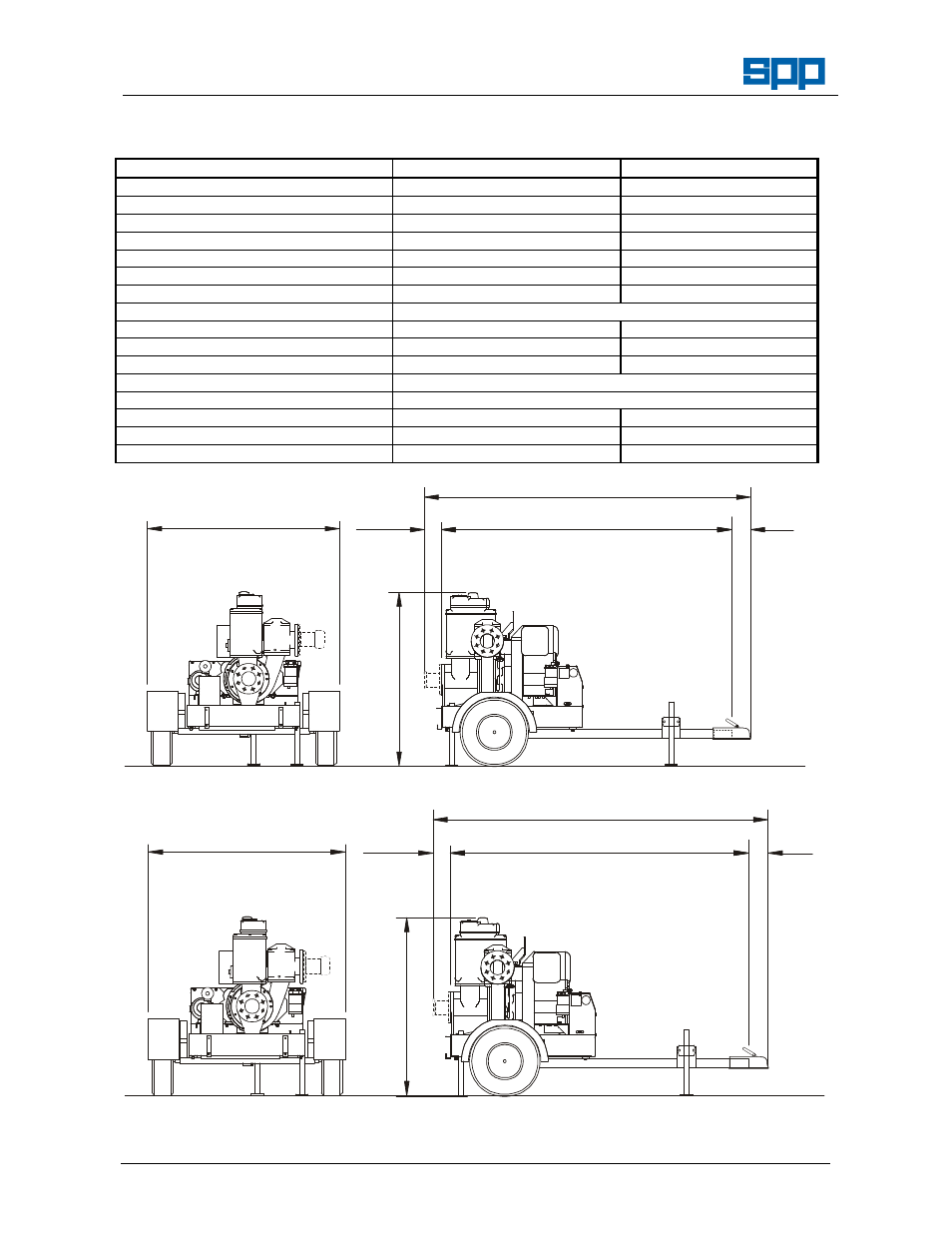

9. TECHNICAL DATA
CHARACTERISTICS ACE80/100 ACE80/100
Vacuum Pump 25 ft 3 /min 25 ft 3 /min
Solids Handling Capability 40 mm Diameter 1.5” Diameter
Engine Type Hatz 1D90 Air cooled Hatz 1D90 Air cooled
Fuel Tank Capacity 55 Litres 14.5 Gal (US)
Approx. Running Time On Full Tank 24 Hours 24 Hours
Impeller Back Plate Clearance 0.5 - 1.5mm 0.019 - 0.059”
Impeller Front Plate Clearance 0.38 - 0.5mm 0.015 - 0.019”
Mechanical Seal Coolant/Lubricant Mobil Velocite Oil No. 6, Texaco Rando HD10 Or equivalent
Weight Dry (No fuel in tank) 420 Kg 925 lbs
Weight (With full fuel tank) 470 Kg 1036 lbs
Hitch Weight Dry 32 Kg 70 lbs
Towing Hitch Types Towing Eye or Ball Hitch
Flange Drilling PN16 is standard, ANSI flange drilling is optional
1363mm
2320mm
2065mm 120mm 135mm
1
2
3
3
m
m
53.66”
91.34”
81.3” 4.72” 5.31”
4
8
.5
4
”
Note - These dimensions are approximate and may vary to suit the selected customer options.
