Fulton VMP Hot Water (VMPW) - Manual (Page 9)

Questions? Call (315) 298-5121, or visit us online at www.fulton.com
SECTION 2
VMPW-IOM-2012-1001
INSTALLATION
2-3
TABLE 1- DIMENSIONS- REFER TO FIGURE 1
Model VMP-W 40 50 60 80 100 130 150
Unit Size BHP 40 50 60 80 100 130 150
A. Boiler Diameter
IN
MM
49
1245
55
1397
55
1397
63
1600
69
1753
76.5
1943
76.5
1943
(B) Boiler Height
IN
MM
84
2133
91
2312
97
2464
100
2540
100
2540
115
2921
115
2921
(C) Boiler Depth
IN
MM
90
2286
100
2540
100
2540
114
2896
119
3022
128
3251
130
3302
(D) Boiler Height With Trim
IN
MM
107
2718
113
2870
119
3023
125
3175
125
3175
149
3785
149
3785
(E) Overall Boiler Width
IN
MM
56
1422
62
1575
62
1575
68
1727
74
1880
84.5
2146
84.5
2146
(F) Flue Outlet Diameter
IN
MM
12
305
12
305
12
305
14
356
14
356
14
356
14
356
(G) To Center of Flue Outlet
IN
MM
79
2006
83
2108
89
2261
95
2413
95
2413
107
2718
107
2718
(H) Return Water Inlet Height
IN
MM
20.3
516
20.3
516
20.3
516
20.3
516
20.3
516
23.6
599
23.6
599
(J) Water Outlet
IN
MM
73.8
1870
77.8
1980
83.8
2130
89.8
2280
89.8
2280
101.1
2570
101.1
2570
(K) Min. Clearance to Ceiling for Burner Removal
IN
MM
123
3124
135
3429
144
3658
147
3734
147
3734
155
3937
155
3937
All data is approximate. Fulton reserves the right to change data without prior notice.

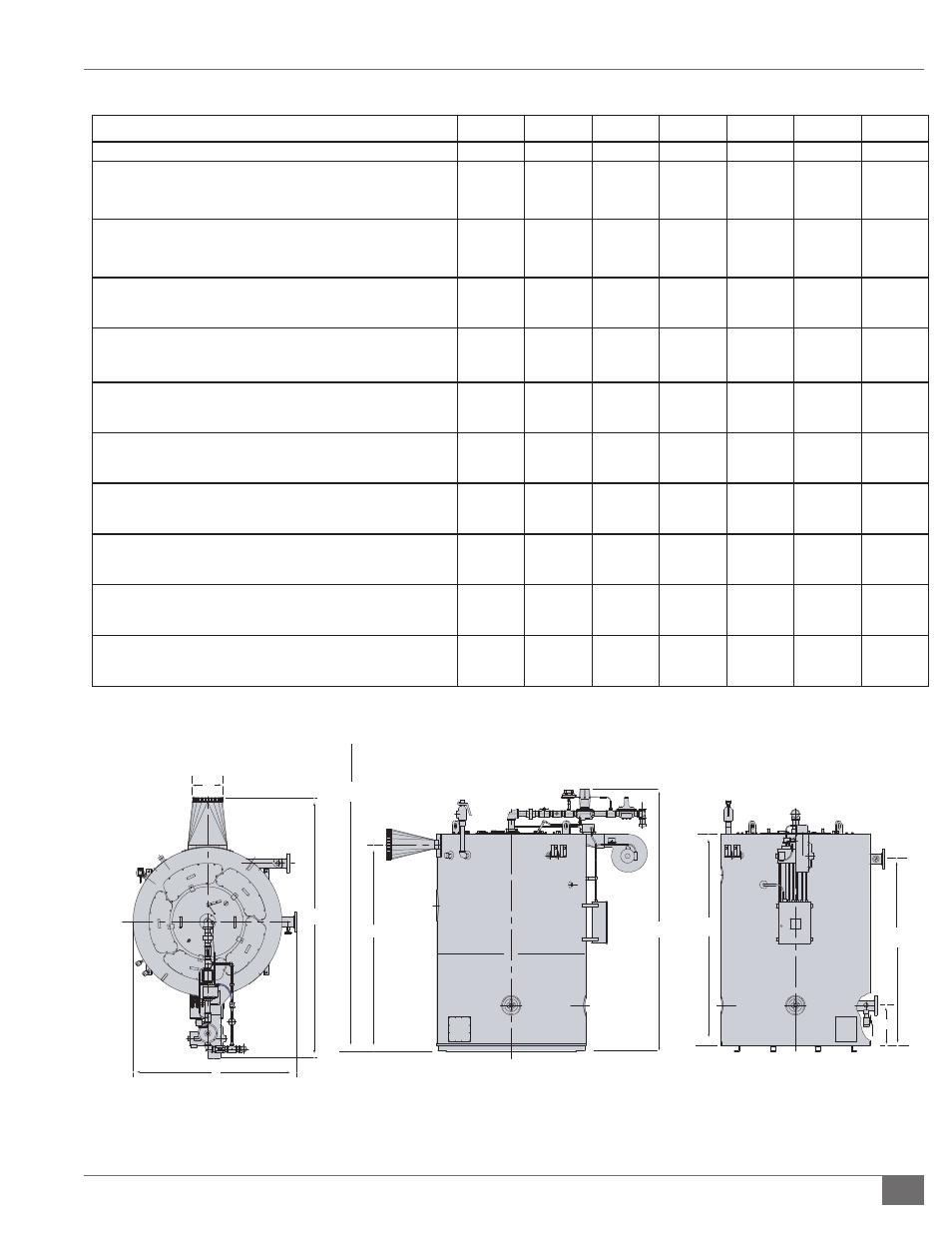

FIGURE 1 -MODEL VMP-W DIMENSIONS/SPECIFICATIONS (REFER TO TABLES 1 AND 2)
F
E
C
G
K
D
B
J
A
H
H.H.
