Electric oven power distribution – American Dryer Corp. AD-115 User Manual
Page 63
61
Telephone: (508) 678-9000
Fax: (508) 678-9447

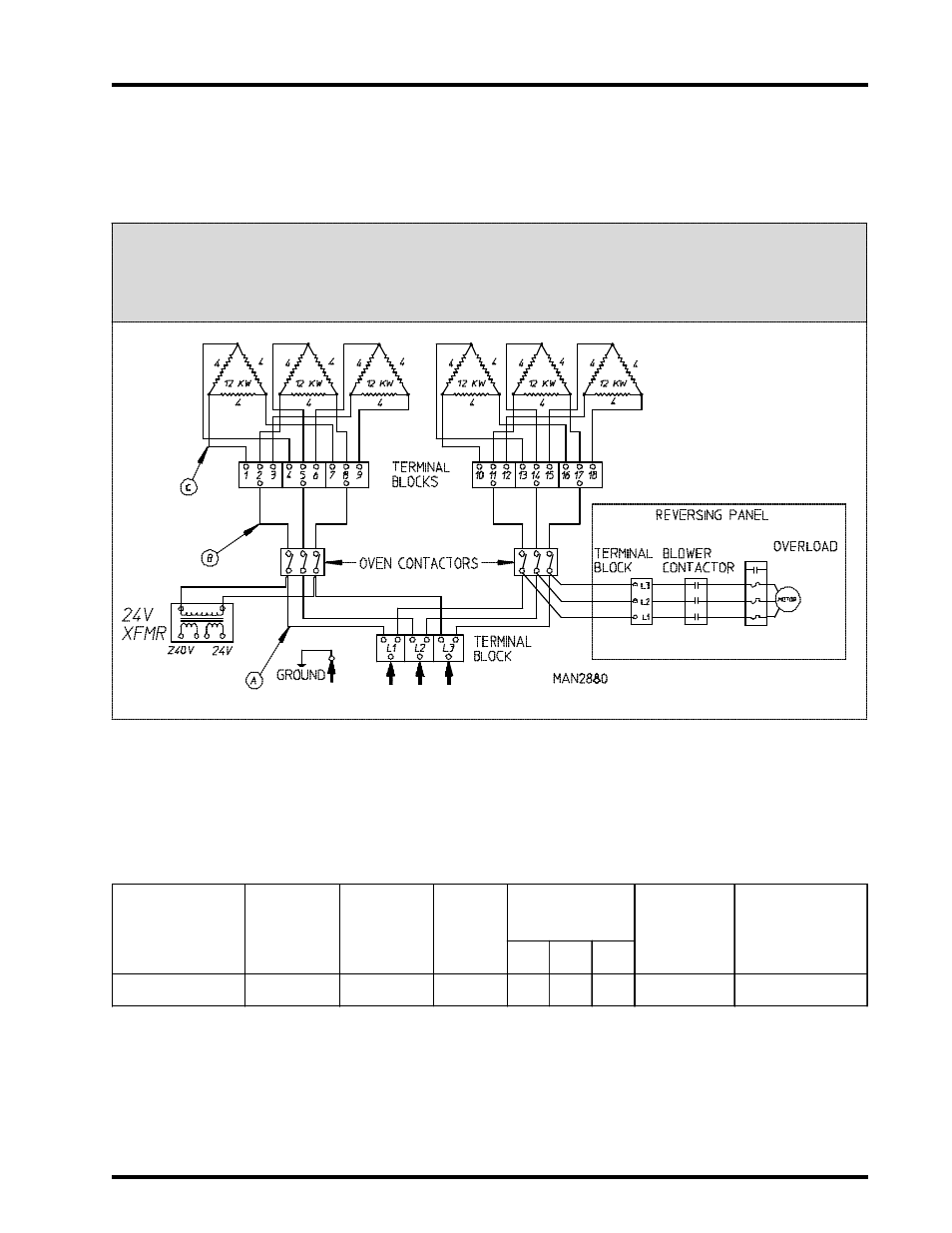

Electric Oven Power Distribution
for 72 Kw 600 VAC Microprocessor Models mfd. as of April 11, 1995
Electric
Service
Qty.
Elements
Element
Part
Number
Oven
Amps
Wire Service
Contactor
24 VAC
Step Down
Transformer
A
B
C
600v 3Ø 3, 4w
18
120028
69
8
8
18
131350
132097
MICROPROCESSOR
72 KW ELECTRIC OVEN POWER DISTRIBUTION
(600V 3
Ø 50/60 HZ)
