SECTION VIII
TECHNICAL INFORMATION
The following section contains various technical information important to the service person in servicing and
maintaining the dryer.
A. MOTOR DATA LABEL (HIGH AND LOW VOLTAGE)

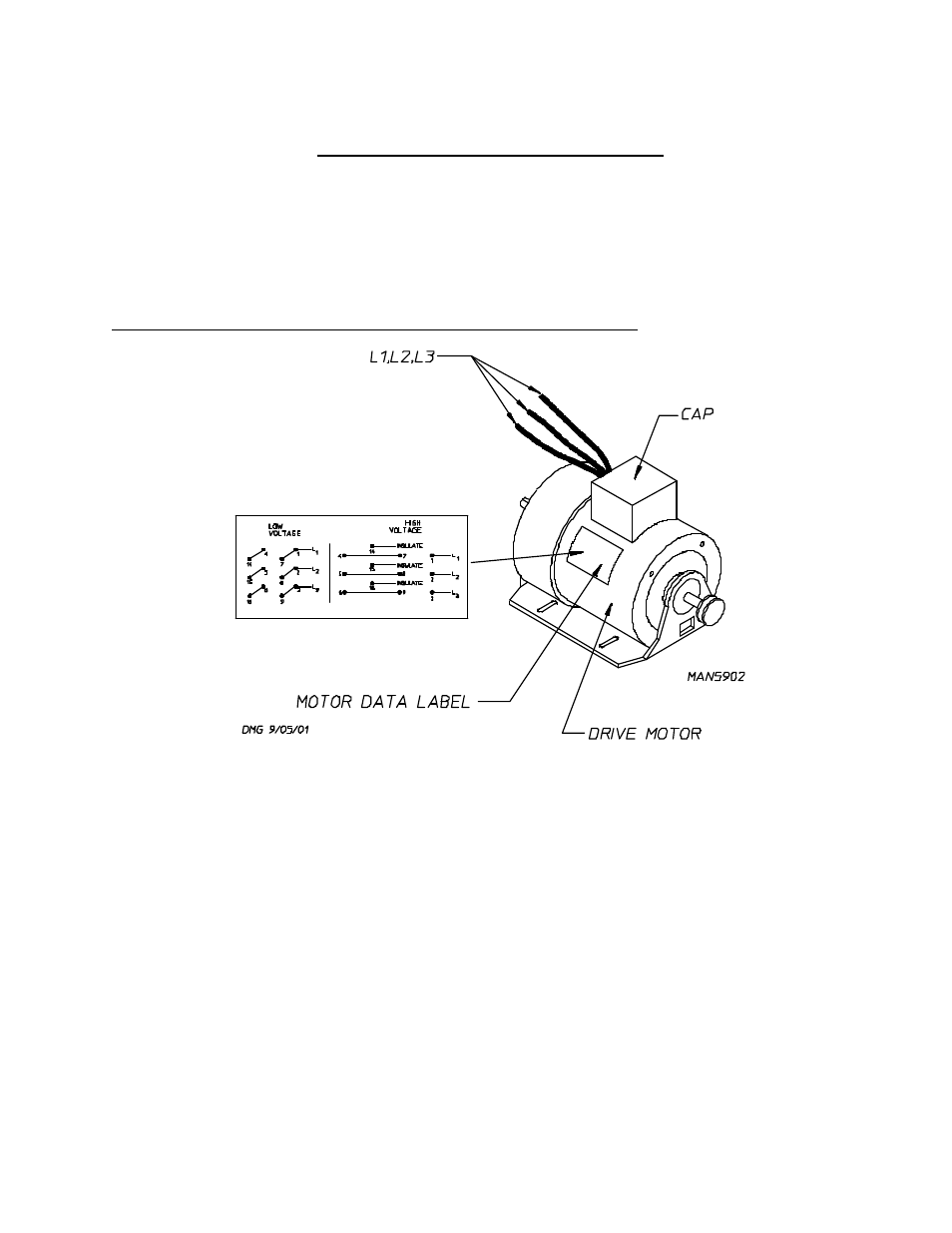

The motor plate is located on the side of the drive motor (refer to the illustration above) and contains a
graphical representation of the motor wiring for both low voltage rating and high voltage rating.
Removing the cap reveals the wiring to the motor. On each wire there is a tag with a number, which corresponds
to the number on the motor data label. Depending on whether the dryer is operating on low voltage or high
voltage, the wiring should match the motor data label as follows:
The dots and lines represent connections (refer to the illustration above).
For example:
On Low Voltage - wire #14 is connected to wire #4
- wire #1 is connected to wire #7, which in turn are both connected to L1
On High Voltage - wire #14 is insulated or capped
- wire #4 is connected to wire #7
- wire #1 is connected to L1
