Illus. No. 3 - BLOWER MOTOR INDICATOR - This indicator dot is on whenever a cycle is in progress. In
addition, when the anti-wrinkle program is active, this indicator will be on whenever the microprocessor controller
(computer) is in the guard program.
Illus. No. 4 - HEAT INDICATOR - This indicator dot is on whenever the microprocessor controller (computer)
is calling for the heating unit to be active (on).
Illus. No. 5 - REVERSE INDICATOR - This indicator is functional for models with the reversing action option
only. This indicator will be on when the basket (tumbler) is in the reverse (counterclockwise [CCW]) direction.
Illus. No. 6 - FORWARD INDICATOR - This indicator dot is functional only for models with the reversing
action option. This indicator will be on when the basket (tumbler) is in the forward (clockwise [CW]) direction.
In addition, when the anti-wrinkle program is active, this indicator dot will be on whenever the microprocessor
controller (computer) is in the guard program.

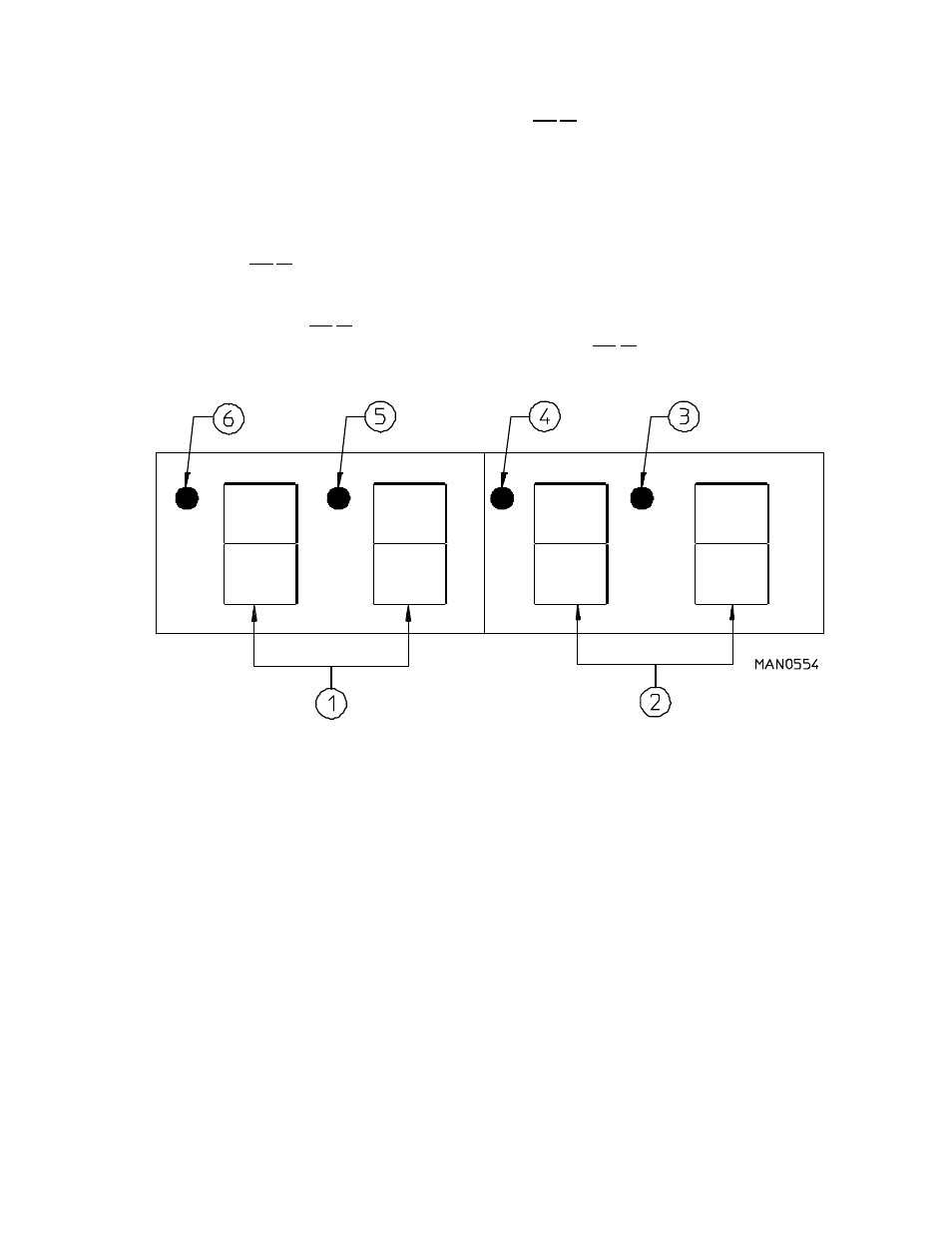

1. CYCLE IN PROGRESS
a. dr - DRYING CYCLE
b. CL - COOL DOWN CYCLE
2. CYCLE STATUS
a. AUTOMATIC MODE DISPLAYS % OF EXTRACTION
b. MANUAL MODE DISPLAYS DRYING TIME OR COOL DOWN TIME
3. ON INDICATOR, DRYER IS IN OPERATING MODE
4. HEAT ON INDICATOR
5. BASKET (TUMBLER) IN REVERSE MODE (Counterclockwise [CCW]) INDICATOR
6. BASKET (TUMBLER) IN FORWARD MODE (Clockwise [CW]) INDICATOR
