ASUS P5A User’s Manual

65

VII.

ASUS LAN Card

Parts/Layout

VII. ASUS LAN Card

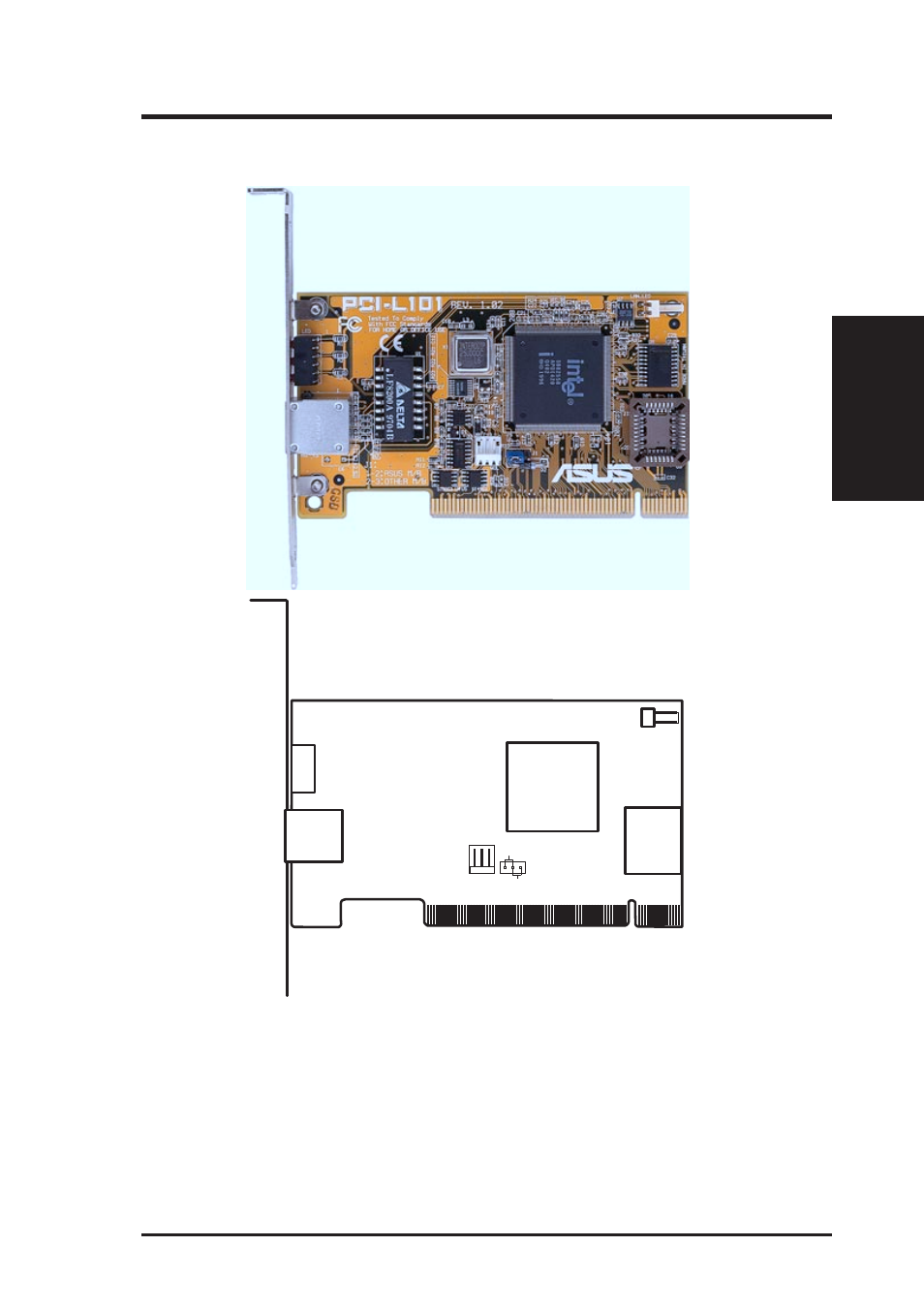

ASUS PCI-L101 Fast Ethernet Card

LAN Activity
Output Signal

RJ45

LEDs

Motherboard type

Wake on LAN
Output Signal

ASUS

Other

Intel
Chipset

If you are using the ASUS PCI-L101 on an ASUS motherboard, leave the jumper on
its defaut setting of “ASUS.” If you are using another brand of motherboard, set the
jumper to “Other.” Connect the Wake on LAN (WOL) output signal to the
motherboard’s WOL_CON in order to utilize the wake on LAN feature of the moth-
erboard. Connect the LAN activity output signal (LAN_LED) to the system cabinet’s
front panel LAN_LED to display the LAN data activity.
