© 2008 • All rights reserved. 15
DLA2/4/6 Speaker Level Audio Router
IR EMITTER OUTPUTS

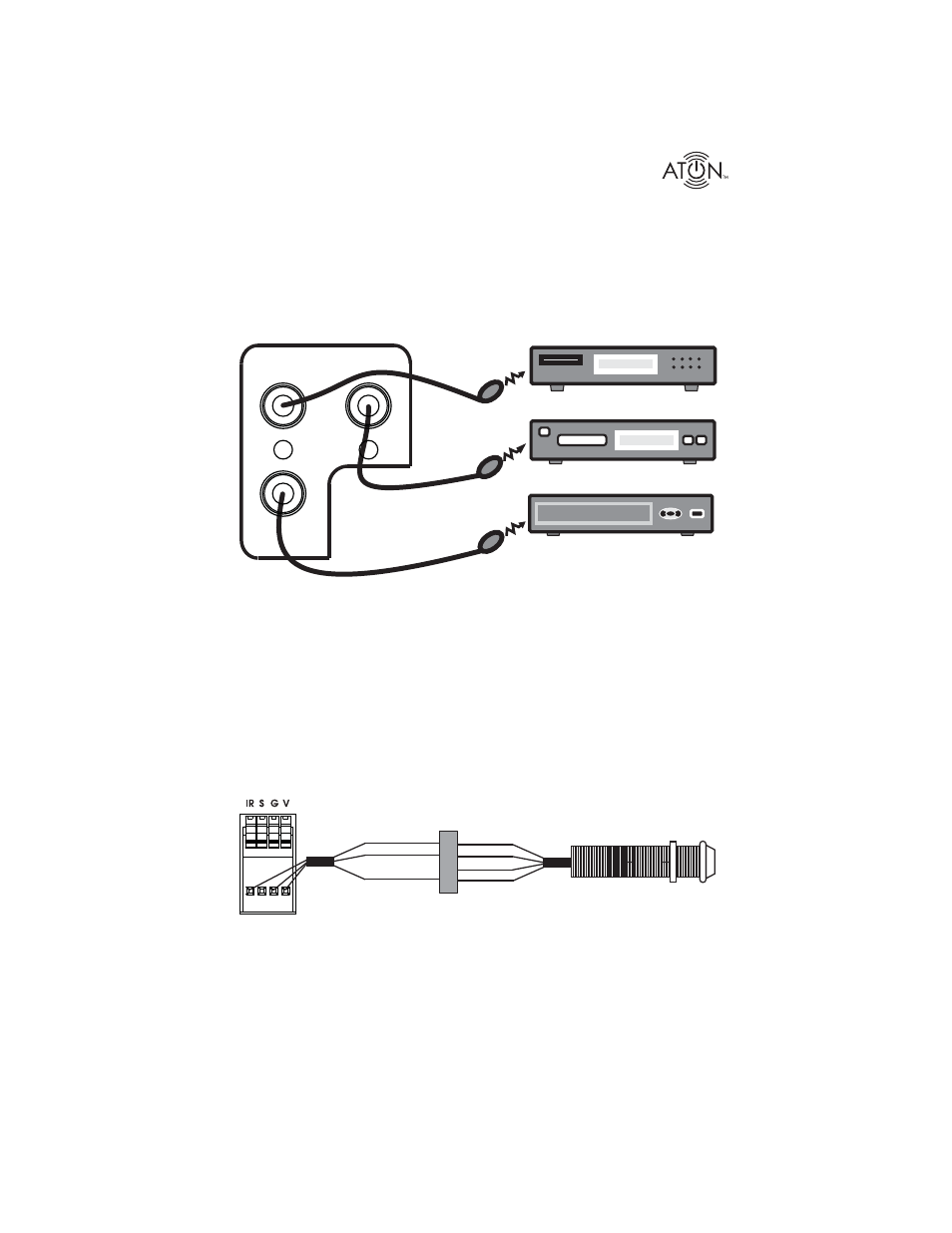

Three IR Emitter outputs are provided for controlling components such as A/V Receivers, DVD
Players, CD Players, Digital Music Servers, etc. Any IR signal received by a Room IR INPUT will
be sent out of ALL of the IR EMITTER OUTPUTS.
A/V Receiver
Satellite
DVD
IR
Mini-Emitters
DLA2/4/6
IR
Mini-Emitters
IR EMITTER OUTPUTS
Figure 3-3: IR EMITTER OUTPUTS
ROOM IR INPUTS
IR Receiver Connections
The DLA2/4/6 features an IR Receiver Input for each room. To facilitate IR control of each
room, connect a standard IR receiver (such as ATON’s AIR1, AIR3, AIR5 and/or AIR6) to these
inputs as shown in Figure 3-4. Each IR receiver will send IR signals to the DLA2/4/6 and control
the room it is connected to.* Cat-5 cable can be used to extend the length of the IR receiver’s
connecting cable. Provisions exist for IR, Ground, and Voltage.
IR Input
AIR3
(or other ATON
IR Receiver)
Splice t
o
Cat-5 Wire
Red (+12V)
Black (G)
Yellow (N/C)
White (IR)
Wh/Green (+12V)
Brown (G)
Wh/Blue (IR)
Cat-5
Figure 3-4:
IR Receiver Connections
* System-wide control from one IR receiver location is possible using DLA discrete IR codes.
See Appendix C-3.
