Aquatic HOTSOAK 84 AI7236SVHS - Manual

126
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
August 2008

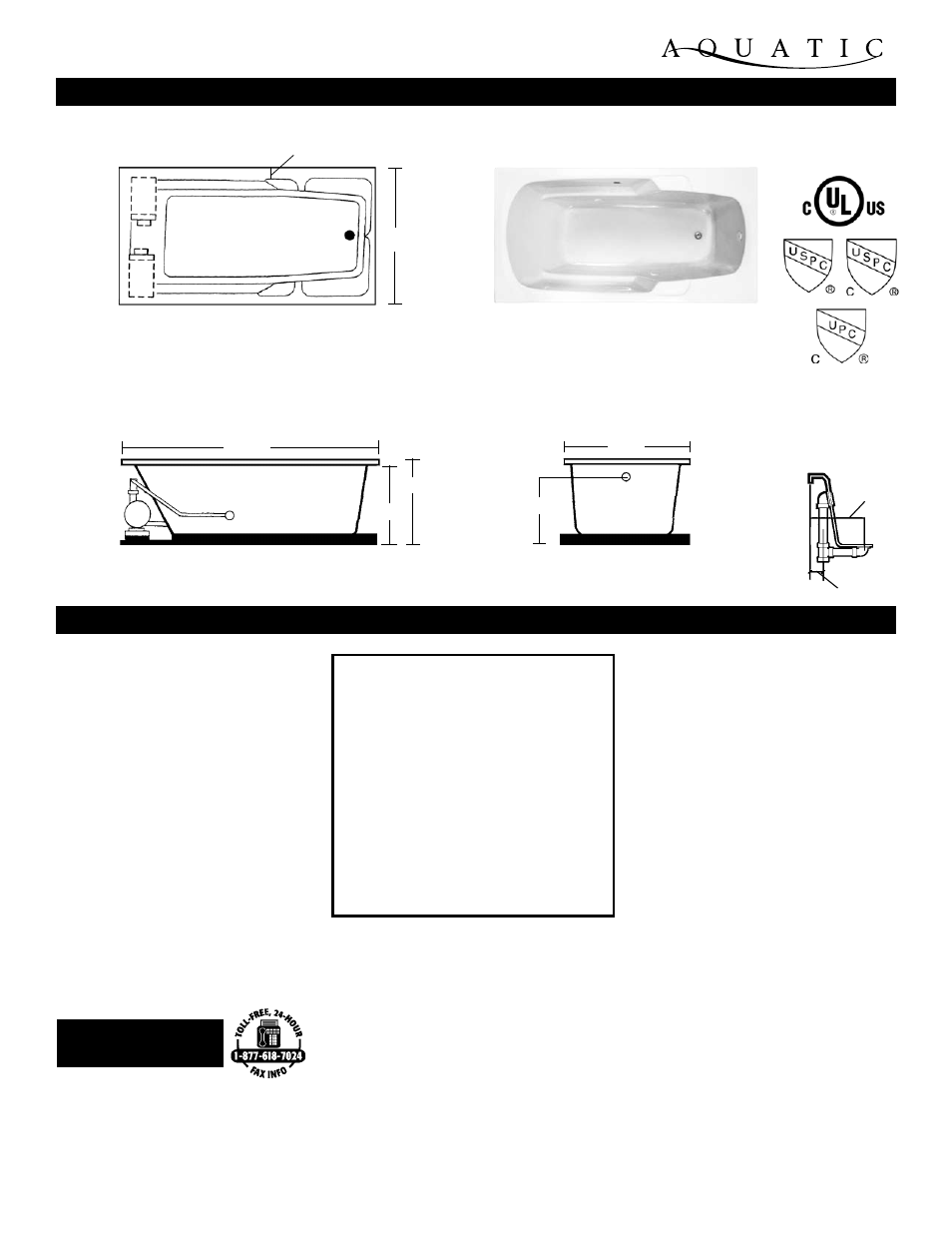

Rough-In Plumbing
Measurements
hOTSOAk 84
GeneRal SPecIfIcatIonS:
Tub Size 71 1/2” x 35 5/8” x 20 3/4”
182 cm x 90 cm x 53 cm
Bathing Well 45” long
20” wide
19 3/4” interior depth
Shipping Weight 147 lbs. / 67 kg
Tub Weight Filled 637 lbs. / 289 kg
Tub Only Weight 89 lbs. / 40 kg
Gallons to Overflow 62 gal. / 235 L
electRIcal SPecIfIcatIonS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
•
Chromatherapy LED Lighting*
• Comfort Pillow - Oval or Rectangle
•
Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
•
Factory Installed Rigid ABS Tile Flange
• Optional Pump Location
•
Color Matched Acrylic Skirt
• Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal equIPMent:
hOTSOAk SERIES
Model # ai7236SvhS
aquatic quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- 2 Arm Rests
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document #1259
35 5/8”
17 1/4”
20 3/4”
19 1/4”
35 5/8”
Deck Width
2”
71 1/2”
5 1/4”
12”
2
1
