Irda infrared module header: jir1 – Acer 3300S User Manual
Page 89
83
Chapter 5

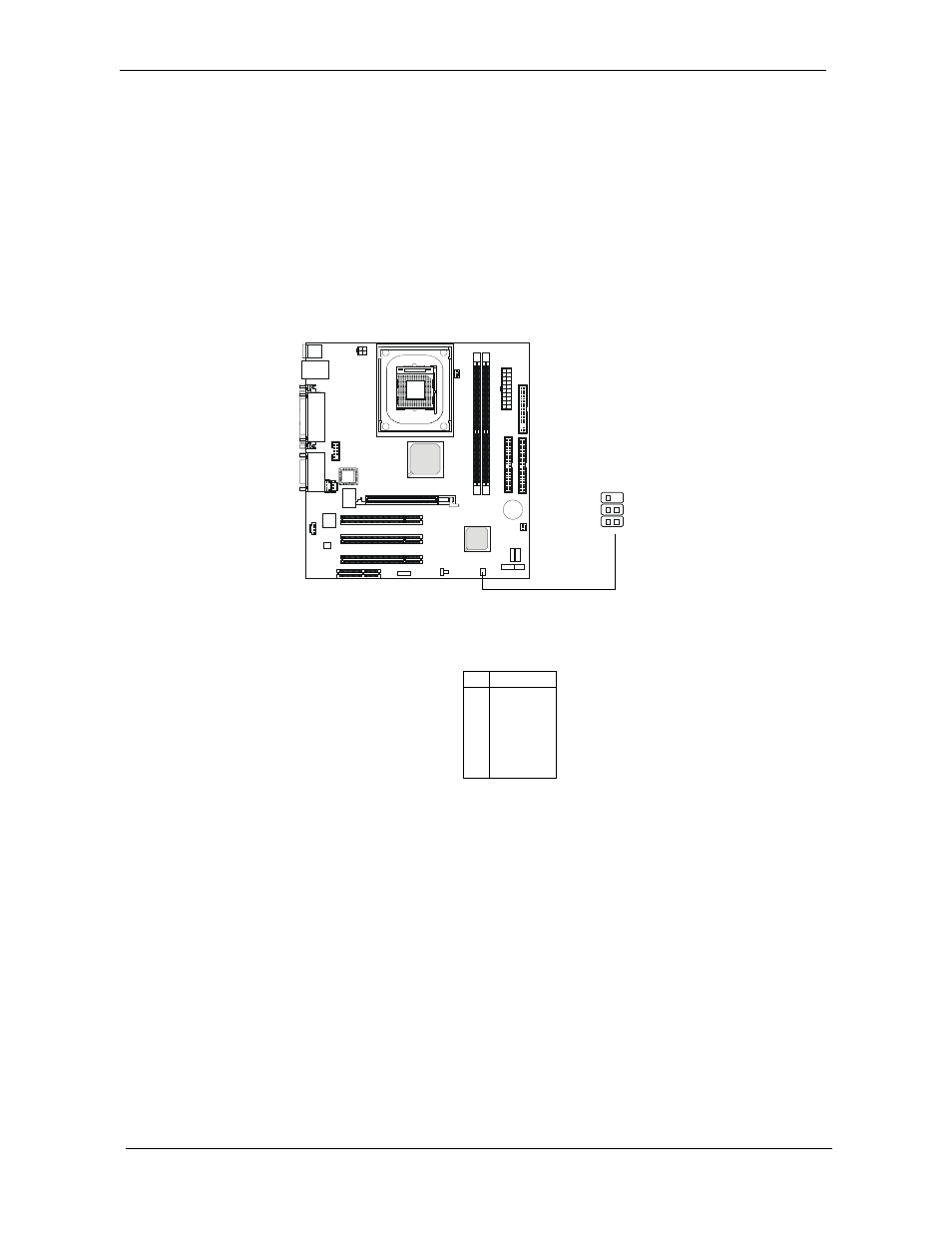

IrDA Infrared Module Header: JIR1
This connector allows you to connect to IrDA Infrared modules and is
compliant with Intel
®
Front Panel I/O Connectivity Design Guide.
You must
configure the setting through the BIOS setup to use the IR function.
1 2
JIR1
5 6
Pin
Signal
1
NC
2
NC
3
VCC
4
GND
5
IRTX
6
IRRX
JIR1 Pin Definition
