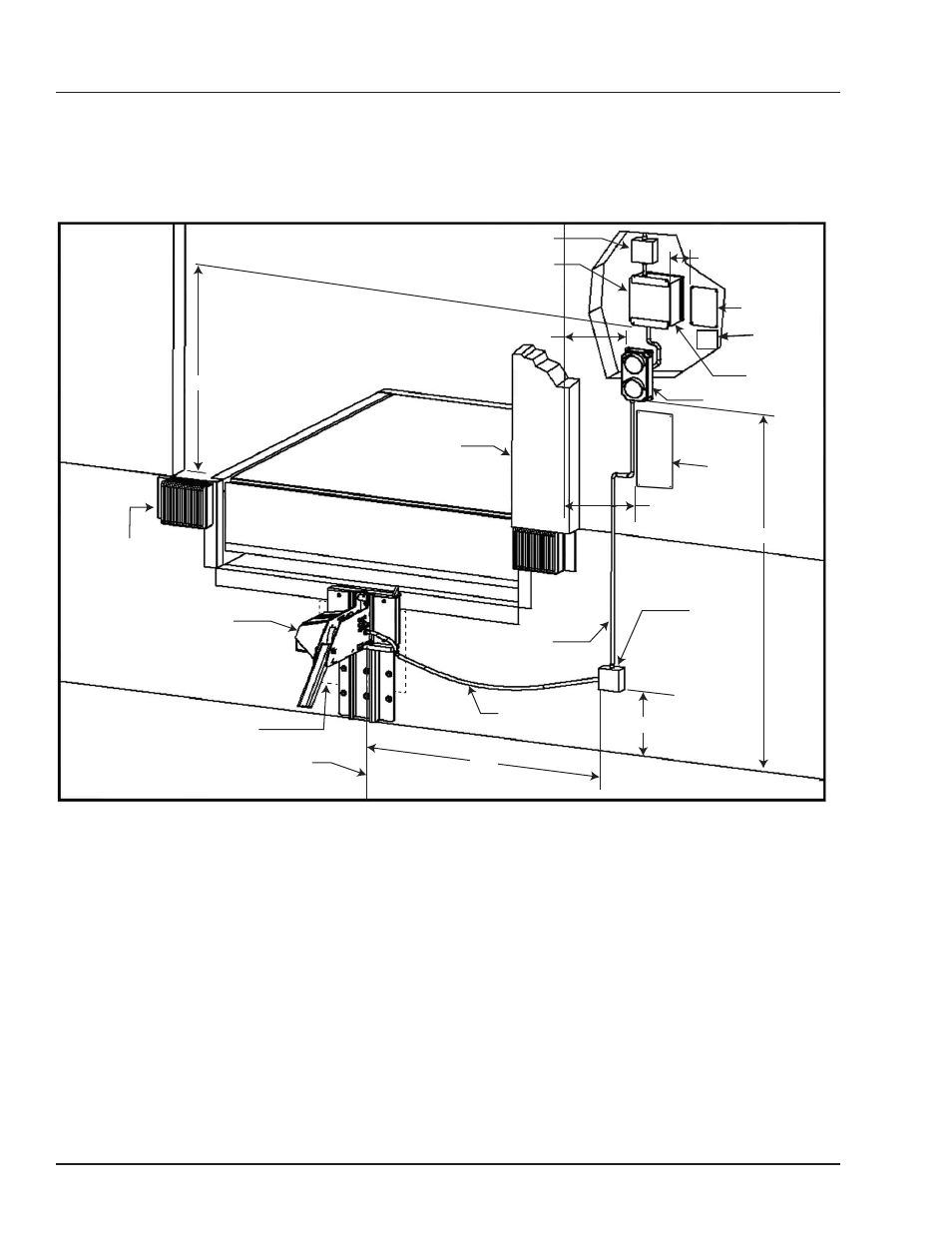

INSTALLATION
“TPR”
Center Line of
Dock and TPR
55”
48”
Allow adequate space
for seals and shelters
5”
96”
18”
15”
Wire Harness
3/4” Conduit or
Diameter per Local Code
(Supplied by others)
Junction box
mounted on
dock face, not
to extend out
more than 3”
(Supplied by
others)
Dock Seal
Inside light
and control
box
Outside lights
Inside
Caution sign
Place control box where best suited, within
arms reach, at eye level near door opening
Outside
Caution
Sign
Optional imbed
plated (20”x20”)
4” Thick Bumpers
Disconnect
(supplied by others)
Placard
