Adjust Lip Stop Bolt
Check that lip (E) is fully resting on the lip keepers
(D) and at the lowest part of the keeper cradle. If lip is
not resting properly in keepers, perform the following
adjustment.
1. Fully raise platform and engage the maintenacne
prop. Manually raise the lip and engage lip
maintenance prop.
2. Loosen jam nut (B).
3. Adjust stop bolt (C) as necessary.
• Turn stop bolt “in” (clockwise) to allow lip to fold
closer to platform frame (A).
• Turn stop bolt “out” (counterclockwise) to hold
lip further away from platform frame (A).
4. Tighten jam nut.
5. Disengage lip maintenance prop.
6. Push RAISE button, dis engage maintenance prop,
allow platform to lower to cross-traffic (stored)
position.
7. Check lip position in both keepers. Repeat procedure
if necessary.

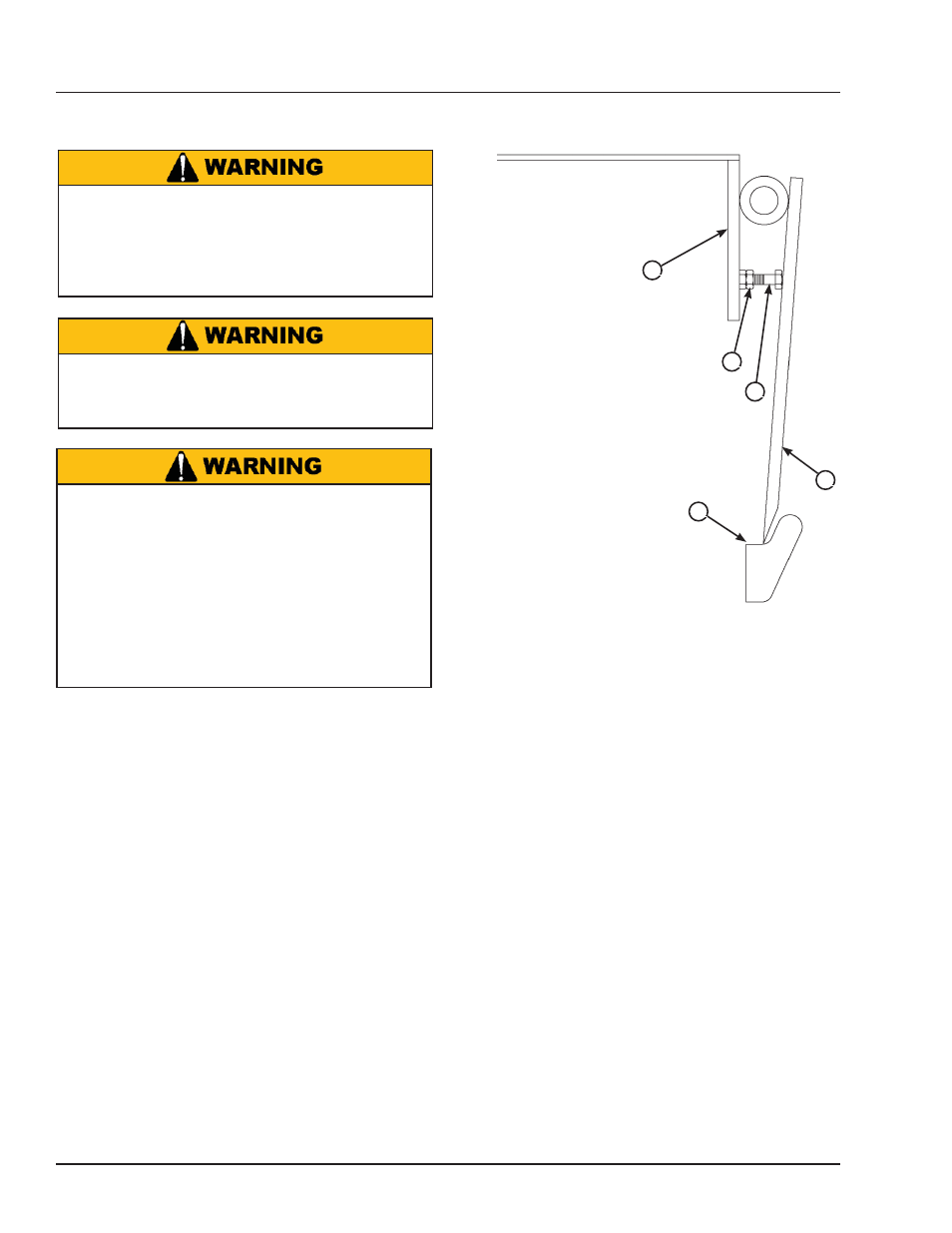

A— Platform Frame
B— Jam Nut
C— Stop Bolt D — Lip Keeper
E — Lip
Always stand clear of the dock leveler lip when
working in front of the dock leveler. Failure to do this
may result in serious personal injury or death.
The platform maintenance prop MUST be in the
service position when working under the dock
leveler. For maximum protection, use an OSHA
approved locking device to lock the maintenance
prop in the service position. Only the person
servicing the equipment should have the key to
unlock the maintenance prop.
Failure to follow these instructions may result in
serious personal injury or death.
Always post safety warnings and barricade the
work area at dock level and ground level to prevent
unauthorized use of the dock leveler before
maintenance is complete. Failure to do this may
result in serious personal injury or death.
