Poweramp AP SERIES AIR POWERED - Manual (Page 13)

11
4111-0009 — Aug 2012
Jan 2013

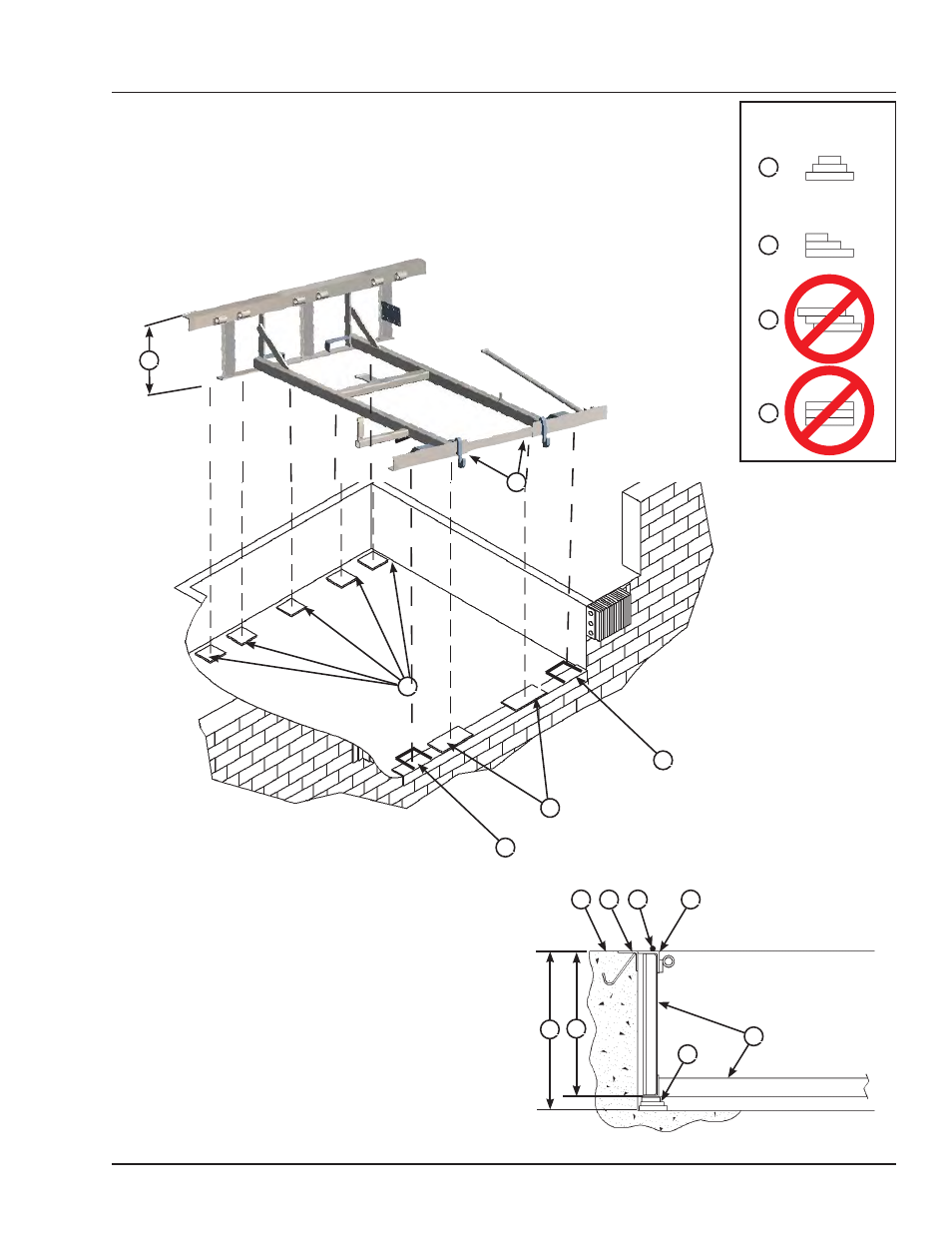

INSTALLATION
A— Distance (Leveler Frame
Height)
B— Shim Locations (Under
Rear Vertical Supports)
C— Shim Location (Under
Lip Keepers)
D— Shim Locations (Under
Lip Keepers)
E— Dock Floor
F— Rear Pit Curb Angle
G— String
H— Rear Hinge Frame Angle
J— Distance (Dock Floor-to-
Pit Floor)
K— Distance (Top of Shim
Stack-to-Dock Floor)
L— Shim Stack
M— Dock Leveler Frame
N — Pyramid (Preferred)
P— Stepped (Acceptable)
Q— Offset (Not Acceptable)
R — Straight (Not Acceptable)
S— Removable Frame Section
T— Shim Location Under
Snubber
Spring)
U— Shim Location
(Maintenance Prop)
Install Dock Leveler
K
D
U
T
K
F
L
H
M
G E
J
N
P
Q
R
Shim
Stacking Methods
B
T
