Page 40

4111-0012 — Aug 2012

April 2013

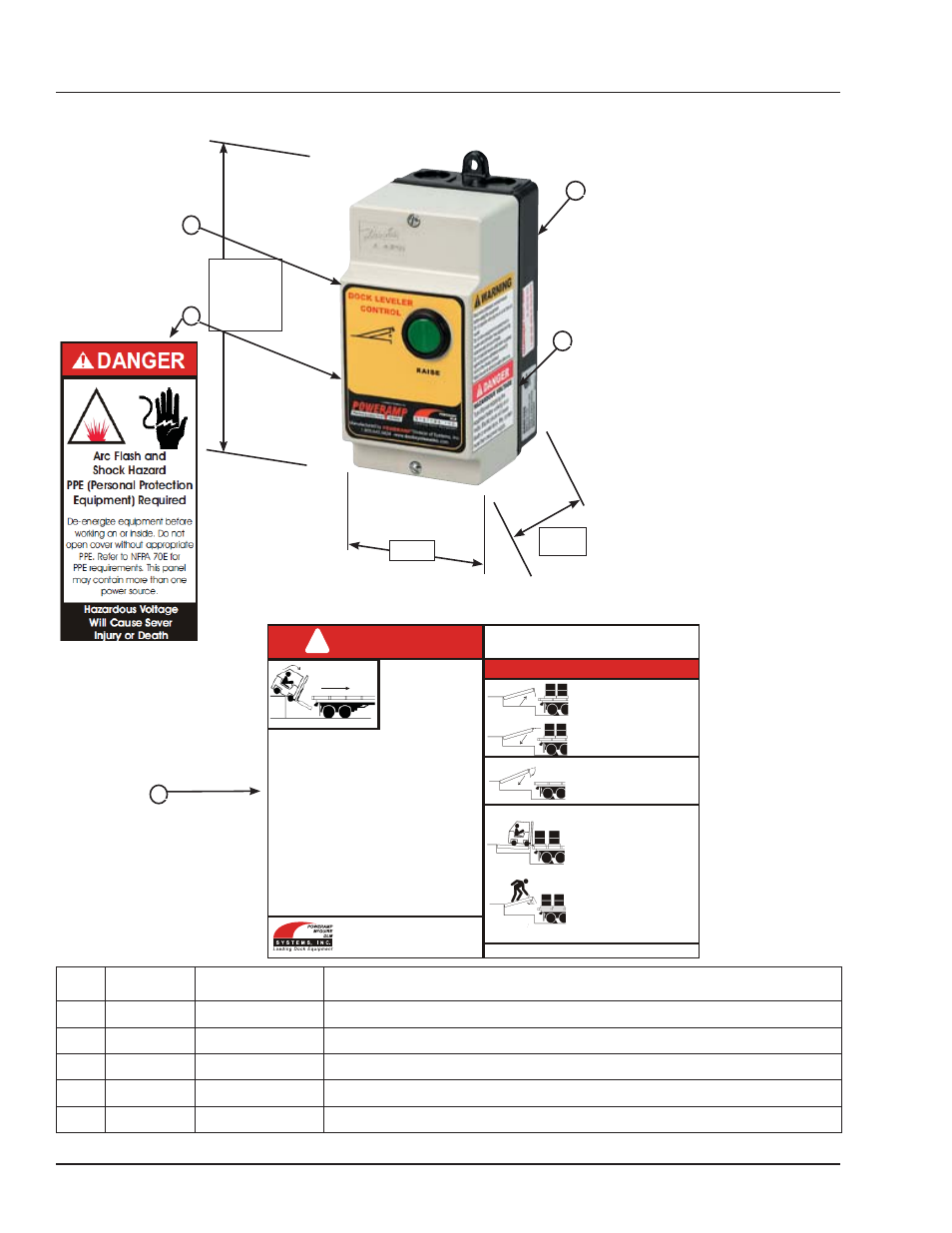

Item

Quantity Part

Number

Description

7141-0216

Push Button Controller,

1751-0247

Decal (English)

1751-0477

Decal (English)

1751-0736

Decal Arc Flash

1751-0878

Placard,

7-1/8
Hole
centers

3.50

4.50

Control Box

NORMAL OPERATION

NOTE: If equipped, depressing E-STOP button will stop platform from lowering.

1 Raise the platform by depressing and

holding the RAISE button.

2 Hold the RAISE button until the lip is fully

extended, then release the RAISE button.
The platform will lower until lip is resting on
the transport vehicle.

STORING LEVELER

1 Depress the RAISE button until the lip is

completely folded. When the lip is folded
release the RAISE button. The platform will
lower returning to the cross-traffic position.

BELOW DOCK ENDLOADING

DANGER

! R e a d a n d f o l l o w a l l

instructions, warnings and
maintenance schedules in the
manual and on placards.

! Operation and servicing of

dock leveler is restricted to
trained personnel.

1.262.255.1510 or 1.800.643.5424

Call for additional placards, or manuals, or with questions
regarding proper use, maintenance, and repair of dock leveler.

www.

DockSystemsInc.com

! Always chock transport vehicle wheels or engage vehicle restraint

and set parking brakes before operating dock leveler or beginning
to load or unload.

! Before activating dock leveler, ensure lip avoids contact with

transport vehicle sides and cargo. If lip does not lower to transport
vehicle bed, reposition transport vehicle.

! Ensure the transport vehicle floor supports extended lip or the

leveler frame (lip keepers or below dock endload supports)
supports the ramp before driving on ramp.

! Stay clear of hinges and front and sides of moving dock leveler.

! Never use hands or equipment to move the ramp or lip.

! Never use damaged or malfunctioning dock leveler. Report

problems immediately to supervisor.

! Always store dock leveler and remove people, material, and

equipment from ramp before vehicle leaves the dock.

! DO NOT ENTER PIT unless dock leveler is securely supported by

the maintenance prop.

! Disconnect power and follow proper lockout/tagout procedures for

the dock leveler before entering the dock leveler pit or doing any
repair or inspection under the dock leveler.

O P E R A T I N G

INSTRUCTIONS

1751-0874

POWERED DOCK LEVELERS

! (HYDRAULIC ONLY) Depress and hold the

RAISE button until the leveler is fully raised.
As the lip starts to extend, release the RAISE
button. The leveler will lower to the below
dock position provided the lip extension
allows the lip to clear the lip keepers.

! (AIR POWERED ONLY) Depress and hold

the RAISE button until the leveler is 12”
above dock level. Pull the below dock level
chain until the leveler passes the below dock
position.

! (HYDRAULIC WITH INFINITE LIP

CONTROL) If equipped raise the platform by
depressing and holding the RAISE button.
When the lip is just above the lip keepers,
simultaneously depress and hold the RAISE
button and the LIP OUT button until lip has
extended beyond the lip keepers. Release
both buttons.

FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN DEATH OR OTHER SERIOUS

INJURY.
