INSTALLATION

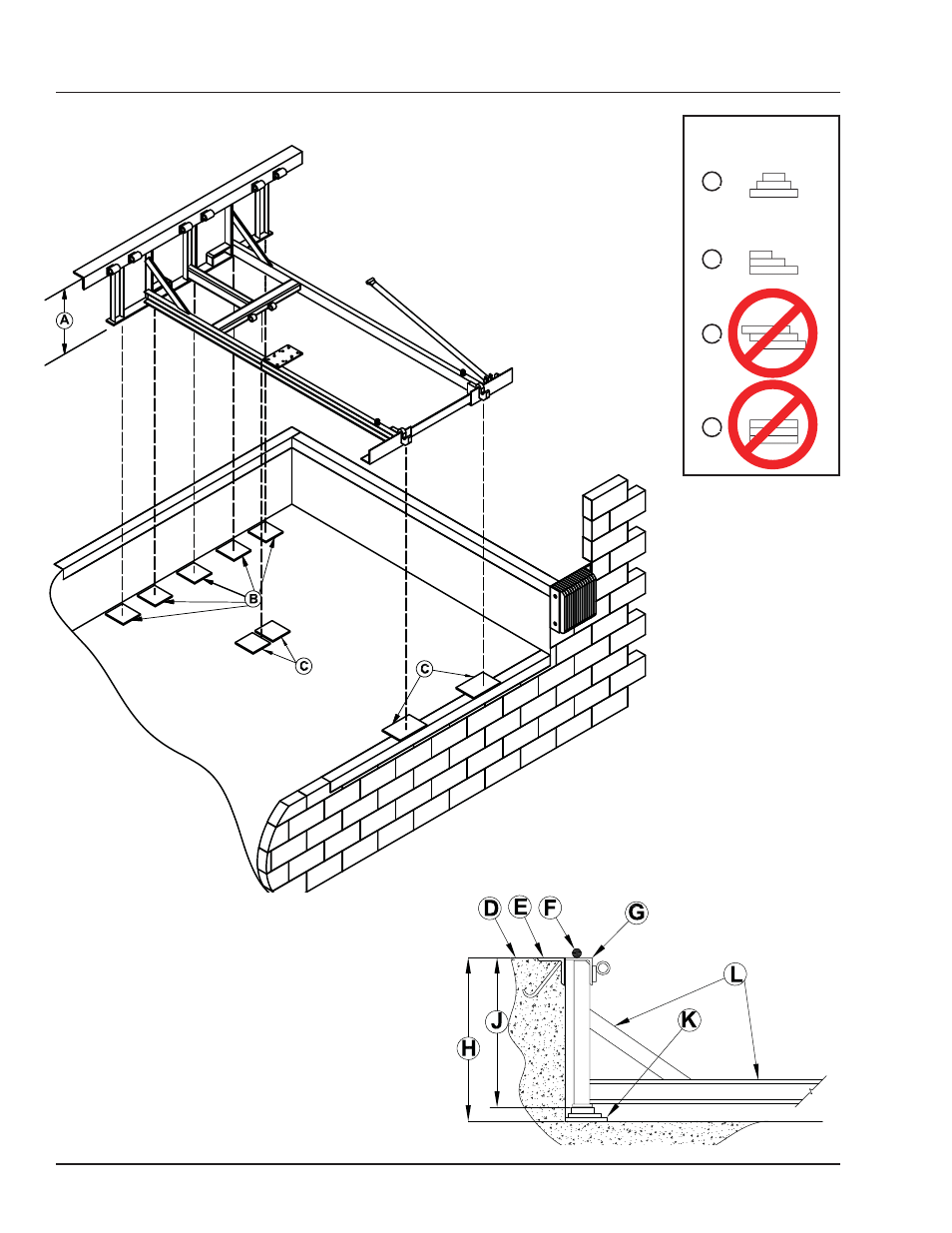

A— Distance (Leveler Frame
Height)
B— Shim Locations (Under
Rear Vertical Supports)
C— Shim Location (Under
Maintenance Prop,Lip
Keepers, Main Cylinder)
D—Dock Floor
E— Rear Pit Curb Steel
F— String
G— Rear Hinge frame Angle
H— Distance (Dock floor-To-
Pit Floor)
J— Distance (TOP of Shim to
Dock Floor
K— Shim Stack
L— Dock Leveler Base Frame
M — Pyramid (Preferred)
N— Stepped (Acceptable)
P— Offset (Not Acceptable)
Q — Straight (Not Acceptable)
Install Dock Leveler
M
N
P
Q
Shim
Stacking Methods
