SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
October 2007

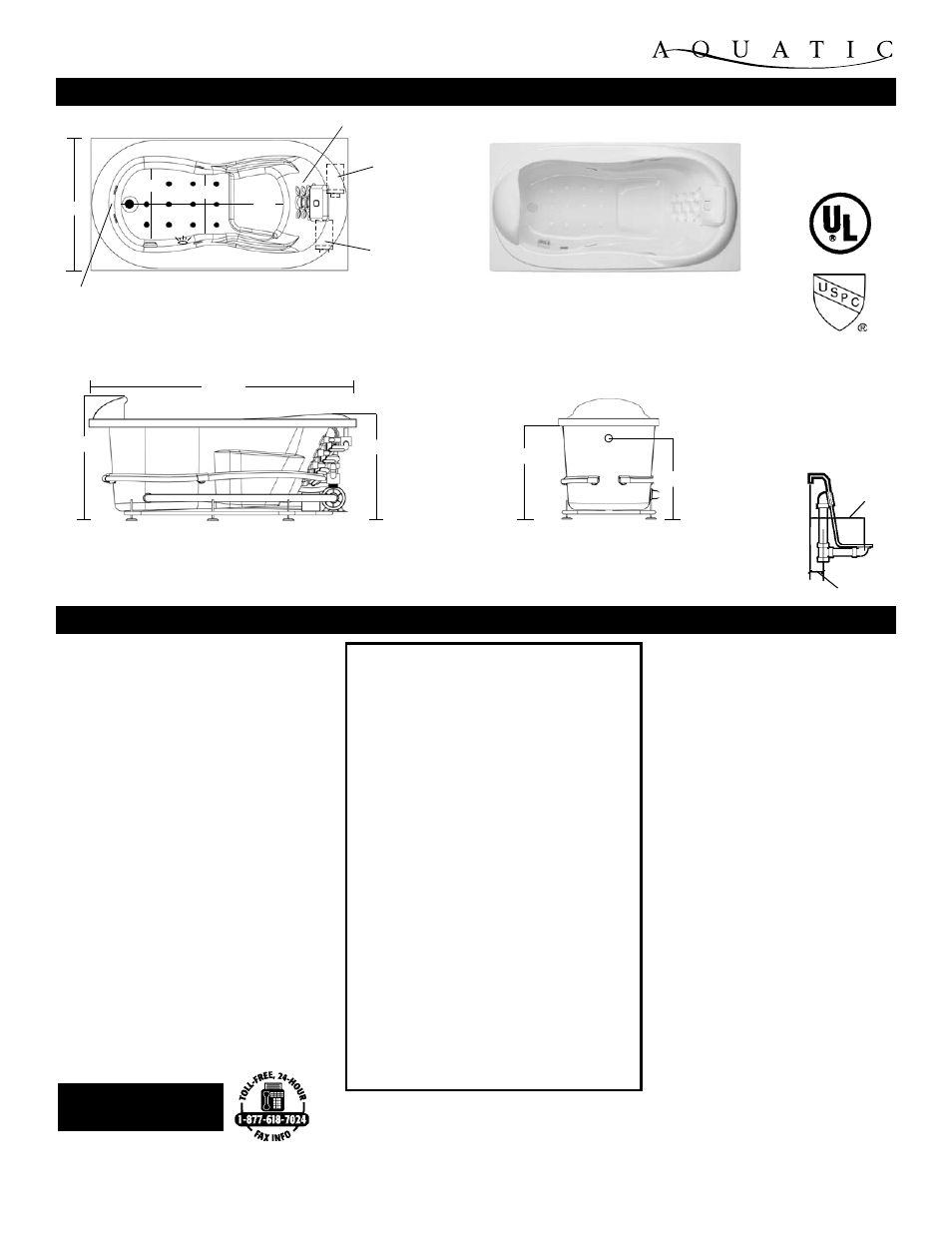

Rough-In Plumbing
Measurements
INFINITy SErIES
model # AI3INF7236
GeneRal SPecIfIcatIonS:
Tub Size 71 1/2” x 37” x 30 3/4”
182 cm x 94 cm x 78 cm
Bathing Well 44” long
20” wide
22” interior depth
Maximum Water Depth 18 1/2”
Seat
13 1/2” long
15” wide
Shipping Weight 374 lbs. / 170 kg
Tub Weight Filled 972 lbs. / 441 kg
Gallons to Overflow 102 gal. / 386 L
Gallons to Operate
69 gal. / 261 L
electRIcal SPecIfIcatIonS:
Pump 2 HP; 12 AMP; 110V
Inline Heater 1.5 kW; 12.5 AMP; 110V
Requirement 1-15 AMP 2 pole, separate circuit
required protected with Class A GFCI
Blower 1 HP; 10.5 AMP; 110V
Requirement 1-15 AMP 1 pole, separate circuit
required protected with Class A GFCI
This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
This unit is not recommended for shower installations.
This unit has a 3/4” female waterfall fill spout connection.
fax-on-Demand
Document # 1117
•
Available without fast-fill waterfall spout
- See Price List for Details
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
•
Hand Held Jet - Chrome or Polished Brass
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
INFINITy 3
Pump
Fill Spout Location
(not shown)
no alternate pump location available.
Blower
37”
71 1/2”
26 1/4” 30 3/4”
23 1/4”
23”
1 3/8”
10 1/2”
44”
18”
20”
Back Angle 33˚
StanDaRD equIPMent:
16 Hydrotherapy Jets including:
- 12 Shiatsu Back Jets
- 2 Rotary Massage Foot Jets
- 2 Full Size Pressure-Flo Hydrotherapy Jets
air Bath System:
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
aquatic quality features:
- 2 HP Run-Dry Pump
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- Shiatsu Electronic Control Panel with Preprogrammed Jet Sequencer
- Bath-Side Electronic Control Panel with Temperature Display
- Pulsating Neck Jet Pillow
- Reclining Lounge Seat and 2 Arm Rests
- Integrally Molded Fast-Fill Waterfall Spout/Optional
- please specify on order (valves not included)
- Chromatherapy
- Slip Resistant Floor
- Adjusta-Level Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
*available without fast-fill waterfall spout.
