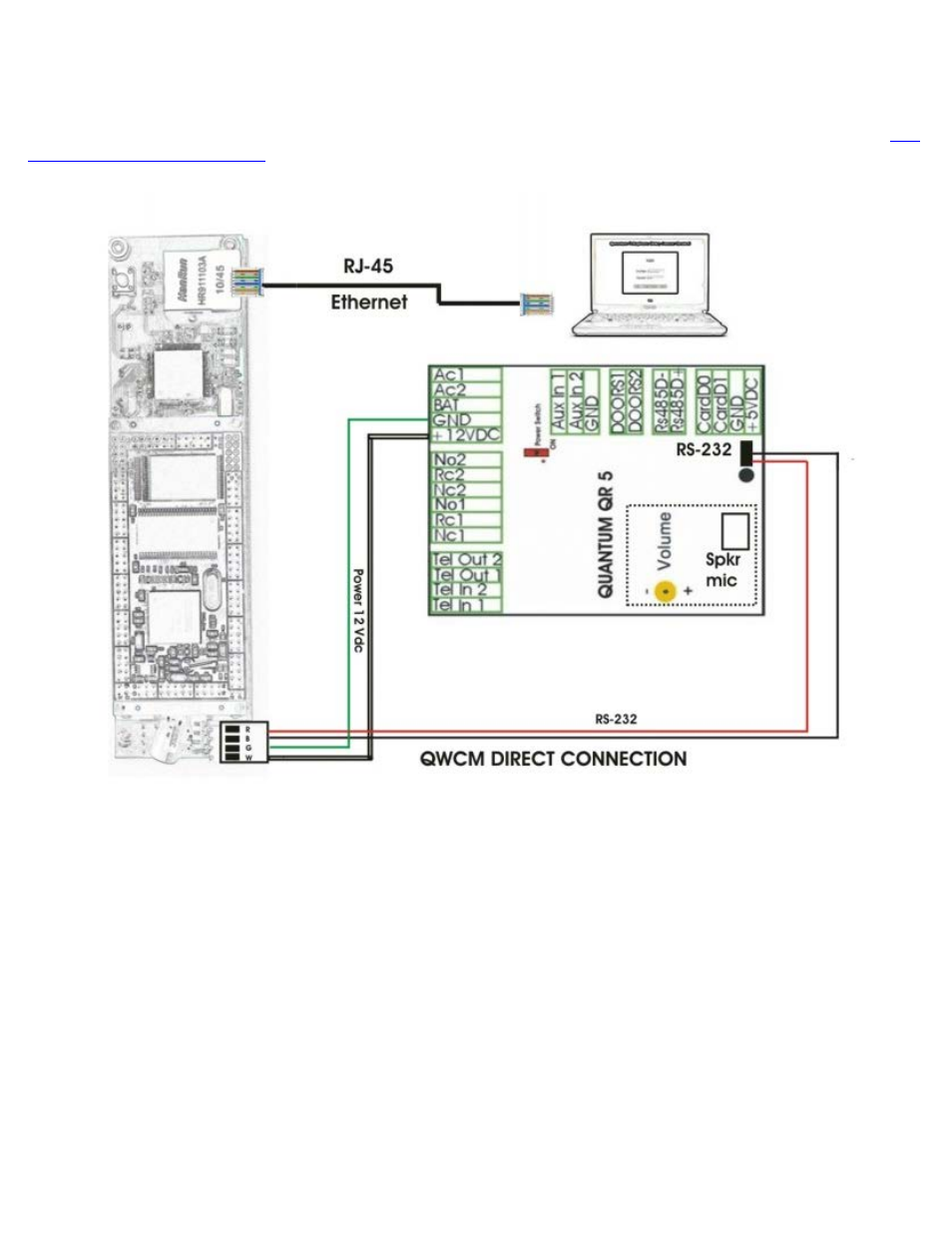

2.2 QWCM Direct Connection
Direct connection means the QWCM can be directly connected to your desktop or laptop via Ethernet
connection. See diagram below. You must set-up the computer network to communicate with the QWCM. See
default setting on section 2.1
2.3 QWCM Local Area Network (LAN)
You must have a local area network with one available Ethernet port for each of the QWCM. Contact your IT
department for the router configuration set-up. See diagram below for typical LAN connection.
