Nova-Tech Pulsafeeder 5-Function Valve - Manual (Page 4)

L9403700-000 Revision F
4
12
11
6
4
2
3
HARDWARE ASS'Y
DETAIL
SECTION "A-A"
18
6
13
14 11
12
1
2
3
"A"
"A"
C D
BLEED PUMP
OFF
17
16
4
5
7
9
10
8
B A
ON
22
OUTLET
INLET
R
E
T
U
R
N
1. PRESSURE RELIEF
2. BACK PRESSURE
3. ANTI-SYPHON
4. BLEED
5. DRAIN
VALVE
FUNCTIONS:
NORMAL
PUMPING
A B
C D
FUNCTION 1 FUNCTION 4
FUNCTION 2 FUNCTION 5
FUNCTION 3
A B
D C
FUNCTION 3 FUNCTION 1
FUNCTION 4
15 24

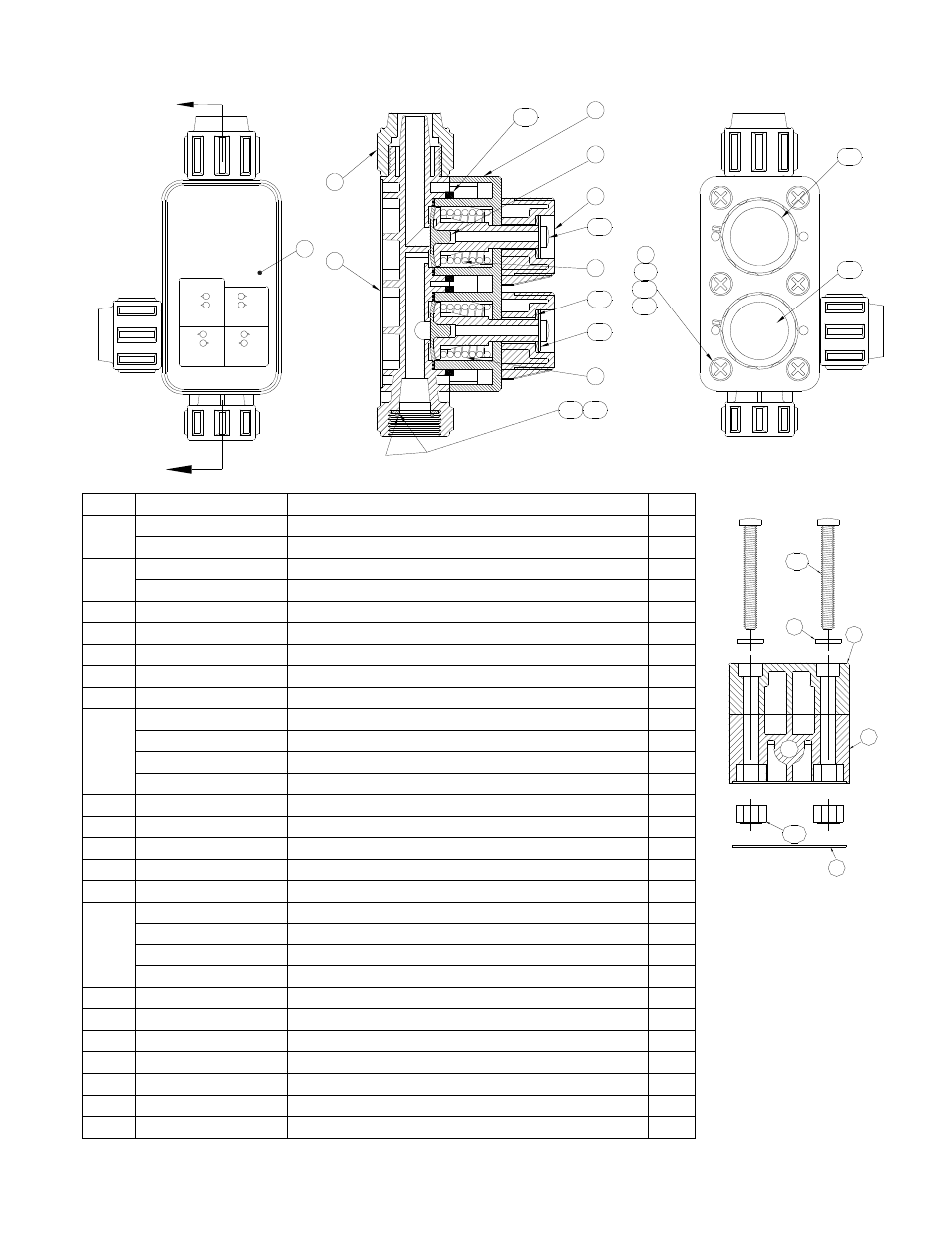

5-FUNCTION VALVE ASSEMBLY
ITEM PART # DESCRIPTION QTY
1
L1100300-PVD NUT (PVD), .38in TUBE COUPLING 2
L1100400-PVD NUT (PVD), .50in TUBE COUPLING 2
2
L1104000-PVD BODY (PVD), .38in TUBE VALVE 1
L1104100-PVD BODY (PVD), .50in TUBE VALVE 1
3 L1704500-000 LABEL, 5-FUNCTION INSTRUCTION DECAL 1
4 L1104200-PVD BODY (PVD), BLOCK 1
5 L0301900-000 DIAPHRAGM AS'Y 2
6 L9805001-188 FW (SST) #10 .403X.203X.04 6
7 L1900600-FPP KNOB (FPP), ADJUSTMENT 2
8
L1104400-000 SPRING, P.R.V. 40-PSI (BLACK) 1
L1104500-000 SPRING, P.R.V. 100-PSI (BLUE) 1
L1104600-000 SPRING, P.R.V. 150-PSI (GREEN) 1
L1104700-000 SPRING, P.R.V. 250-PSI (RED) 1
9 L1104400-000 SPRING, P.R.V. 40-PSI (BLACK) 1
10 L9804600-188 WASHER (SST), FLAT 2
11 L9804700-188 SCREW (SST), #10-32x1.50-lg.FILLISTER PHIL. 6
12 L9809700-188 NUT (SST), #10-32 x .25 thk. HEX 6
13 L1701600-000 LABEL, KNOB, BLACK 1
14
L1701600-000 LABEL, KNOB 40-PSI (BLACK) 1
L1701601-000 LABEL, KNOB 100-PSI (BLUE) 1
L1701602-000 LABEL, KNOB 150-PSI (GREEN) 1
L1701603-000 LABEL, KNOB 250-PSI (RED) 1
15 L1501200-VTN GASKET (VTN), O-RING, 2-013 1
16 06-008-26-E SCREW (SST), #8 x 1.0in.-lg. TYPE-A PHP 2
17 L9904400-188 WASHER (SST), CURVED SPRING 3
20 L9404500-000 MANUAL, 5-FUNCTION VALVE 1
21 L1715xxx-005 LABEL, DECAL 5-FUNCTION VALVE 1
22 L1504100-000 O-RING, .989 X 1.121 X .066 VITON 2
24 J27903 GSK (TFE) .05X.455X.69 1
