L9403700-000 Revision F
3

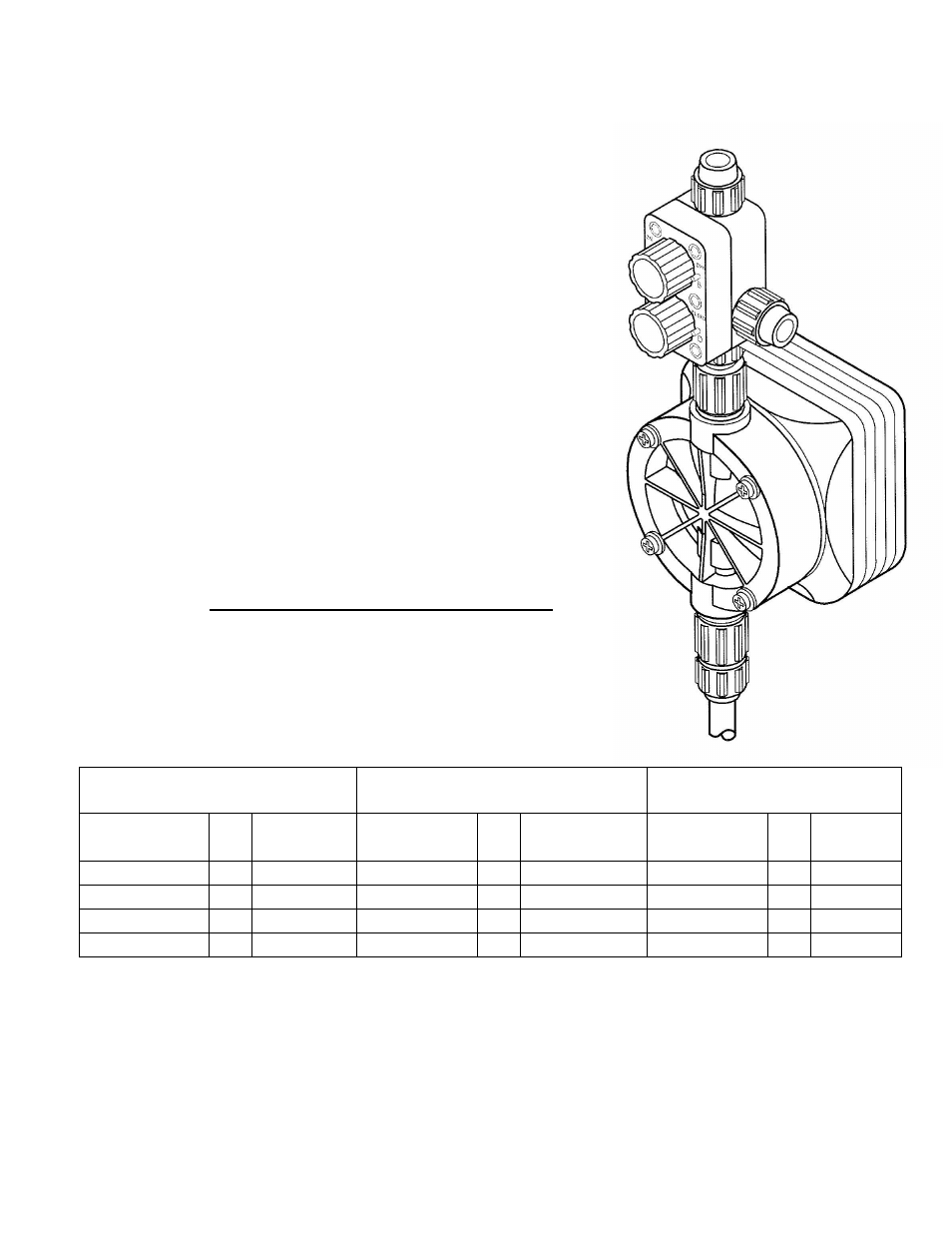

5-FUNCTION VALVE
SPECIFICATIONS:
Material of construction:
Valve body: Polyvinylidene Fluoride (PVDF)
Diaphragm: PTFE faced Hypalon
O-rings: TFE
Hardware: 18-8 Stainless Steel (recessed)
Maximum Flow: 240-GPD
Maximum Viscosity: 1000-CPS
Pressure Relief settings: 40-PSI (approximately 50)
100-PSI (approximately 140)
150-PSI (approximately 200)
250-PSI (approximately 300)
Note: Pressure relief may occur at 50% above maximum
pressure rating of the valve assembly.
Connections:
.25in.-NPT (male)
.38in.-I.D. x .50in.-O.D-TUBING
.25in.-I.D. x .38in.-O.D.-TUBING
G-1/2-A (metric)
METRIC TUBING COUPLING NUT KITS
4x6mm-Tubing
L9909100-HPV
4x10mm- Tubing L9909200-HPV
6x10mm- Tubing L9909201-HPV
6x12mm- Tubing L9909300-HPV
10x14mm- Tubing L9909400-HPV
10x16mm- Tubing L9909401-HPV
.25 in. - MALE NPT CONNECTION
.38 IN. - O.D. TUBING
CONNECTION
.38 IN. - O.D. TUBING
CONNECTION
MODEL # PSI
VLV BODY
MATERIAL
MODEL # PSI
VLV BODY
MATERIAL
MODEL # PSI
VLV BODY
MATERIAL
L380BT02-PVD 40 PVDF L380BT01-PVD 40 PVDF L380BT03-PVD 40 PVDF
L380DT02-PVD 100 PVDF L380DT01-PVD 100 PVDF L380DT03-PVD 100 PVDF
L380FT02-PVD 150 PVDF L380FT01-PVD 150 PVDF L380FT03-PVD 150 PVDF
L380KT02-PVD 250 PVDF L380KT01-PVD 250 PVDF L380KT03-PVD 250 PVDF
