4. Installation
DIAGRAMS OF THE STERILIZATION PROGRAMMES
APPENDIX 2
PROGRAM
Temperature
(°C)
Pressure
(PSI)
Holding
time
(min.)
To
tal
time
(min.)
TYPE
MAXLOAD
(kg)
UNWRAPPED
134
121
134
121
30
16
30
16
4
15
6
15
12~30
30~45
30~40
35~50
WRAPPED
U n w r a p p e d s o l i d
m a t e r i a l
Unwrapped hollow
material
5.00
5.00
5.00
4.00
<100 0 15 DRY ONLY
Single-wrapped solid
material
Instructions manual Instructions manual
LIQUID
121
134 30
16
12
30
30~65
45~65
Wrapped liquid
Wrapped liquid 0.50
0.50
*
*
*
*
*
Ensure that the sterilizer is installed with 2.5in. (10cm) ventilation space
on all sides of the sterilizer, and 5 in. (20cm) on top side. The clearance
required to open the door is 15.5in. (40cm).
The sterilizer should be placed on a level worktable.
Do not cover or block the door, ventilation or radiation openings on the
sterilizer.
Do not install the sterilizer near a sink or in a location where it is likely to
be splashed.
Do not install the sterilizer nearby a heat source.

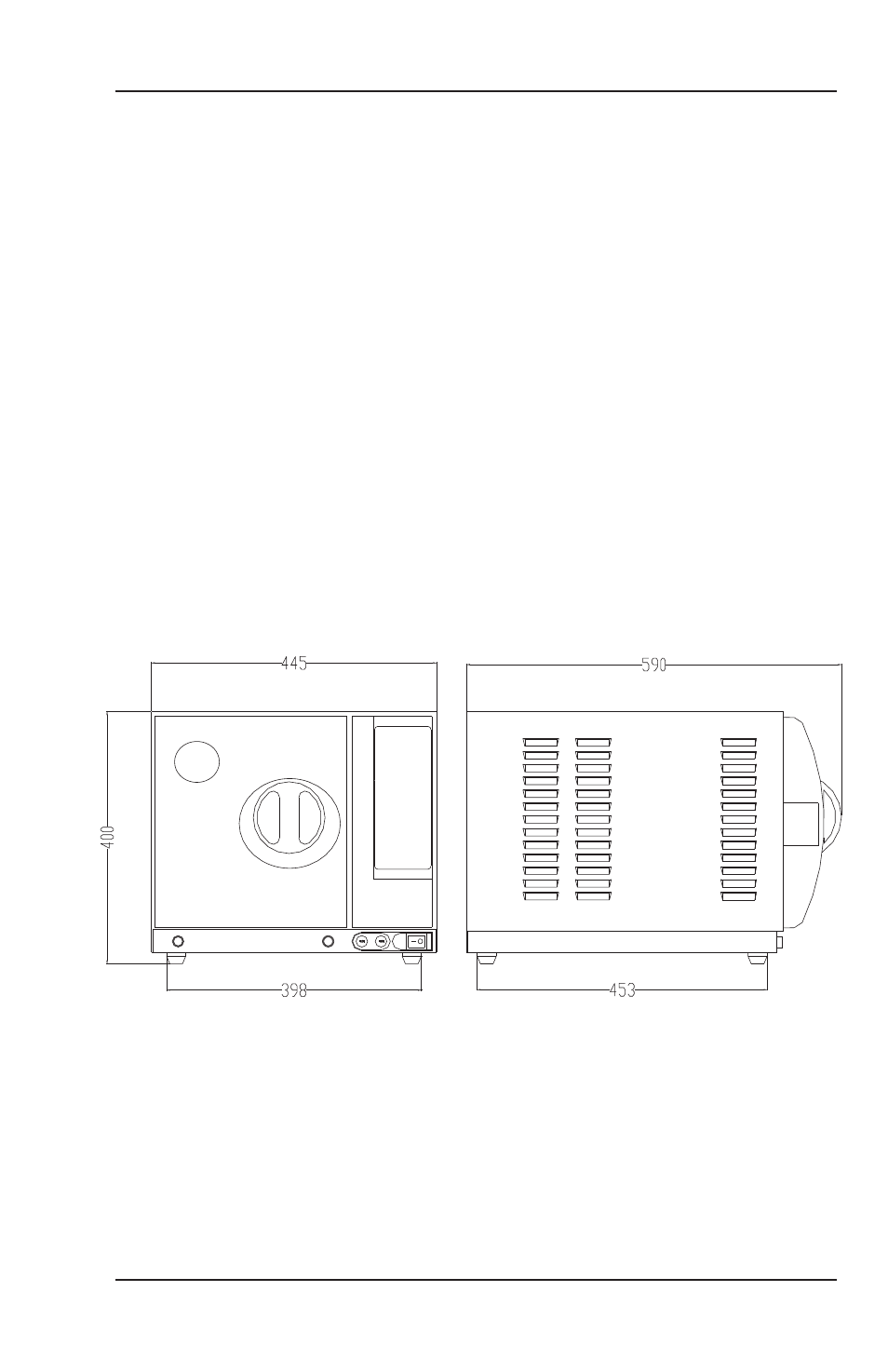

Above dimensions are shown in mm.
The max. temperature of the 134 C sterilization cycle is 136C
The max. temperature of the 121 C sterilization cycle is 123C
