1 - Installation

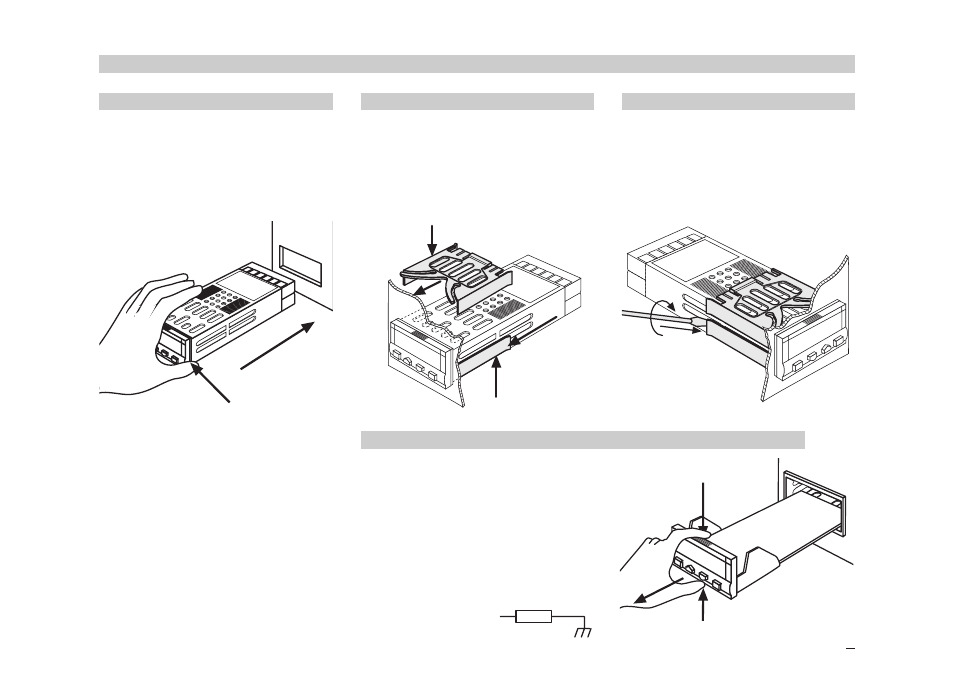

1.5.1 INSERT THE INSTRUMENT
1 Prepare panel cut-out
2 Check front panel gasket posi-
tion
3 Insert the instrument through
the cut-out
1.5 PANEL MOUNTING
1.5.2 INSTALLATION SECURING
1 Position the mounting clamps
2 Push the mounting clamps
towards the panel surface to
secure the instrument
1
3
2
1.5.3 CLAMPS REMOVING
1 Insert the screwdriver in the clips
of the clamps
2 Rotate the screwdriver
1
2
1.5.4 INSTRUMENT UNPLUGGING
B
1 Push and
2 pull to remove the instrument
Electrostatic discharges can dam-
age the instrument
Before removing the instrument the
operator must discharge himself
to ground
