4 - Operations
4 OPERATIONS

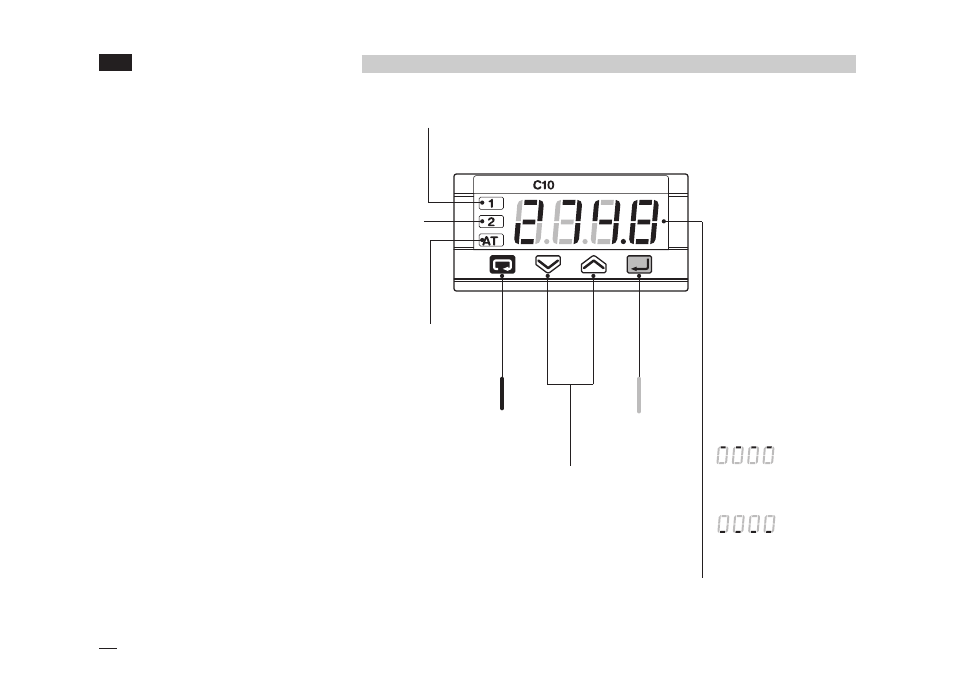

4.1 KEYPAD COMMANDS AND DISPLAY
Values
modification
Enter key for
selection and
value setting
confirmation
Menu
access
OP1 output ON
(red)
OP2
output
ON
(red)
Tuning
in progress
(green)
• PV control input
(operator mode)
(in engineering units)
when the measured
value is greater than
sensor high range
when the measured
value is less than the
sensor low range
• Code and/or value of
the Parameter
(programming mode)
