1 - Installation

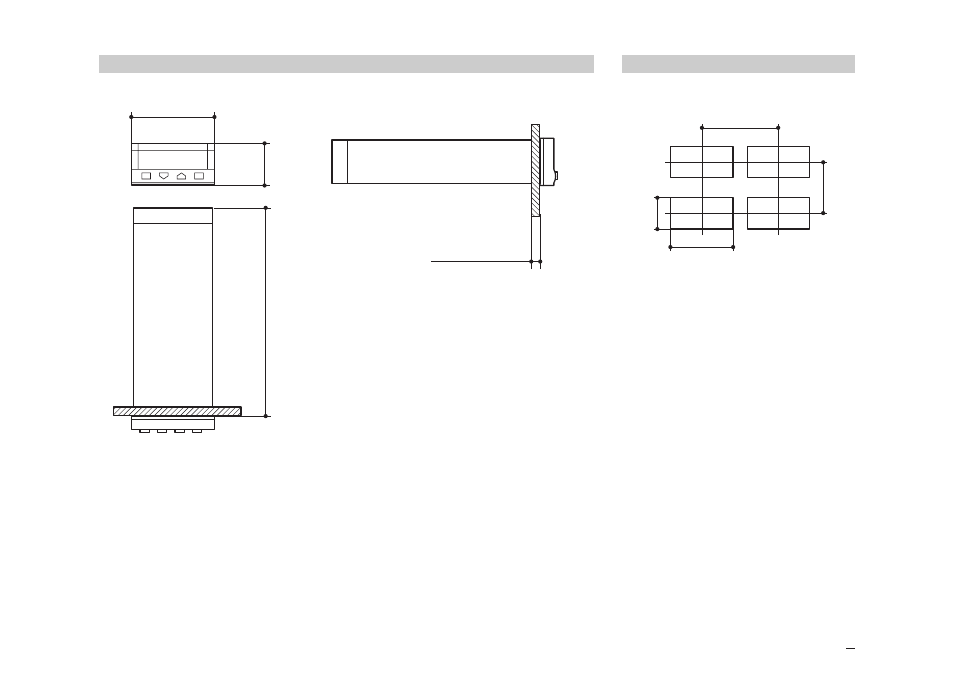

1.2 DIMENSIONAL DETAILS
48 mm
1.89 in
25 mm
0.99 in
120 mm
4.72 in
20 mm max
0.79 in max
1.3 PANEL CUT-OUT
65 mm min
2.56 in min
42
mm
min.
1.65
in
min.
22.2
+0.3
mm
0.87
+0.01
in
45 +0.6 mm
1.78 +0.023 in
