2 - Electrical connections
2.3.5 OP4 OUTPUT (option)
B
2.3.6 SERIAL COMMUNICATIONS (option)
B

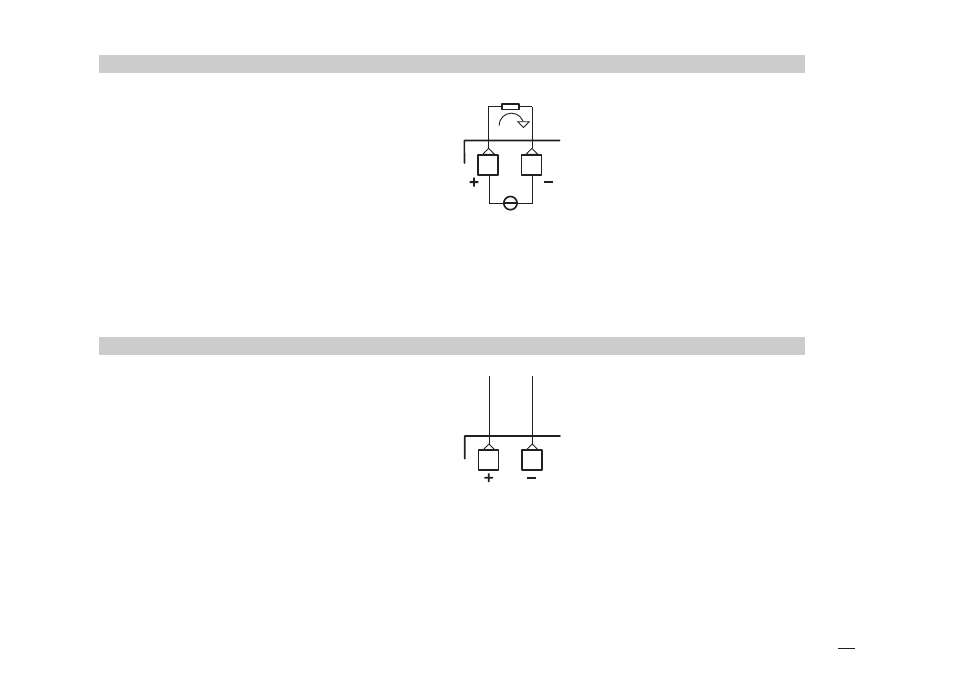

PV retransmission
• Galvanic isolation
500V
~
/1 min.
• 0/4...20mA, 750
Ω
/ 15V– max
• Galvanic isolation 500V
~
/1 min
• Compliance to the EIA RS485
standard for Modbus/Jbus
A
Please, read the user
instructions on the
“C10 controller
MODBUS/JBUS protocol”
RX
TX
7
8
Load
7
8
mA
