50

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

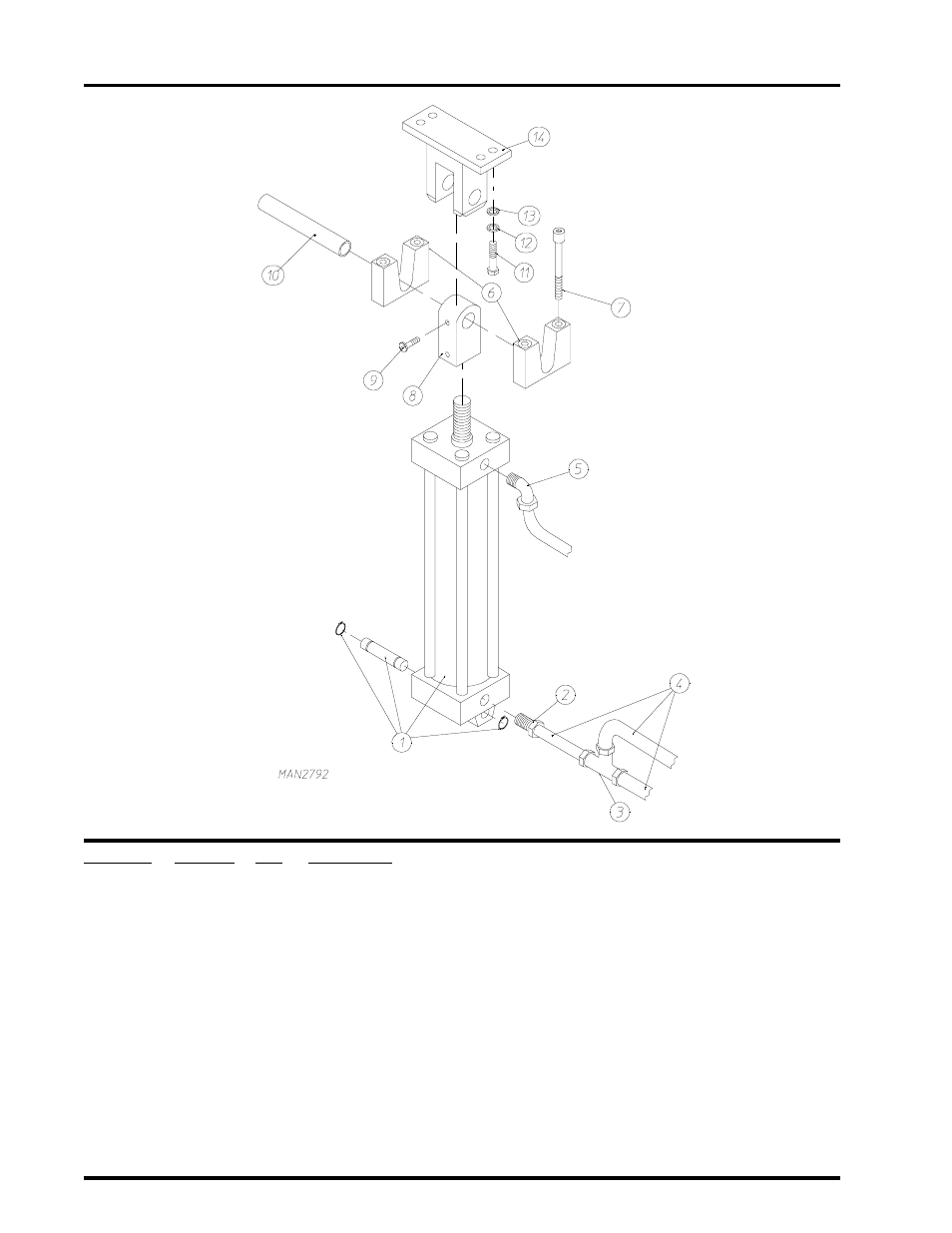

Tilt Piston Mount Assembly

Illus. No.

Part No.

Qty

Description

1

100562

1

Piston (5" Bore, 15" Stroke)

2

143283

1

3/8" Poly x 3/8" M.P.T. Straight Connector

3

143221

1

3/8" Poly Tee, Brass

4

143120

20

3/8" Poly Tubing (Sold by the foot)

5

143213

1

3/8" Poly x 3/8" M.P.T. Elbow, Brass

6

334309

2

Cylinder Pin Nylon Bumper

7

150435

4

3/8-16 x 3" Socket Head Cap Screw

8

100553

1

Rod Eye

9

154315

2

1/2-20 x 1-1/8" Socket Head Set Screw

1 0

331543

1

1" Dia. Pin

1 1

150599

4

1/4-20 x 1-1/4" Hex Head Machine Bolt

1 2

153026

4

1/2" Lock Washer

1 3

153011

4

9/16" I.D. Flat Washer

1 4

881170

1

Clevis Assembly
