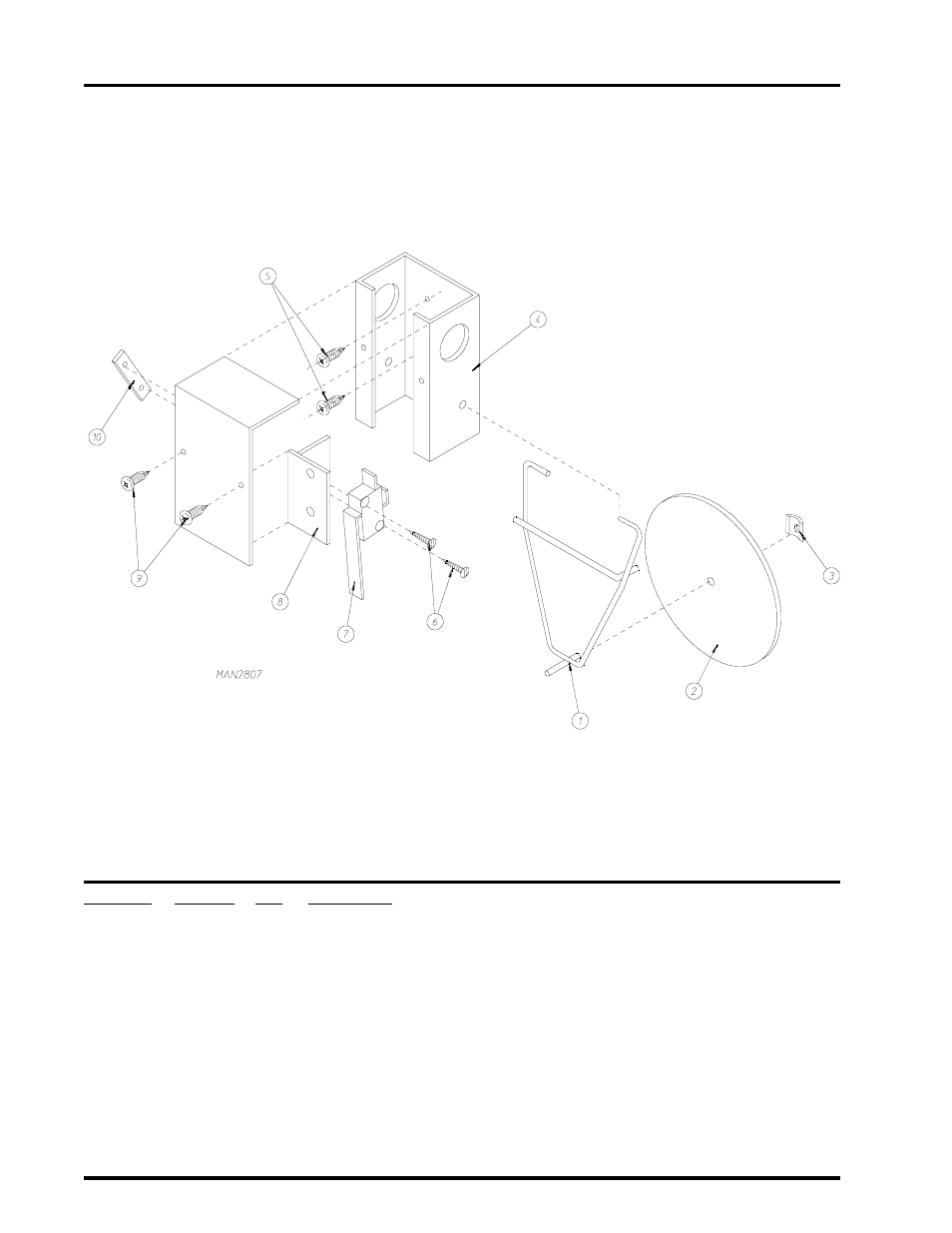

Sail Switch Assembly

Illus. No.

Part No.

Qty

Description

1

105500

1

Sail Switch Actuator Rod

2

332689

1

Sail Switch Damper

3

154002

1

1/8" Push On Fastener

4

802800

1

Sail Switch Box with Cover and Bracket ONLY (items 4, 8, and 9)

881376

1

Sail Switch Box Assembly Complete
(includes illus. nos. 1 through 4 and 6 through 10)

5

150300

2

#10 x 1/2" Hex Washer Head TEK Screw

6

150303

2

#4 x 3/4" Pan Head Machine Screw

7

122404

1

Sail Switch

8

802799

1

Sail Switch Box Cover and Bracket ONLY

9

150309

2

#10-16 x 1/2" Hex Head Crimptite Screw

1 0

154004

1

Twin Speed Nut
