Aquatic Century 24 AI7242RC24 - Manual

21
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

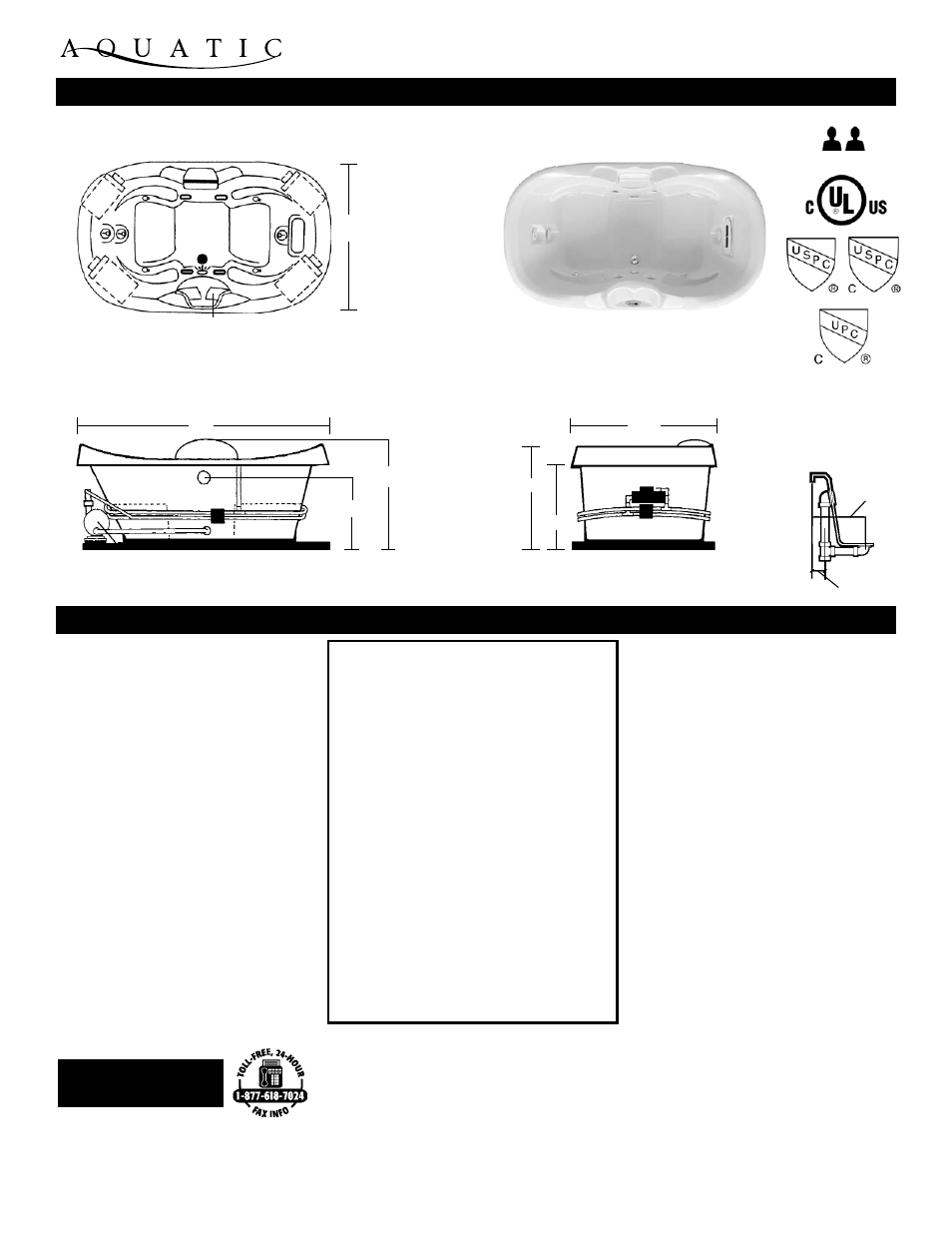

Rough-In Plumbing
Measurements
CENTury SErIES
Model # AI7242RC24
CENTury 24
GeneRal SPecIfIcatIonS:
Tub Size 69” x 41 1/4” x 27 3/4”
175 cm x 105 cm x 70 cm
Bathing Well 43” long
25” wide
23 3/4” interior depth
Shipping Weight 257 lbs. / 116 kg
Tub Weight Filled 987 lbs. / 448 kg
Weight w/Equipment 174 lbs. / 79 kg
Gallons to Overflow 98 gal. / 371 L
Gallons to Operate 1 bather: 79 gal. / 299 L
2 bathers: 60 gal. / 227 L
electRIcal SPecIfIcatIonS:
Pump 2 HP; 11 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Inline Heater 1.5 kW; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
This unit has a 3/4” female waterfall fill spout connection.
•
Available without Fast-Fill Waterfall Spout
- See Price List for details
•
Comfort Pillow -- Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color
Matched (Bone, White and Biscuit Only)
• Hand Held Jet - Chrome or Polished Brass
•
Optional Pump Location
• Remote Pump Location
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
20 3/8”
27 3/4”
Two Person Bath
12 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 4 Pressure Plus Hydrotherapy Jets
- 3 Recessed Rotary Massage Jets
- 1 Recessed Fan Jet
aquatic quality features:
- 2 HP, 3-Speed Run-dry Pump
- Bath-Side Electronic Control Panel
- Integrally Molded Fast-Fill Waterfall Spout/Optional
- please specify on order (valves not included)
- Chromatherapy LED Lighting
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Extra Deep & Wide Contoured Lounge Seats
- Color Matched Grab Bar
- 4 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document # 1009
41 1/4”
Fill Spout
Location
69” 41 1/4”
22 1/2”
26 1/4”
6 1/4”
13 1/4”
*available without fast-fill waterfall spout.
1
1
4
2 3
