Hydraulic Power Supply and Controller

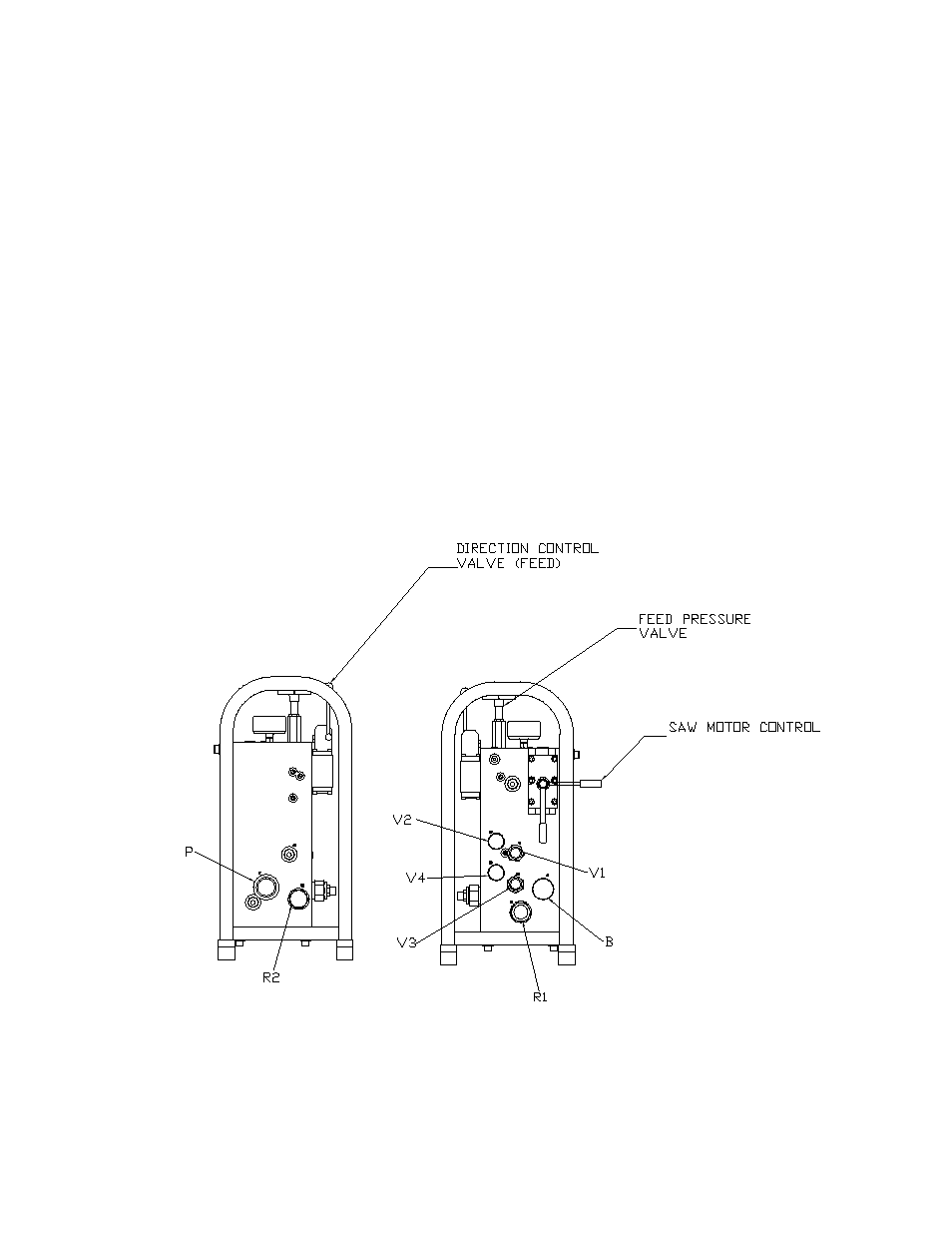

Connecting the hoses (FIG. 8)
Connect the supply hoses form the power pack to the P port and return hoses to
the R1 port of the BS-2. Take the hoses that are supplied with the BS-2 and
connect them as follows:
Take one set of the ¼” hoses with the straight ends. Connect the male
coupling to the V1 port on the BS-2 then connect the female coupling to
the V2 port directly across from it.
The other set of 1/4 lines are not used.
Take the 3/4 lines connect the male nipple to the R1port on BS-2 and
female coupling on hoses to the B port on BS-2
Connect large coupling to the proper fittings on the wire saw motor.
FIG. 8
