Description
Wire saw system
The "Safety Manual / System Description for Wire Saws" describes how to work safely with wire
sawing systems.

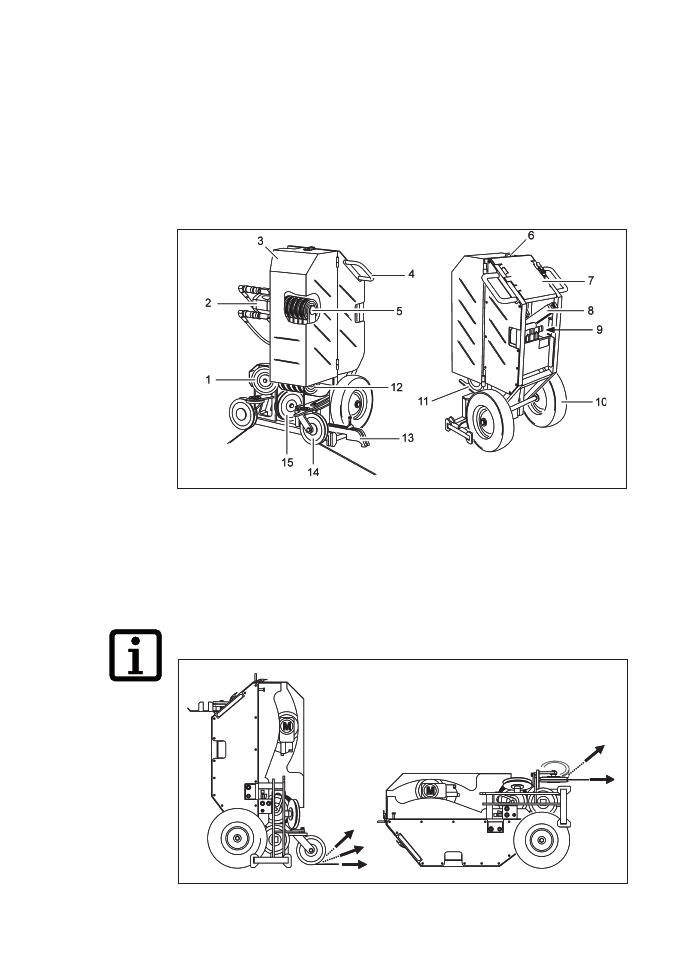

Components
1 Diverter roll 9 Securing clamp
2 Drive motor 10 Wheel
3 Safety cover 11 Swivel roll holder
4 Chassis (handle) 12 Diverter rolls
5 Drive roll unit 13 Securing clamp
6 Crane hook 14 Swivel roll
7 Working table, hinged 15 Diverter roll
8 Swivel arm
The SB wire saw can be operated vertically or horizontally.
